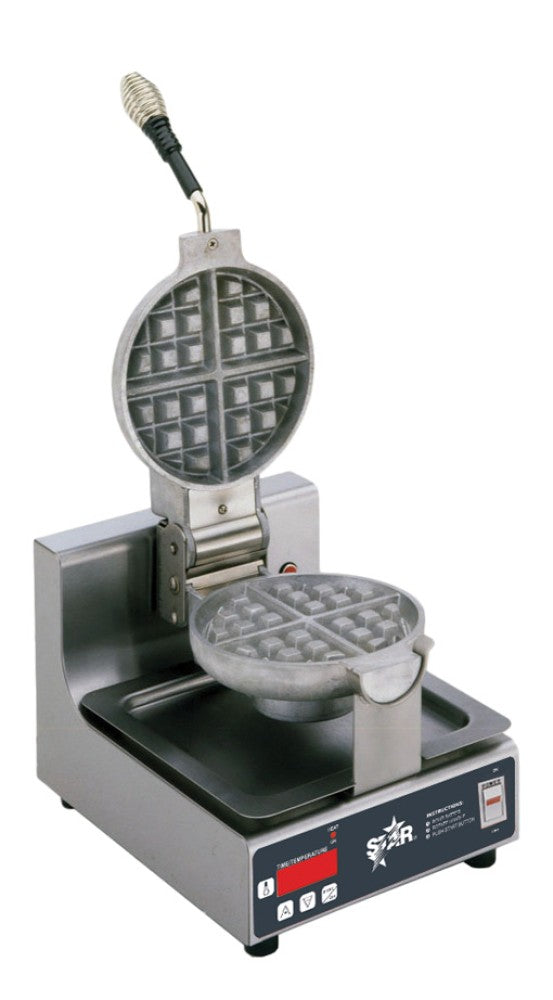

Star SWBB Single Belgian Waffle Baker, 7" Round Grid, Electronic Controls

The Star SWBB is a commercial single belgian waffle baker with one 7-inch round Belgian-style grid that bakes deep-pocket waffles. Elements are cast directly into the aluminum upper and lower grids, and programmable electronic controls with a timer, temperature display and end-of-bake alarm keep every batch consistent. It is available for 120V or 208-240V service; select the voltage above.

Cast-In Heating & Electronic Control

Because the heating elements are cast into both grids, heat reaches the batter evenly from top and bottom with no hot spots between element and plate. The energy-efficient cast aluminum grids heat up quickly and recover fast between waffles.

The programmable electronic control shows real-time grid temperature, times each bake and sounds an audible alarm at the end of the cycle, so staff can work other tasks without overbaking.

Why Operators Choose It

• Consistent results: Programmable electronic controls and timer.
• Even baking: Elements cast into the upper and lower 7" aluminum grids.
• Easy to monitor: Real-time temperature readout and end-of-bake alarm.
• Comfortable handling: Nickel-plated open-coil handle with heat-resistant coating.
• Durable build: Stainless steel top, front, sides and drip trays; stainless hinge with heavy-duty bearing; made in the USA.

Controls

Programmable electronic controls with bake timer, real-time temperature display and audible end-of-cycle alarm.

Ideal For

Hotels and breakfast buffets, cafés, dessert shops, campus dining and brunch restaurants.

Specifications

Electrical Options

Installation & Utility Requirements

The baker plugs in with a 4-foot cord: 120V: 900 W, 7.5 A, NEMA 5-15P; 208-240V: 686 / 912 W, 3.3 / 3.8 A, NEMA 6-15P.

Allow headroom for the lid to open to 23 inches and set the unit on a level, heat-resistant counter.

What's Included

• Star SWBB waffle baker with cord and plug
• Stainless steel drip tray

Factory Options & Accessories (Additional Cost)

• Belgian or standard grids, single or dual (other models)

Warranty

1-year parts and labor warranty from Star.

Download the Star spec sheet (PDF)

Specifications per Star Manufacturing data; subject to change by the manufacturer.
