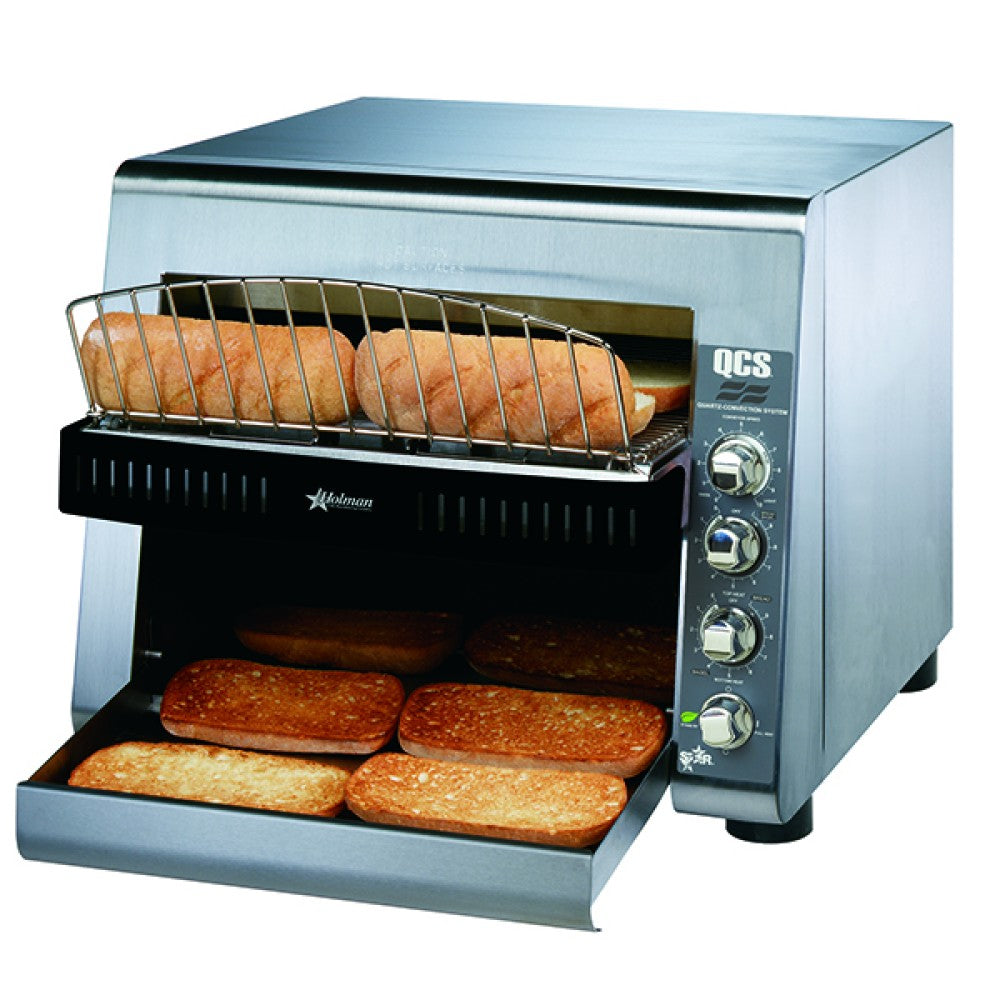

Star QCS3-950H Conveyor Toaster, 950 Slices/Hour, 3" Opening

The Star QCS3-950H is a countertop conveyor toaster that turns out up to 950 slices per hour on a 14" wide belt (3 slices side by side) through a 3" product opening. Quartz infrared heaters provide top & bottom toasting, and a forced convection system keeps the exterior cool to the touch. It is available for 208V or 240V service; select the voltage above.

Quartz Heat & Forced Convection

Quartz infrared heaters reach operating temperature faster and toast more consistently than traditional sheathed elements. A forced convection system circulates pre-heated air into the toasting chamber, which raises productivity and keeps the cabinet cool, extending the life of critical components.

The 3-inch opening handles buns as well as bread. A heavy-duty motor with a drive chain and a belt tension system gives smooth, quiet, reliable conveyor operation, and a power saver switch cuts electricity use by 75% during slow periods.

Why Operators Choose It

• Throughput: Up to 950 slices per hour.
• Fast, even toasting: Quartz infrared heaters.
• Cool exterior: Forced convection system and a full-width coated front burn guard.
• Energy saving: Power saver switch reduces electricity consumption by 75%.
• Higher production: Extended load-up belt and a heated holding area for finished product.
• Protected components: Hi-limit switch prevents overheating.

Controls

Analog controls for conveyor speed and independent top and bottom heat, plus standby/power saver switch.

Ideal For

Hotels and breakfast buffets, cafés, delis, bagel shops, sandwich and burger restaurants, and campus or institutional foodservice.

Specifications

Electrical Options

Installation & Utility Requirements

The toaster ships with a cord and NEMA 6-20P plug and needs a matching receptacle at the voltage ordered (208V: 3,200 W, 15.9 A; 240V: 3,200 W, 13.8 A).

Set it on a level counter with room at the front for loading and at the discharge side for finished product. Keep the air intakes clear so the convection system can cool the cabinet.

What's Included

• Star QCS3-950H conveyor toaster with cord and plug
• Load-up rack
• Crumb tray

Factory Options & Accessories (Additional Cost)

• 230V export version

Warranty

1-year parts and labor warranty from Star.

Download the Star spec sheet (PDF)

Specifications per Star Manufacturing data; subject to change by the manufacturer.
