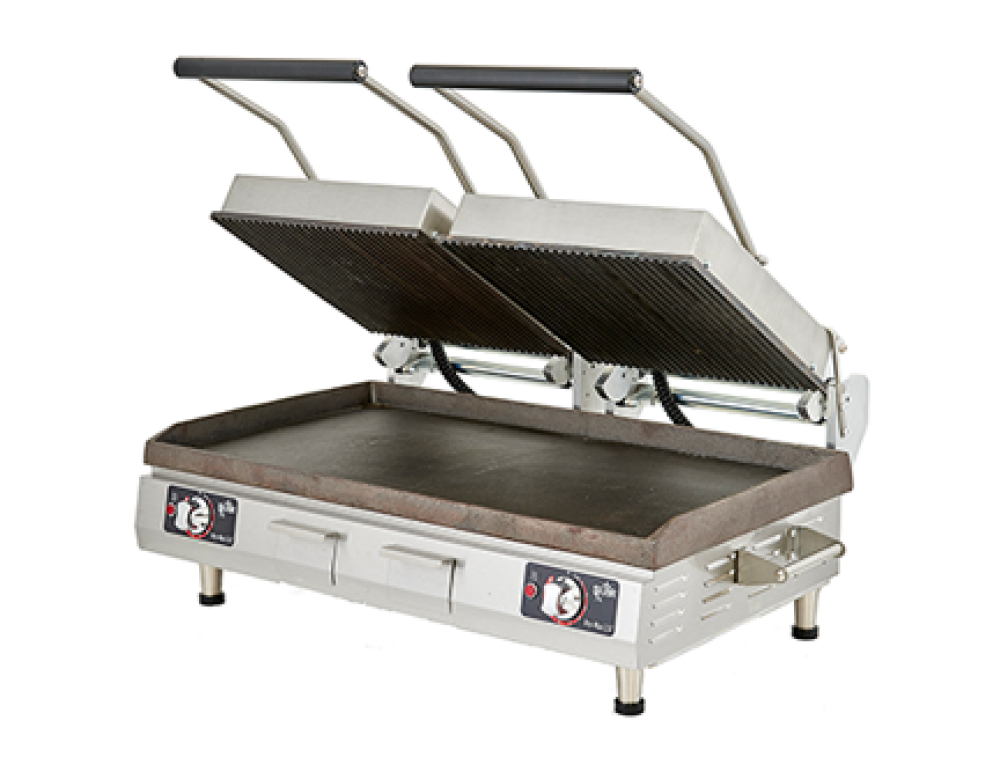

Star Pro-Max® 2.0 PSC28IGT 28" Double Panini Grill, Smooth Bottom / Grooved Top Cast Iron Plates, Analog Controls

The Star Pro-Max® 2.0 PSC28IGT is a 28-inch double panini grill with two independent cast iron upper platens over one 29.1" x 14.2" lower platen, a smooth lower plate and grooved upper plates. It cooks from 175°F to 550°F with an analog bulb-and-capillary thermostat and runs on 208/240V single-phase power.

High-Capacity Contact Cooking

Two upper platens, each 13.5" x 13.5", close on a shared lower platen, so one grill can press two batches of sandwiches at once or run one side while the other is idle. A heavy-duty counterbalance hinge keeps each platen easy to lift and lets it settle evenly on products up to 3 inches thick.

All cooking surfaces are cast iron, which stores heat and recovers quickly between loads; that matters on a high-volume sandwich line where platens are opened and closed constantly.

Why Operators Choose It

• Double capacity: Two 13.5" x 13.5" upper platens over a 29.1" x 14.2" lower platen.
• Heat retention: Cast iron cooking surfaces for fast recovery.
• Counterbalance hinge: Simple, durable hinge that lifts easily and closes evenly on products up to 3" thick.
• Controls: Analog Thermostat, 175°F to 550°F.
• Protected wiring: Heavy-gauge oil- and water-resistant conduit protects the electrical connections.
• Made in the USA: Stainless steel body built by Star in the United States.

Controls

Bulb-and-capillary thermostat, 175°F to 550°F.

Ideal For

High-volume sandwich shops, cafés, stadium and campus foodservice and QSR lines that press large numbers of paninis, wraps and grilled sandwiches.

Specifications

Installation & Utility Requirements

The grill ships with a 6-foot cord and a NEMA L6-30P locking plug and needs a 208V or 240V, 30-amp single-phase receptacle.

Place it on a sturdy, level, non-combustible counter that can carry about 190 lb, with clearance above for the platens to open to 27.1 inches.

What's Included

• Pro-Max® 2.0 PSC28IGT double panini grill with 6 ft cord and L6-30P plug
• Removable grease drawer

Factory Options & Accessories (Additional Cost)

• Smooth or smooth bottom/grooved top surfaces (other models)
• Electronic temperature control and timer, or electronic timer only (other models)

Warranty

1-year parts and labor warranty from Star.

Download the Star spec sheet (PDF)

Specifications per Star Manufacturing data; subject to change by the manufacturer.
