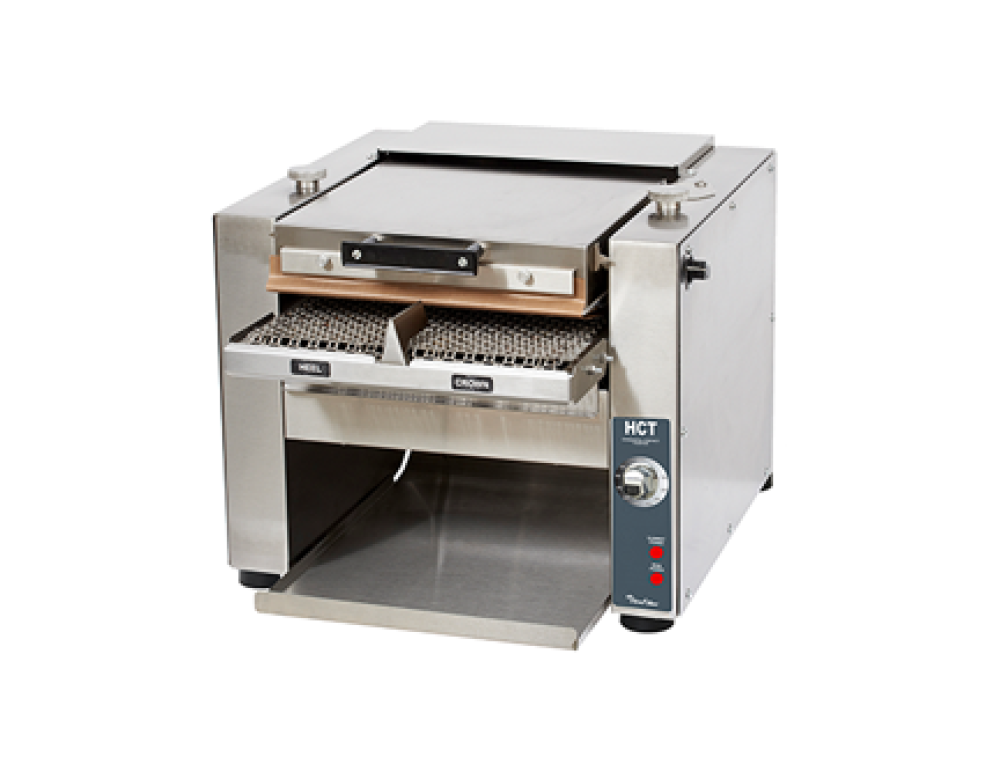

Star Ultra-Max® HCT13S Horizontal Contact Toaster, Silicone Belt, Analog Controls, 1,400 Buns/Hour

The Star Ultra-Max® HCT13S is a horizontal contact toaster that caramelizes up to 1,400 bun halves per hour. It uses a non-marking silicone conveyor belt and analog controls. It is available for 208V or 240V service; select the voltage above.

Contact Toasting

The conveyor carries each bun half across an aluminum toasting platen that spreads heat evenly across the full belt width, sealing the cut surface so sauces do not soak in. Infrared elements above the belt warm the crown and heel sides at the same time. The gap between belt and platen adjusts for any bun thickness.

An extended belt with a sloped platen makes loading easy, and the deep toasting return handles products up to 7 inches long. Non-stick PTFE sheets on the platen reduce cleaning, and the crumb tray and toast slide remove for cleanup. No ventilation hood is required.

Why Operators Choose It

• Throughput: Up to 1,400 bun halves per hour.
• Belt choice: Non-marking silicone belt.
• Even toasting: Aluminum platen heats the full belt width; supplemental heaters warm the crown and heel.
• Adjustable: Opening between belt and platen adjusts for any bun thickness.
• Easy cleaning: PTFE platen sheets, removable crumb tray and toast slide.
• Safe loading: Full-width front burn guard and cool-to-the-touch exterior; no hood required.

Controls

Analog controls for platen temperature and belt speed.

Ideal For

Burger restaurants, sandwich shops, stadiums and high-volume kitchens toasting hamburger and sandwich buns.

Specifications

Electrical Options

Installation & Utility Requirements

The toaster plugs into a single-phase receptacle matching its NEMA 6-20P plug at the voltage ordered (208V: 2,550 W, 12.25 A; 240V: 2,650 W, 11 A).

Set it on a level counter with room at the front for loading and at the discharge end; no ventilation hood is required.

What's Included

• Ultra-Max® HCT13S contact toaster with cord and 6-20P plug
• Non-stick platen sheets
• Crumb tray and toast slide

Factory Options & Accessories (Additional Cost)

• Butter wheels
• Load trays
• Replacement non-stick coated sheets

Warranty

1-year parts and labor warranty from Star.

Download the Star spec sheet (PDF)

Specifications per Star Manufacturing data; subject to change by the manufacturer.
