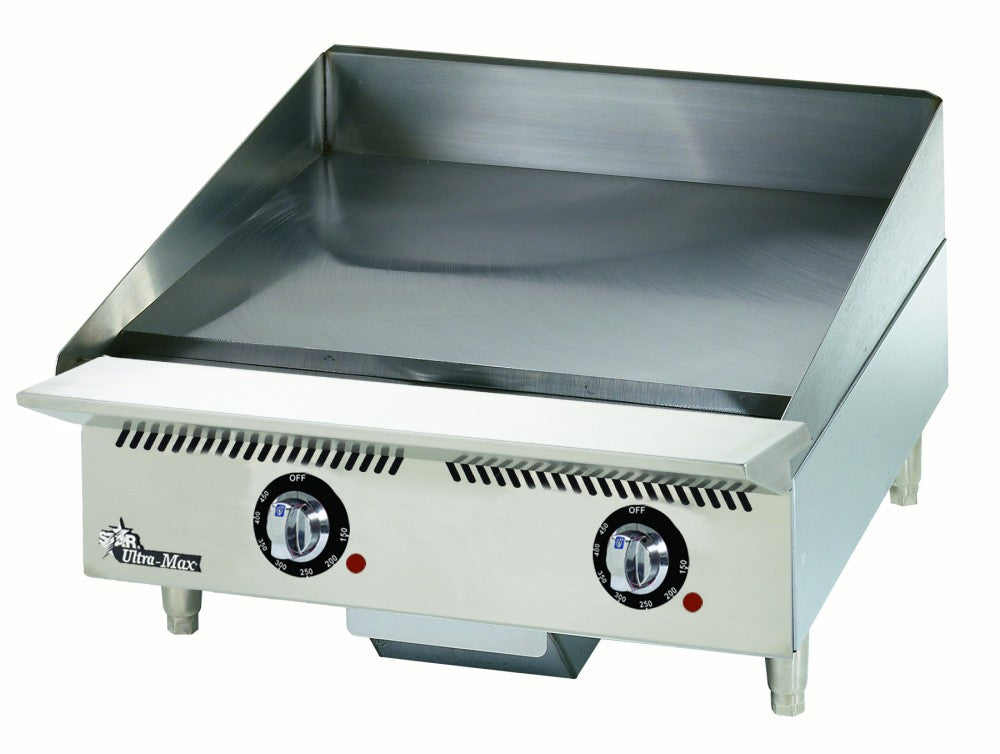

Star Ultra-Max® 824TCHSA 24" Gas Griddle, Snap-Action Thermostats, 1" Chrome Plate, 60,000 BTU

The Star Ultra-Max® 824TCHSA is a 24-inch countertop gas griddle built in the USA for high-output cooking lines. It has a 1-inch thick chrome-surfaced T1 steel plate divided into 2 independently controlled 12-inch zones, each fired by its own 30,000 BTU burner for a total of 60,000 BTU. Every zone is regulated by a mechanical snap-action thermostat adjustable from 150°F to 550°F. It runs on natural gas or liquid propane; select the gas type above.

Heat Zones & Temperature Control

Each 12-inch section has its own burner and its own mechanical snap-action thermostat. The thermostat sensor is embedded 3/16 inch (5 mm) below the cooking surface, so it responds to the actual plate temperature and calls for heat as soon as cold product lands on the griddle. The adjustable range runs from 150°F (66°C) to 550°F (288°C).

Because the zones are independent, one griddle can sear burgers in one section while holding eggs or pancakes at a lower setting next to it. The 1-inch thick plate stores a large amount of heat, which keeps recovery quick during rushes and evens out the surface temperature across each zone.

The chrome version adds a 0.001-inch (0.025 mm) hexavalent chrome surface over ultra-tough T1 steel. Chrome plates are only offered with thermostatic controls.

Why Operators Choose It

• Independent zones: 2 heat zones, one burner and one control every 12 inches, so different products cook side by side at different temperatures.
• Heavy plate: 1" chrome-surfaced T1 steel plate holds heat for fast recovery and even cooking.
• Serious input: 30,000 BTU per 12-inch section (60,000 BTU total) with standing pilot ignition.
• Easy cleanup: 4.375-inch rear and side splash guard and a 3.5-inch by 1-inch front grease trough draining to a grease drawer.
• Built to last: Welded steel frame with a corrosion-resistant stainless steel exterior and heavy-duty metal knobs.
• Made in the USA: Built by Star Manufacturing in the United States.

Controls

Mechanical snap-action thermostats, one per 12-inch section, each with a sensor embedded 3/16 inch below the cooking surface. Set point range 150°F to 550°F.

Ideal For

Diners, breakfast and brunch operations, burger and sandwich lines, hotels, catering kitchens and institutional foodservice that need a heavy countertop griddle with several temperature zones.

Specifications

Installation & Utility Requirements

Connect to a 3/4-inch NPT male gas inlet. The griddle is built for the gas type selected at order (natural gas or liquid propane); have a qualified gas technician make the connection and check the appliance pressure on start-up.

Keep the sides and back at least 6 inches (152 mm) from any wall or surface, combustible or non-combustible. Use the supplied 4-inch legs on a non-combustible countertop, or mount the griddle on a 27-inch (686 mm) stand when the floor is combustible. Install under a ventilation hood as required by local codes. If the stand is on casters, use a flexible gas connector with a restraining device.

What's Included

• Ultra-Max® 824TCHSA 24" gas griddle, set up for the gas type ordered
• 4" adjustable legs
• 1 stainless grease drawer

Factory Options & Accessories (Additional Cost)

• Steel equipment stand with legs or casters

Warranty

2-year parts and labor warranty from Star.

Download the Star spec sheet (PDF)

Specifications per Star Manufacturing data; subject to change by the manufacturer.
