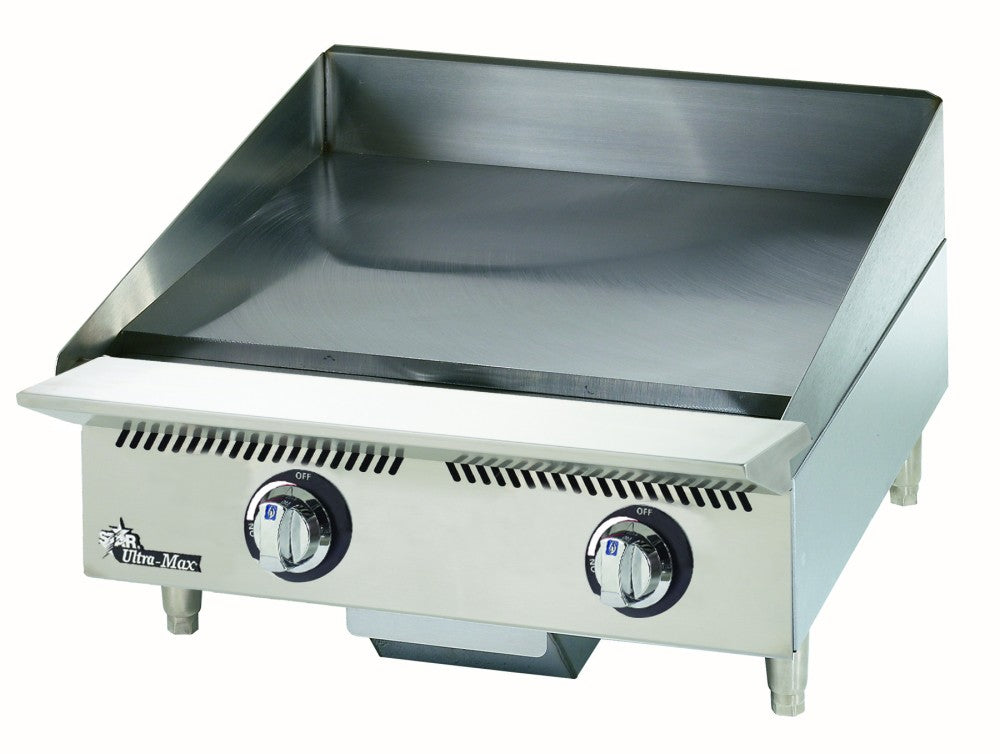

Star Ultra-Max® 824MA 24" Gas Griddle, Manual Controls, 1" Steel Plate, 60,000 BTU

The Star Ultra-Max® 824MA is a 24-inch countertop gas griddle built in the USA for high-output cooking lines. It has a 1-inch thick polished steel plate divided into 2 independently controlled 12-inch zones, each fired by its own 30,000 BTU burner for a total of 60,000 BTU. Each zone has its own manual control valve for direct, immediate flame adjustment. It runs on natural gas or liquid propane; select the gas type above.

Heat Zones & Temperature Control

Each 12-inch section has its own 30,000 BTU burner and its own manual control valve, so the cook sets the flame for every zone directly. Manual valves react instantly and have few parts to maintain, which suits operators who run the griddle at steady, familiar settings all day.

Because the zones are independent, one griddle can sear burgers in one section while holding eggs or pancakes at a lower setting next to it. The 1-inch thick plate stores a large amount of heat, which keeps recovery quick during rushes and evens out the surface temperature across each zone.

Why Operators Choose It

• Independent zones: 2 heat zones, one burner and one control every 12 inches, so different products cook side by side at different temperatures.
• Heavy plate: 1" polished steel plate holds heat for fast recovery and even cooking.
• Serious input: 30,000 BTU per 12-inch section (60,000 BTU total) with standing pilot ignition.
• Easy cleanup: 4.375-inch rear and side splash guard and a 3.5-inch by 1-inch front grease trough draining to a grease drawer.
• Built to last: Welded steel frame with a corrosion-resistant stainless steel exterior and heavy-duty metal knobs.
• Made in the USA: Built by Star Manufacturing in the United States.

Controls

Manual gas control valves, one per 12-inch section, with standing pilot ignition. The cook adjusts flame height directly for each zone.

Ideal For

Diners, breakfast and brunch operations, burger and sandwich lines, hotels, catering kitchens and institutional foodservice that need a heavy countertop griddle with several temperature zones.

Specifications

Installation & Utility Requirements

Connect to a 3/4-inch NPT male gas inlet. The griddle is built for the gas type selected at order (natural gas or liquid propane); have a qualified gas technician make the connection and check the appliance pressure on start-up.

Keep the sides and back at least 6 inches (152 mm) from any wall or surface, combustible or non-combustible. Use the supplied 4-inch legs on a non-combustible countertop, or mount the griddle on a 27-inch (686 mm) stand when the floor is combustible. Install under a ventilation hood as required by local codes. If the stand is on casters, use a flexible gas connector with a restraining device.

What's Included

• Ultra-Max® 824MA 24" gas griddle, set up for the gas type ordered
• 4" adjustable legs
• 1 stainless grease drawer

Factory Options & Accessories (Additional Cost)

• Steel equipment stand with legs or casters

Warranty

2-year parts and labor warranty from Star.

Download the Star spec sheet (PDF)

Specifications per Star Manufacturing data; subject to change by the manufacturer.
