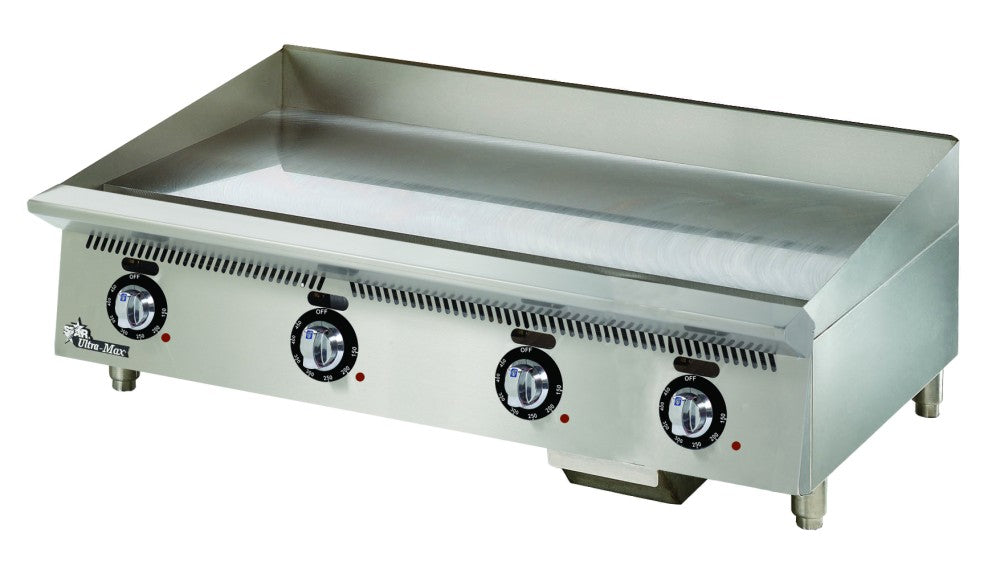

Star Ultra-Max® 748TCHSA 48" Electric Griddle, Snap-Action Thermostats, 1" Chrome Plate, 17.4 kW
The Star Ultra-Max® 748TCHSA is a 48-inch countertop electric griddle with a 1-inch thick chrome-surfaced T1 steel plate and 4 independently controlled 12-inch zones. Each zone has a 4.35 kW heating element and its own snap-action thermostat, for a total rating of 17.4 kW. It is hard-wired and available for 208V or 240V service; select the voltage above.
Heat Zones & Temperature Control
Every 12-inch section has its own 4.35 kW element and an electric snap-action thermostat whose sensor is embedded 3/16 inch (5 mm) below the cooking surface. The thermostat reads the plate itself, so it calls for heat as soon as cold product goes down, and holds any set point between 150°F (66°C) and 450°F (232°C).
Independent zones let one griddle cook several menu items at once, for example searing in one section while holding at a lower setting in the next. The 1-inch thick plate stores heat for quick recovery and even temperatures across each zone, and electric heat means no open flame or combustion venting at the griddle.
The chrome version adds a 0.002-inch (0.05 mm) hexavalent chrome surface over ultra-tough T1 steel.
Why Operators Choose It
- Independent zones: 4 zones with one element and one thermostat every 12 inches.
- Responsive control: Thermostat sensors embedded 3/16 inch below the surface for accurate plate temperature, 150°F to 450°F.
- Heavy plate: 1" chrome-surfaced T1 steel plate for heat retention and even cooking.
- Easy cleanup: 5.5-inch rear and side splash guard and a 3.5-inch by 1-inch front grease trough draining to a grease drawer.
- Built to last: Welded steel frame, corrosion-resistant stainless steel exterior, heavy-duty metal knobs, made in the USA.
Controls
Electric snap-action thermostats, one per 12-inch section, adjustable from 150°F to 450°F.
Ideal For
Restaurants, hotels, institutional kitchens, ghost kitchens and any location where gas is unavailable or restricted but a heavy, multi-zone griddle is needed.
Specifications
| Model | 748TCHSA |
| Series | Ultra-Max® |
| Type | Countertop electric griddle |
| Width | 48" |
| Cooking surface | 48" W x 24" D |
| Griddle plate | 1" chrome-surfaced T1 steel |
| Controls | Electric snap-action thermostat every 12" |
| Temperature range | 150°F to 450°F (66°C to 232°C) |
| Heat zones | 4 |
| Total power | 17.4 kW (4.35 kW per zone) |
| Voltage | 208V or 240V (select option); 1- or 3-phase |
| Amps, 1-phase | 83.6 A (208V) / 72.5 A (240V) |
| Amps per line, 3-phase | 208V: 54.4 / 54.4 / 36.2 A; 240V: 47.1 / 47.1 / 31.4 A |
| Electrical connection | Hard-wired; 2.2" from right side |
| Overall dimensions | 48" W x 33.6" D x 18" H |
| Splash guard | 5.5" rear and sides |
| Grease trough / drawer | 3.5" x 1" front trough, 1 grease drawer |
| Legs | 4" legs, adjustable up to 1.375" |
| Shipping weight | 520 lb |
| Installed weight | 440 lb |
| Certifications | cULus, UL EPH Classified |
| Warranty | 2-year parts & labor |
Electrical Options
| Option | SKU |
| 208V | 748TCHSA 208V |
| 240V | 748TCHSA 240V |
Installation & Utility Requirements
The griddle is hard-wired at installation and requires one electrical connection sized for the selected voltage. Have a licensed electrician size the circuit from the amp ratings above and confirm 1- or 3-phase service before ordering.
Allow at least 1 inch (25 mm) of clearance between the sides and back of the griddle and any wall. Use the supplied 4-inch legs on a countertop or set the griddle on a matching equipment stand. Follow local codes for ventilation over cooking equipment.
What's Included
- Ultra-Max® 748TCHSA 48" electric griddle, wired for the voltage ordered
- 4" adjustable legs
- 1 grease drawer
Factory Options & Accessories (Additional Cost)
- Steel equipment stand with legs or casters
Warranty
2-year parts and labor warranty from Star.
Download the Star spec sheet (PDF)
Specifications per Star Manufacturing data; subject to change by the manufacturer.
