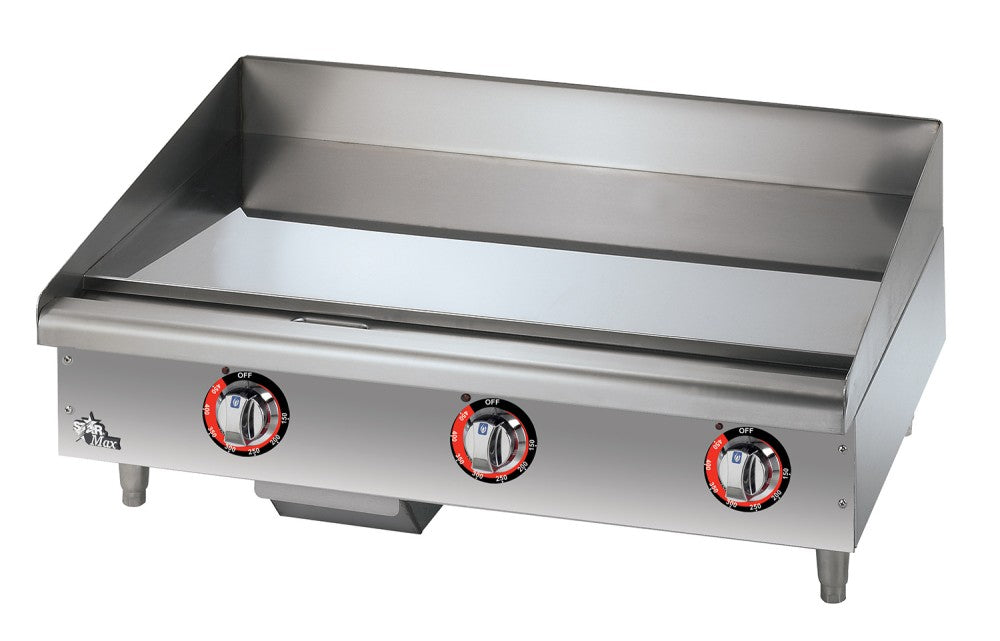

Star-Max® 536CHSF 36" Electric Griddle, Snap-Action Thermostat, 1" Chrome Plate, 208/240V
The Star Star-Max® 536CHSF is a 36-inch countertop electric griddle with a highly polished 1-inch thick chrome plate. A 4,000-watt incoloy element and snap-action thermostat heat each 12-inch section, for 12,000 W at 240V (9,012 W at 208V). The griddle is hard-wired and operates on 208V or 240V service.
Heating & Temperature Control
Each 12-inch section has its own 4,000-watt incoloy sheath element controlled by a snap-action thermostat inserted into the griddle plate 3/16 inch from the cooking surface. The thermostat adjusts from 150°F to 450°F and reacts quickly to changes in plate temperature when product is loaded.
Double-wall construction keeps the exterior cooler and allows installation within 1 inch of combustible surfaces, which helps in tight lines. The 1-inch plate spreads heat evenly and holds it between batches.
Why Operators Choose It
- Precise control: Snap-action thermostat embedded in the plate, 150°F to 450°F.
- Even heat: 1" chrome plate with a 4,000 W element every 12 inches.
- Easy cleanup: Spatula-wide 3.25-inch grease trough, grease chute, 4.5-inch tapered splash guard and a 4.5-quart stainless steel grease drawer.
- Compact installation: Double-wall construction allows 1-inch clearance to combustible surfaces.
- Durable build: All-welded body, stainless steel front, bull nose and top, heavy-duty metal knobs, made in the USA.
Controls
One snap-action thermostat per 12-inch section, 150°F to 450°F, with knobs protected by a cool-to-the-touch stainless steel bull nose.
Ideal For
Cafés, convenience stores, concessions, breakfast stations and smaller restaurant lines that need a compact electric griddle.
Specifications
| Model | 536CHSF |
| Series | Star-Max® |
| Type | Countertop electric griddle |
| Width | 36" |
| Plate depth | 20.5" |
| Griddle plate | 1" chrome |
| Controls | Snap-action thermostat every 12" |
| Temperature range | 150°F to 450°F |
| Power | 9,012 W at 208V / 12,000 W at 240V |
| Voltage | 208V or 240V, 1- or 3-phase |
| Amps, 1-phase | 43.3 A (208V) / 50.0 A (240V) |
| Amps per line, 3-phase | 208V: 25 / 25 / 25 A; 240V: 28.9 / 28.9 / 28.9 A |
| Electrical connection | Hard-wired at rear junction box |
| Overall dimensions | 36" W x 27.9" D x 15.5" H |
| Splash guard | 4.5" tapered, wrap-around |
| Grease drawer | 4.5 qt stainless steel |
| Legs | 4" legs with 1-3/8" adjustment |
| Shipping weight | 262 lb |
| Installed weight | 247 lb |
| Certifications | UL listed, UL Sanitation, CSA |
| Warranty | 2-year parts & labor |
Installation & Utility Requirements
The griddle is hard-wired at installation through the junction box at the rear. It operates on 208V or 240V and can be connected 1-phase or 3-phase; have a licensed electrician size the circuit from the amp ratings above.
Use the supplied 4-inch legs on a non-combustible countertop, or a stand at least 27 inches tall on a combustible floor. Keep the back and both sides at least 1 inch from combustible surfaces.
What's Included
- Star-Max® 536CHSF 36" electric griddle
- 4" adjustable legs
- 4.5 qt grease drawer
Factory Options & Accessories (Additional Cost)
- Equipment stand
Warranty
2-year parts and labor warranty from Star.
Download the Star spec sheet (PDF)
Specifications per Star Manufacturing data; subject to change by the manufacturer.
