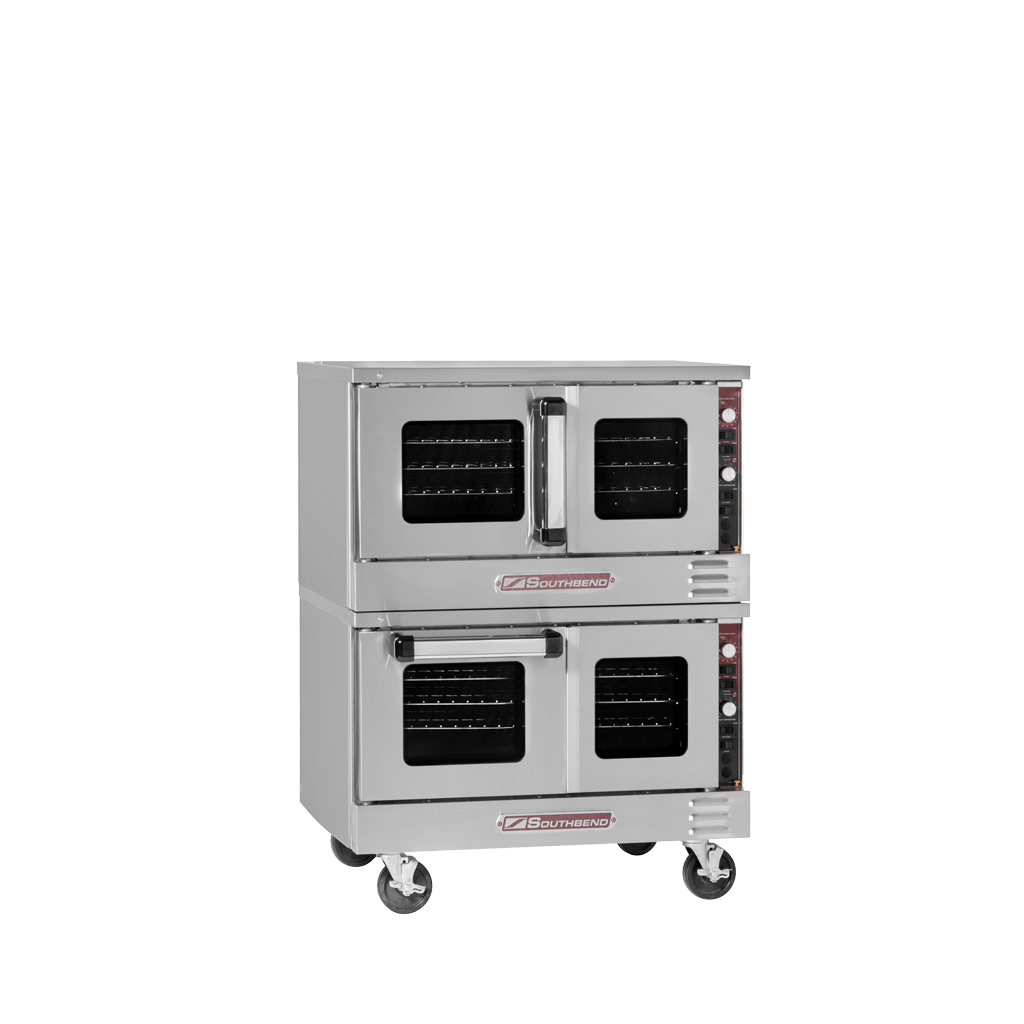

Southbend TVES/20SC TruVection Low-Profile Electric Convection Oven, Double Deck, Standard Controls, 30 kW, 208V 1-Ph

The Southbend TVES/20SC is a TruVection electric convection oven: double deck, standard controls. It draws 30 kW, 208V 1-Ph, delivering even, fan-driven baking and roasting for commercial production.

TruVection Low-Profile Convection Design

The Southbend TruVection TV-Series is a low-profile convection oven at 27-1/4" tall per deck, built to fit under hoods and in tight lines where a full-height oven will not. It keeps commercial convection features: stainless steel front, sides and top, dependent glass doors that open 180° and a dual door seal system.

A two-speed fan moves air evenly through the porcelain, coved interior for consistent baking, and the stay-cool heavy-duty door handle keeps loading safe during service.

Configuration & Features

• Double deck design providing increased cooking capacity
• Standard depth for easy integration into existing kitchen layouts
• Compact height of 47-1/2" (51" with flue) to fit under low ceilings
• Durable stainless steel front, sides, and top for long-lasting use and easy cleaning
• Dependent 2-piece glass doors with full 180° opening for excellent access and visibility
• Energy-saving, high-efficiency glass windows to reduce heat loss
• Dual door seal system to retain heat and improve cooking efficiency
• Easy-to-clean porcelain coved interior
• Stay-cool heavy-duty door handle for operator safety
• Two-speed fan motor for effective convection and even heat distribution

Why Operators Choose It

• Low profile: 27-1/4" deck height fits tight spaces
• Even results: two-speed convection fan
• Heat retention: dual door seals and energy-saving glass windows
• Easy cleaning: coved porcelain interior

Ideal For

• Restaurants with limited hood space
• Cafes and bakeries
• Convenience and grab-and-go kitchens
• Schools and small institutional kitchens

Specifications

Installation & Utility Requirements

• Electrical: 208V, 1-phase, 36.1 A on a dedicated circuit, field wired per local code.
• Clearances from combustible construction: rear 0", left 0", right 0"
• Ventilation: install under a commercial exhaust hood in accordance with local codes
• Professional installation by a licensed gas fitter or electrician is required by the manufacturer

Factory Options (Additional Cost)

• Casters 4" or 6"
• Marine edge top
• Swivel Caster - front with locks
• Export crating
• Stainless steel dirt tray

Warranty

Southbend covers this unit with a 1 year parts and labor warranty under its current limited warranty policy. Professional installation and startup help keep coverage in force.

Specifications per Southbend data; subject to change by the manufacturer.
