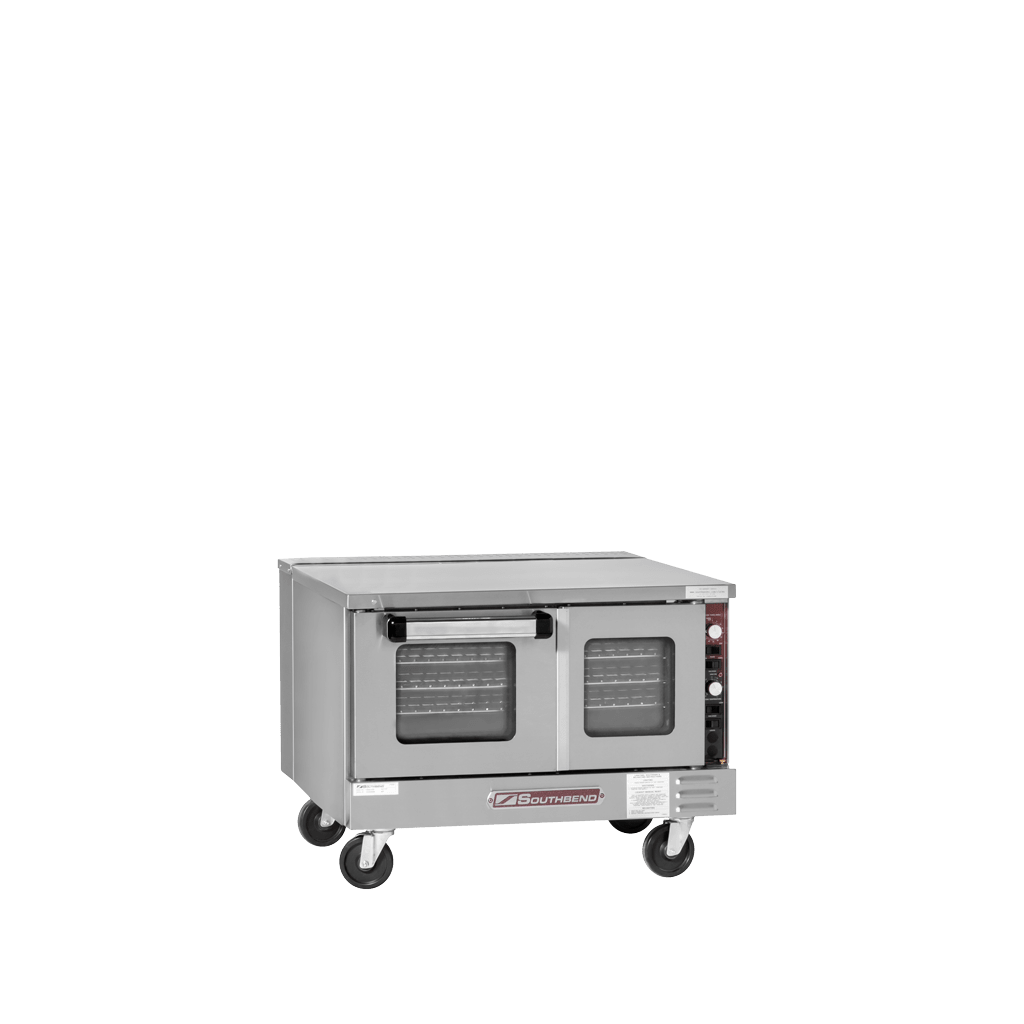

Southbend TVES/10SC TruVection Low-Profile Electric Convection Oven, Single Deck, Standard Controls, 7.5 kW, 208V 1-Ph

The Southbend TVES/10SC is a TruVection electric convection oven: single deck, standard controls. It draws 7.5 kW, 208V 1-Ph, delivering even, fan-driven baking and roasting for commercial production.

TruVection Low-Profile Convection Design

The Southbend TruVection TV-Series is a low-profile convection oven at 27-1/4" tall per deck, built to fit under hoods and in tight lines where a full-height oven will not. It keeps commercial convection features: stainless steel front, sides and top, dependent glass doors that open 180° and a dual door seal system.

A two-speed fan moves air evenly through the porcelain, coved interior for consistent baking, and the stay-cool heavy-duty door handle keeps loading safe during service.

Configuration & Features

• High-efficiency heating elements for consistent, powerful baking
• Low profile design at 27-1/4" height ideal for space-saving kitchens
• Durable stainless steel front, sides, and top for easy cleaning and professional look
• Dependent 2-piece glass doors with full 180° opening for easy access and visibility
• Energy-saving, high-efficiency glass windows to reduce heat loss
• Dual door seal system to keep heat inside and improve energy efficiency
• Porcelain coved interior for easy cleaning and durability
• Stay-cool heavy-duty door handle for safe operation
• Two-speed fan motor for excellent convection airflow and cooking consistency
• Multiple oven racks (3 chrome-plated) with 5-position rack guides for versatile cooking

Why Operators Choose It

• Low profile: 27-1/4" deck height fits tight spaces
• Even results: two-speed convection fan
• Heat retention: dual door seals and energy-saving glass windows
• Easy cleaning: coved porcelain interior

Ideal For

• Restaurants with limited hood space
• Cafes and bakeries
• Convenience and grab-and-go kitchens
• Schools and small institutional kitchens

Specifications

Installation & Utility Requirements

• Electrical: 208V, 1-phase, 36.1 A on a dedicated circuit, field wired per local code.
• Clearances from combustible construction: rear 0", left 0", right 0"
• Ventilation: install under a commercial exhaust hood in accordance with local codes
• Professional installation by a licensed gas fitter or electrician is required by the manufacturer

Factory Options (Additional Cost)

• Stainless steel solid door
• 12" stainless steel legs
• 26" stainless steel legs
• Casters 4" or 6"
• Marine edge top
• Swivel Caster - front with locks
• Export crating
• Extra oven racks
• Stainless steel dirt tray
• Bottom, roller bearing, sliding rack

Warranty

Southbend covers this unit with a 1 year parts and labor warranty under its current limited warranty policy. Professional installation and startup help keep coverage in force.

Specifications per Southbend data; subject to change by the manufacturer.
