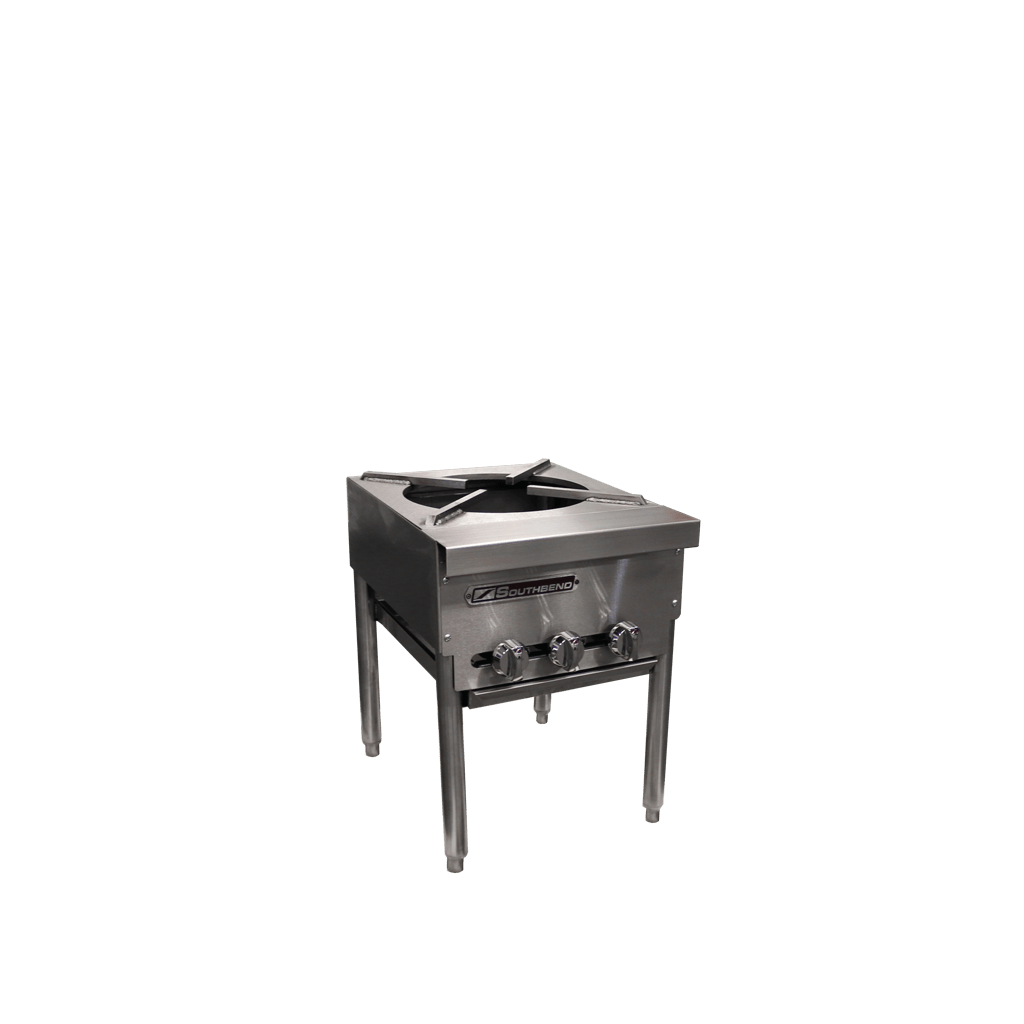

Southbend SPR-1J Platinum 18" Single Gas Stock Pot Range, Three-Ring Burner, 120,000 BTU

The Southbend SPR-1J is a 18-inch Platinum Series single stock pot range built for heavy pots and long simmering, rated at 120,000 BTU/hr. Available in natural gas or liquid propane; select the gas type above.

Platinum Stock Pot Range Design

Southbend Platinum stock pot ranges are low-height, heavy-gauge burners built for large stock pots, brew kettles and braising work. The 14-gauge all-welded body with stainless steel front, sides and plate shelf sits on heavy round tube legs with adjustable feet.

Each burner is a three-ring cast iron design with independently controlled rings, so the operator can run a gentle simmer on the inner ring or full output across all three rings for a rapid boil. A removable welded steel top grate and welded 14-gauge drip tray make cleanup straightforward.

Configuration & Features

• Stainless steel front, sides and plate shelf
• 14 gauge all welded construction
• SPR-1J has three ring cast iron burner (15K, 45K and 60K BTU)
• (1) Stainless steel pilot tip per burner ring
• Removable, welded steel top grate
• Welded steel 14 gauge drip tray under burners
• Heavy gauge round tube legs with adjustable feet
• 3/4" gas regulator included

Why Operators Choose It

• High output: three-ring cast iron burner with staged control
• Low working height for safely loading heavy stock pots
• Heavy-gauge build: 14-gauge all-welded construction
• Easy cleaning: removable grate and drip tray

Ideal For

• Soup and stock production
• Seafood boils and pasta water
• Breweries and large-batch cooking
• Institutional kitchens

Specifications

Installation & Utility Requirements

• Gas: natural gas or liquid propane supply (match the option ordered) to a 1" connection; a pressure regulator is supplied with the unit. Size the gas line for the full rated input of every appliance on the line.
• Clearances from combustible construction: rear 0", left 0", right 0"
• Ventilation: install under a commercial exhaust hood in accordance with local codes
• Professional installation by a licensed gas fitter or electrician is required by the manufacturer
• Casters: units on casters must be connected with a flexible quick-disconnect gas hose and a restraining device

Factory Options (Additional Cost)

• 3/4" quick disconnect with a 4' hose
• 3/4" quick disconnect with a 5' hose
• Side Rail Protectors
• Wok Pot and Support Ring

Warranty

Southbend covers this unit with a 1 year parts and labor warranty under its current limited warranty policy. Professional installation and startup help keep coverage in force.

Specifications per Southbend data; subject to change by the manufacturer.
