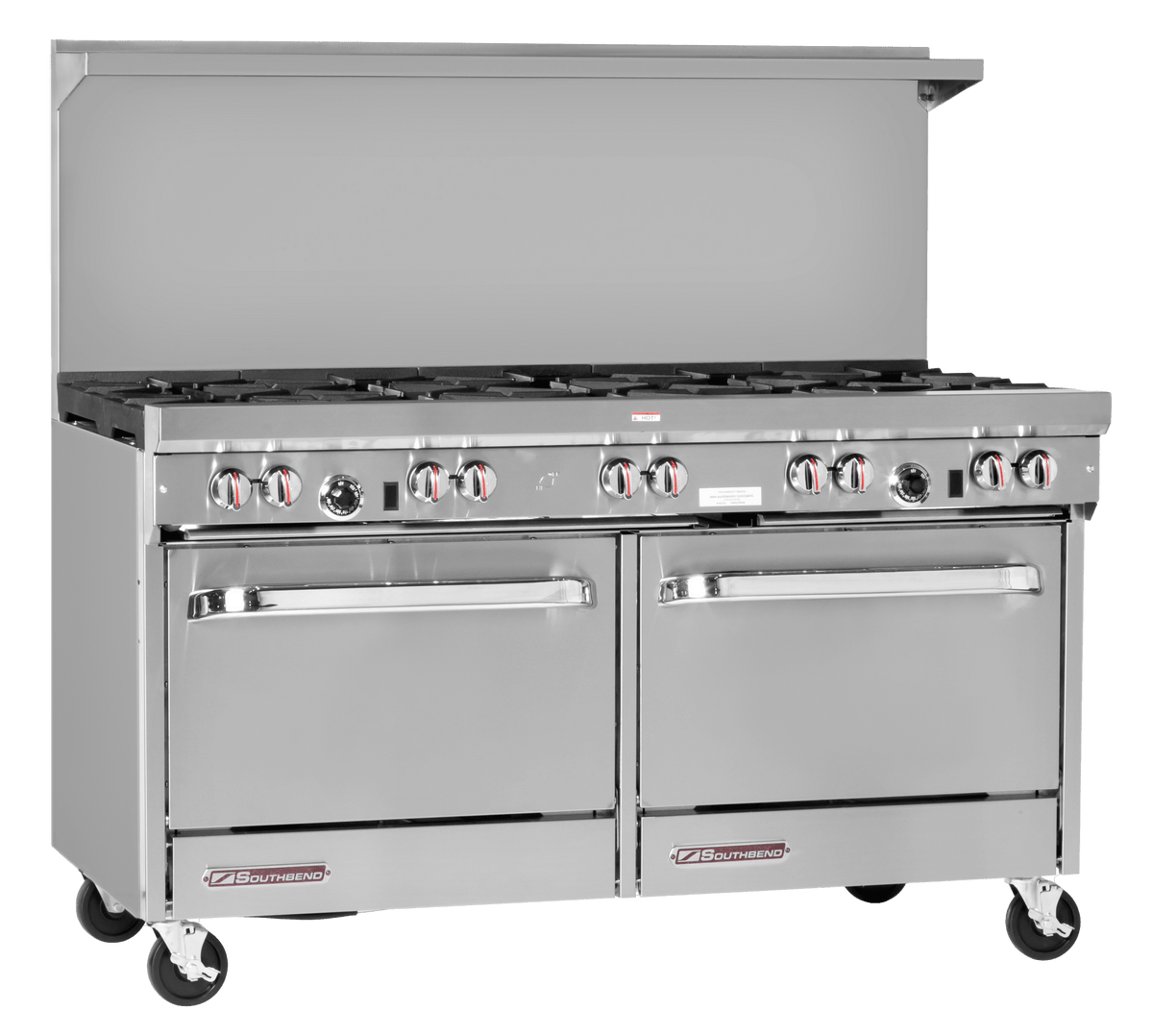

Southbend S60AD S-Series 60" Gas Restaurant Range, 10 Non-Clog Burners, Standard Oven, Convection Oven, 350,000 BTU

The Southbend S60AD is a 60-inch S-Series Series gas restaurant range configured with 10 non-clog burners, standard oven, convection oven. It is rated at 350,000 BTU/hr total input, giving a busy kitchen a single, durable station for open-burner cooking and oven work. Available in natural gas or liquid propane; select the gas type above.

S-Series Restaurant Range Design

The Southbend S-Series is a value-focused restaurant range that keeps the essentials of a commercial range: stainless steel front, sides and removable shelf, a 4" front rail with welded end caps and a factory-installed pressure regulator. It is offered in 24", 36", 48" and 60" widths with combinations of open burners, griddles and hot tops.

Open burners are Southbend's patented one-piece cast iron non-clog design, carried under a lifetime burner warranty, with individual cast iron grates and a removable one-piece crumb drawer underneath. Oven bases use a snap-action thermostat adjustable from 175°F to 550°F with a flame failure safety device, giving dependable baking and roasting capacity below the cooktop.

Configuration & Features

• 60-3/4" wide open top with (10) patented, one-piece cast iron, non-clog burners with Lifetime Warranty
• Stainless steel front, sides, and removable shelf
• 4" stainless steel front rail with closed, welded end caps
• (10) removable cast iron grate tops (rear holds up to 14" stock pot)
• (2) removable, one-piece crumb drawers under burners
• Standard oven with snap action thermostat adjustable for 175°F to 550°F
• Convection oven with snap action thermostat adjustable for 175°F to 550°F
• Large 26" wide x 26-1/2" deep oven cavity, all parts enameled and insulated with heavy rock wool
• Equipped with flame failure safety device
• 1/2 hp, 1710 rpm, 60 cycle, 115V AC high efficiency, permanent split phase motor with On/Off switch to allow CO base to operate as a standard oven

Why Operators Choose It

• Clog-free burners: patented one-piece cast iron burners with lifetime warranty
• Simple cleanup: removable one-piece crumb drawer and individual cast iron grates
• Safety: oven flame failure device and factory-installed regulator
• Durable build: stainless steel front, sides and shelf; metal knobs; 6" adjustable legs
• Value: core commercial range performance at an entry-level price point

Ideal For

• Independent restaurants and cafes
• Diners and family restaurants
• Schools, churches and community kitchens
• Second range for prep or overflow cooking

Specifications

Installation & Utility Requirements

• Gas: natural gas or liquid propane supply (match the option ordered) to a 3/4" connection; a pressure regulator is supplied with the unit. Size the gas line for the full rated input of every appliance on the line.
• Electrical: 120V, 3-phase, 5.9 A, nema 5-15.
• Clearances from combustible construction: rear 10", left 0", right 0"
• Ventilation: install under a commercial exhaust hood in accordance with local codes
• Professional installation by a licensed gas fitter or electrician is required by the manufacturer
• Casters: units on casters must be connected with a flexible quick-disconnect gas hose and a restraining device

Factory Options (Additional Cost)

• Casters - all swivel - front with locks
• 10" flue riser
• 3/4" quick disconnect with flexible hose - complies with ANSI Z 21.69 (Specify 3ft, 4ft or 5ft.)
• Restraining device
• Extra oven racks
• Cabinet base doors (No charge)
• Various salamander & cheesemelter mounts available

Warranty

Southbend covers this unit with a 1 year parts and labor warranty under its current limited warranty policy. Southbend's patented non-clog open burners also carry a lifetime clog-free burner warranty. Professional installation and startup help keep coverage in force.

Specifications per Southbend data; subject to change by the manufacturer.
