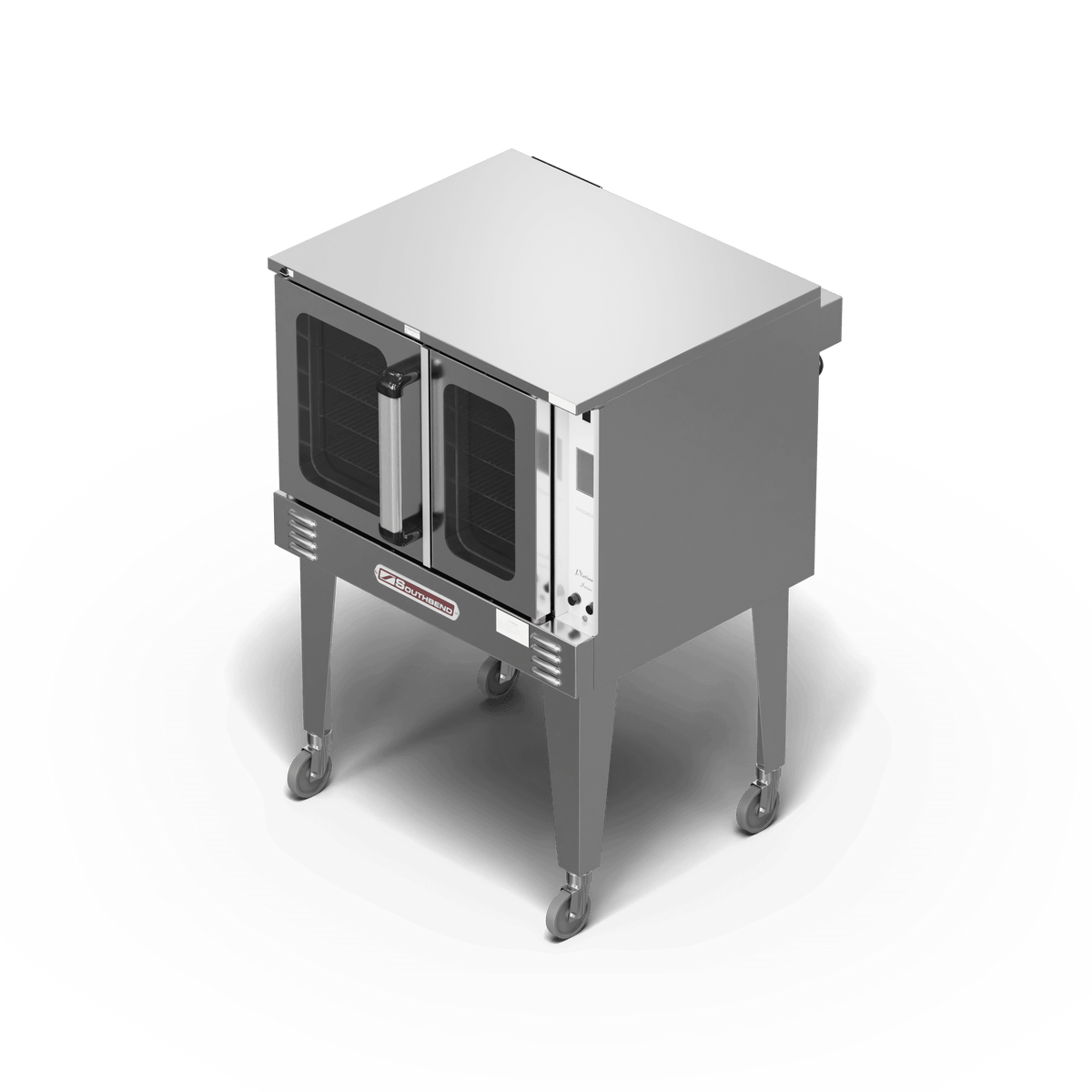

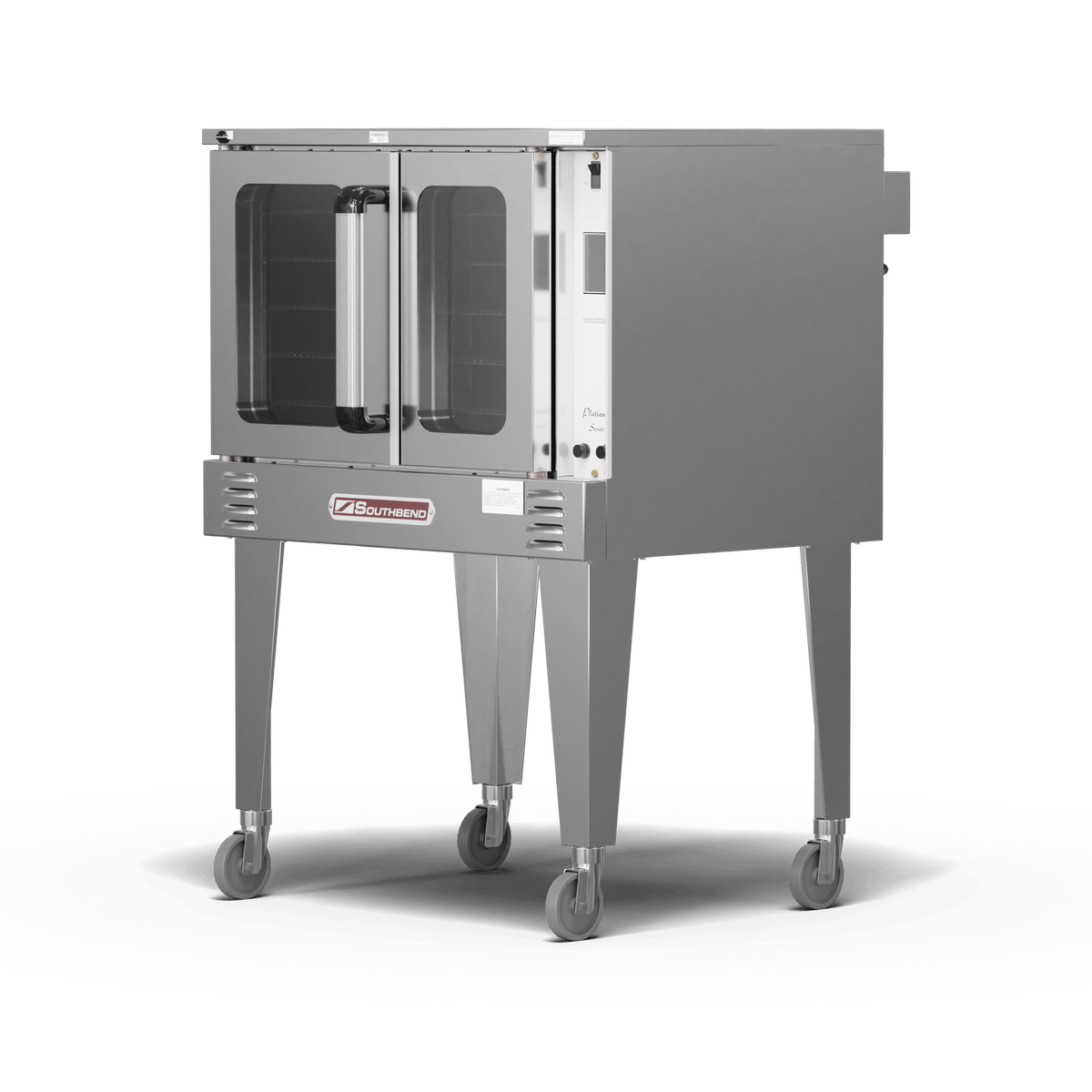

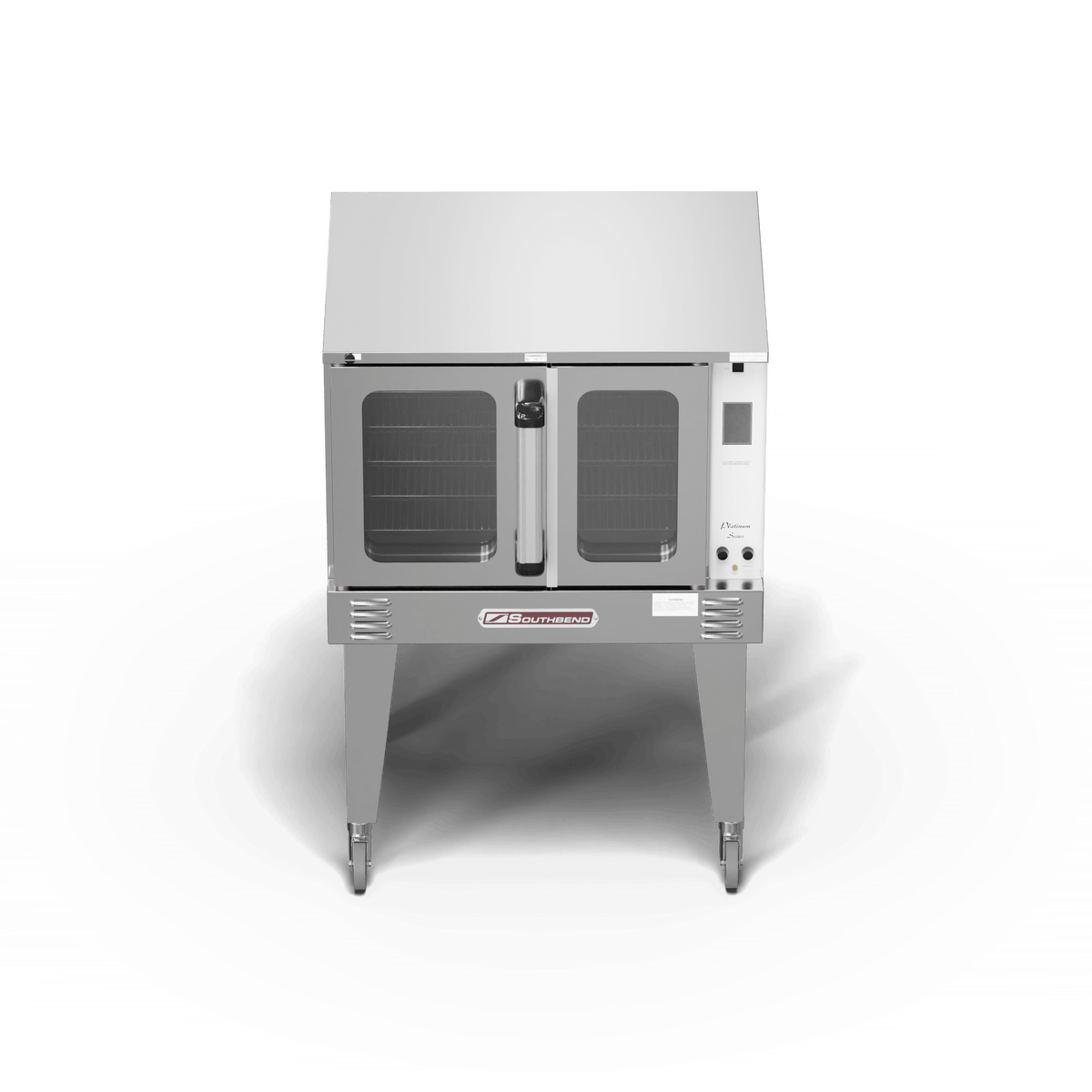

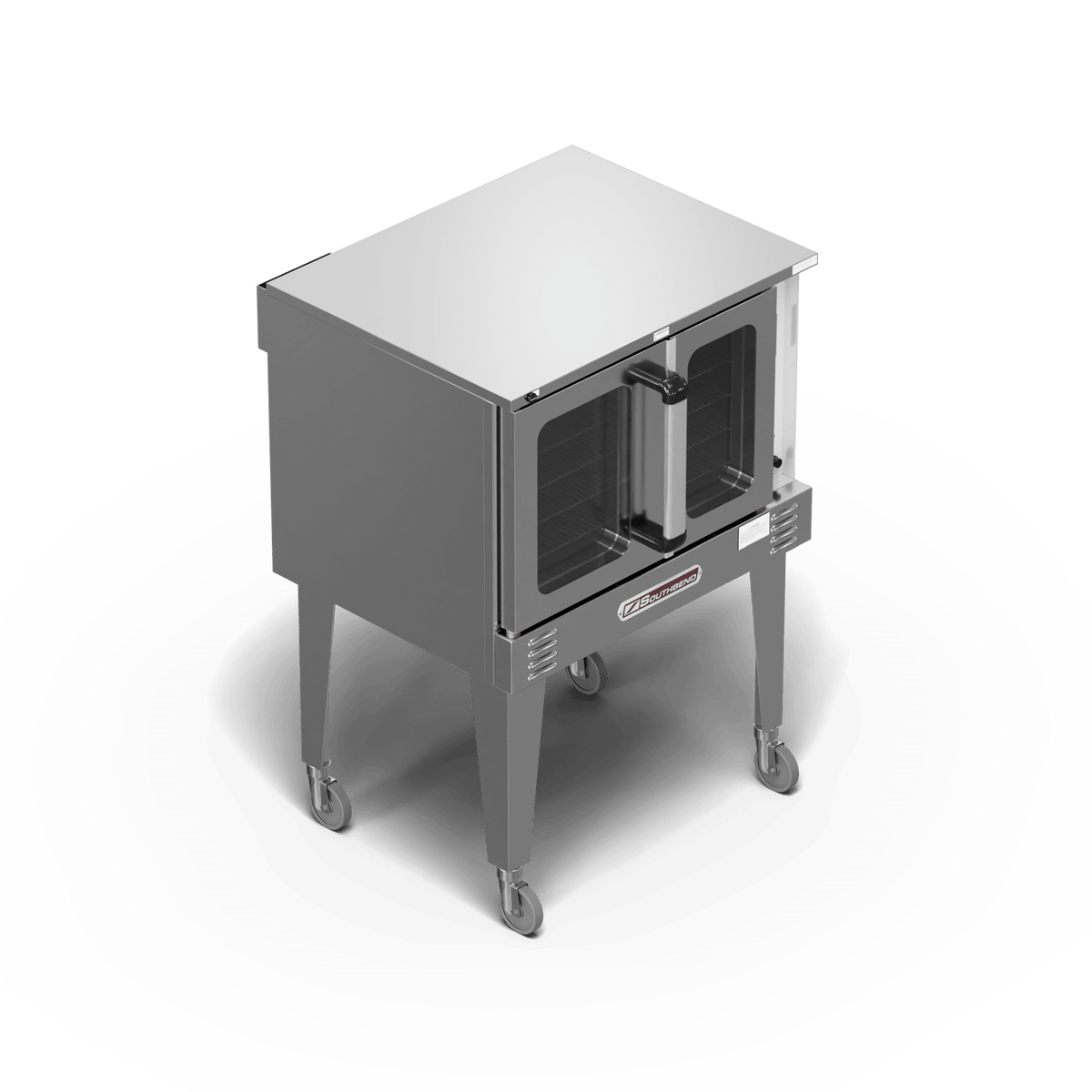

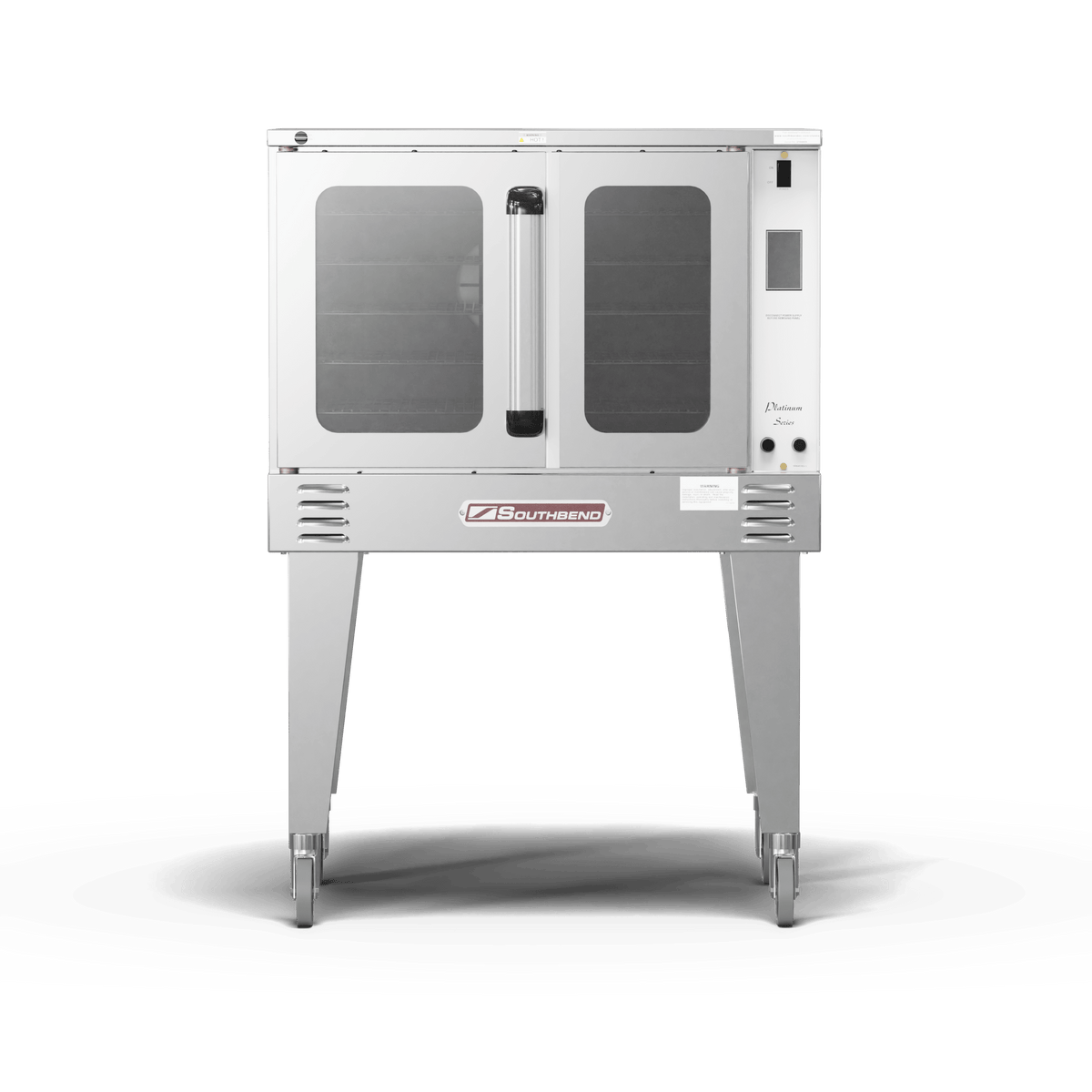

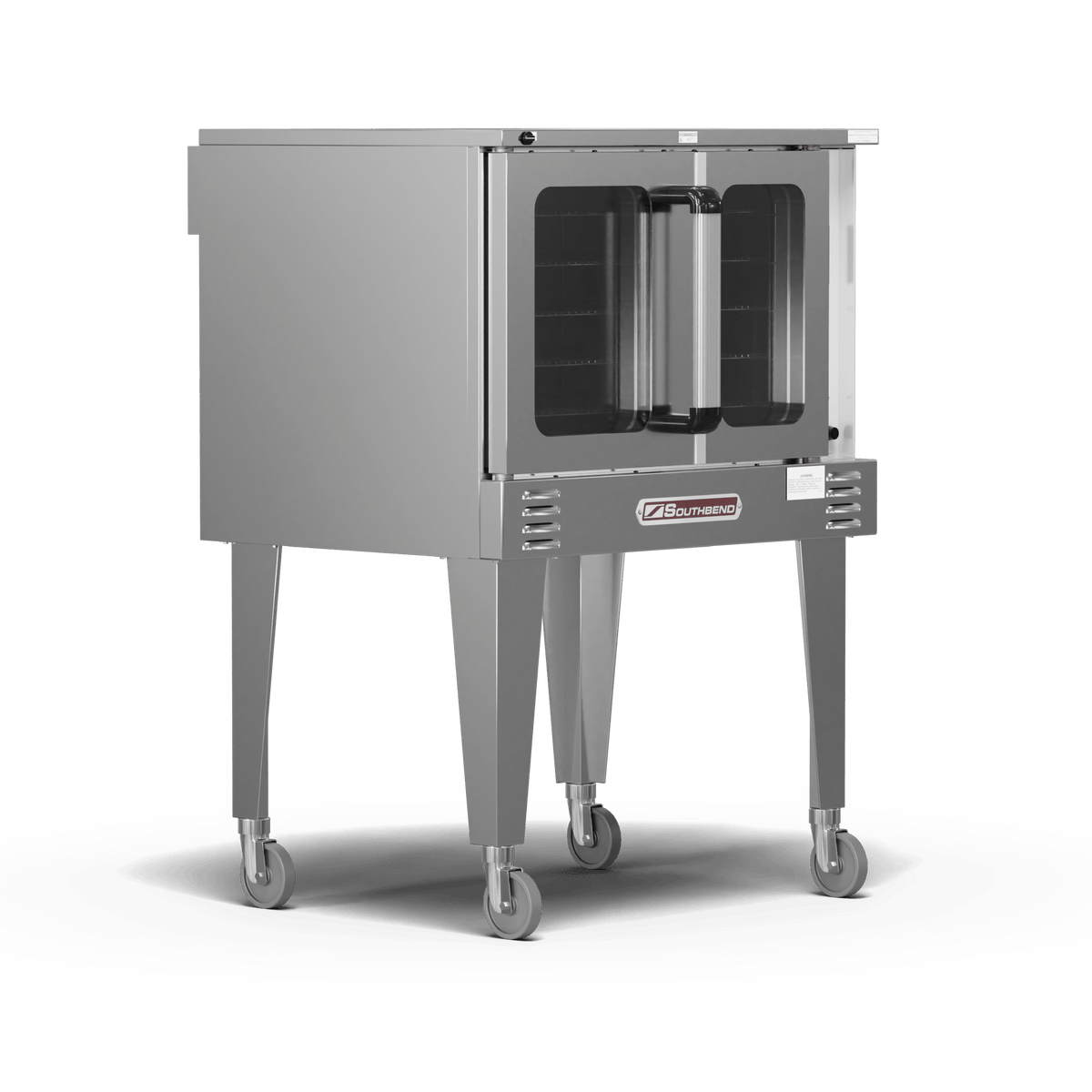

Southbend PCE75S/TD Platinum Electric Convection Oven, Single Deck, Standard Depth, Touch Controls, Dependent Doors, 7.5 kW

The Southbend PCE75S/TD is a Platinum electric convection oven: single deck, standard depth, touch controls, dependent doors. It draws 7.5 kW and is available for 208V/240V, 1 or 3-phase service, delivering even, fan-driven baking and roasting for commercial production.

Platinum Series Convection Technology

Southbend Platinum Series convection ovens use a two-speed fan to move heated air evenly through the cavity, so full loads bake, roast and reheat uniformly from rack to rack. A forced cool-down mode brings the cavity temperature down quickly between products.

Southbend's patented plug-in, plug-out control panel slides out for service access, and the coved, fastener-free porcelain interior is easy to wipe down. Glass doors with a dual door seal system open a full 180° and help hold heat in during loading.

Configuration & Features

• Energy Star certified for enhanced energy efficiency and reduced operating costs.
• Intuitive touch controls paired with solid-state temperature settings ensure precision and ease of use.
• Patented plug-in, plug-out control panel allows for quick and tool-free servicing.
• Slide-out control panel design provides full visibility and easy maintenance access.
• Rugged stainless steel construction on front, top, and sides ensures long-term durability.
• Dependent glass doors open a full 180° for smooth, accessible operation.
• High-efficiency glass windows and a dual door seal system help retain heat and lower energy usage.
• Fastener-free, porcelain coved interior simplifies cleaning and promotes sanitation.
• Soft Air, two-speed fan motor with forced cool-down mode delivers consistent baking and fast recovery.
• Eleven rack positions and five plated oven racks provide flexibility for a range of cooking needs.

Why Operators Choose It

• Even baking: two-speed fan for uniform heat across all racks
• Fast turnaround: forced cool-down mode between products
• Easy service: patented plug-in, plug-out slide-out control panel
• Easy cleaning: coved, fastener-free porcelain interior
• Heat retention: dual door seal system and high-efficiency glass windows
• Flexible loading: 11-position rack guides
• ENERGY STAR certified for lower operating cost

Ideal For

• Bakeries and pastry production
• Restaurants roasting proteins and vegetables
• Schools, hospitals and institutional kitchens
• Catering and banquet production

Specifications

Installation & Utility Requirements

• Electrical: 208V 1-phase (36.1 A); 208V 3-phase (20.8 A); 240V 1-phase (31.2 A); 240V 3-phase (18.0 A), on a dedicated circuit, field wired per local code.
• Clearances from combustible construction: rear 2", left 2", right 0"
• Ventilation: install under a commercial exhaust hood in accordance with local codes
• Professional installation by a licensed gas fitter or electrician is required by the manufacturer

Factory Options (Additional Cost)

• Ventless Design
• Independent Doors
• Stainless Steel Exterior Bottom
• Casters 4" or 6"
• Marine Edge Top
• 2" Air Insulation Panel (stainless steel only)
• Down Draft Diverter for Direct Flue
• Export Crating
• Stainless Steel Dirt Tray
• Stainless Steel Solid Doors
• Stainless Steel Rear Jacket

Warranty

Southbend covers this unit with a 1 year parts and labor warranty under its current limited warranty policy. Professional installation and startup help keep coverage in force.

Specifications per Southbend data; subject to change by the manufacturer.
