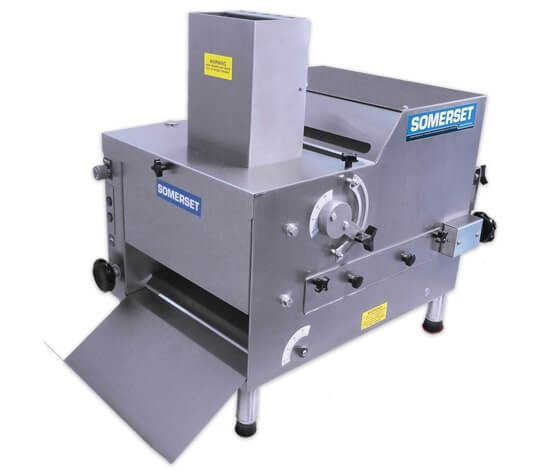

Somerset CDR-170 Commercial Dough Moulder — 6"–15" Bread Loaf Shaper, 120V, 1/2 HP

Boost your bakery's productivity with the Somerset CDR-170 dough moulder, a high-performance commercial bread shaper engineered to produce 30 uniform pieces per minute. Designed to handle bread loaves from 6" to 15" in length, the CDR-170 is the ideal solution for bakeries, delis, sandwich shops, and ethnic bread producers turning out everything from dinner rolls to sub rolls, baguettes, and specialty breads.

Built with versatility in mind, the CDR-170 accepts optional special pressure plates that expand its capabilities across a wide variety of bread styles, eliminating the need for multiple machines. Its compact footprint fits comfortably into kitchens with limited counter space, while heavy-duty welded stainless steel construction delivers the sanitation and durability commercial environments demand. The 120V, 1/2 HP motor provides reliable power while running on standard single-phase electrical service for easy installation.

The CDR-170 is engineered for safety and effortless maintenance, featuring automatic-shutoff safety sensors, spring-loaded removable scrapers, and an easily removable conveyor belt for quick cleaning and service. The maintenance-free drive mechanism is isolated from the roller area for extended service life, while simple handle adjustments deliver precise, repeatable shaping for consistent product every shift.

Ideal Applications:

• Breads
• Challah
• Hot dog buns
• Specialty breads
• Dinner rolls
• Bolillos
• Cuban bread
• Sub rolls
• Breadsticks
• Pretzels
• Baguettes

Key Features:

• Produces up to 30 pieces per minute for high-volume bakery output
• Shapes bread loaves from 6" to 15" in length
• Synthetic rollers ideal for a wide range of dough types
• Optional special pressure plates expand machine versatility
• Safety sensors provide automatic shutoff for operator protection
• Spring-loaded scrapers remove easily for quick cleaning and sanitation
• Easily removable conveyor belt simplifies cleaning and service
• Simple handle adjustments deliver uniform, consistent products
• Maintenance-free drive mechanism isolated from the roller area
• Compact design ideal for kitchens with limited space
• Heavy-duty 1/2 HP, 120V single-phase motor for dependable performance
• Sanitary, heavy-duty welded stainless steel construction
• Easy to operate and easy to clean

Specifications:

• Loaf Length Range: 6"–15"
• Rollers: 3.5" diameter x 15" length (synthetic)
• Scrapers: Synthetic, spring-loaded, easily removable
• Bearings: Permanently lubricated, sealed ball bearings
• Motor: Heavy-duty 1/2 HP, maintenance-free, single-phase 120V/60Hz
• Conveyor Length: 50" (127 cm)
• Conveyor Belt Width: 14" (35.5 cm)
• Pressure Plate: 14" x 24" (35.5 cm x 61 cm)
• Finish: All stainless steel
• Shipping Weight: 220 lbs (100 kg)
