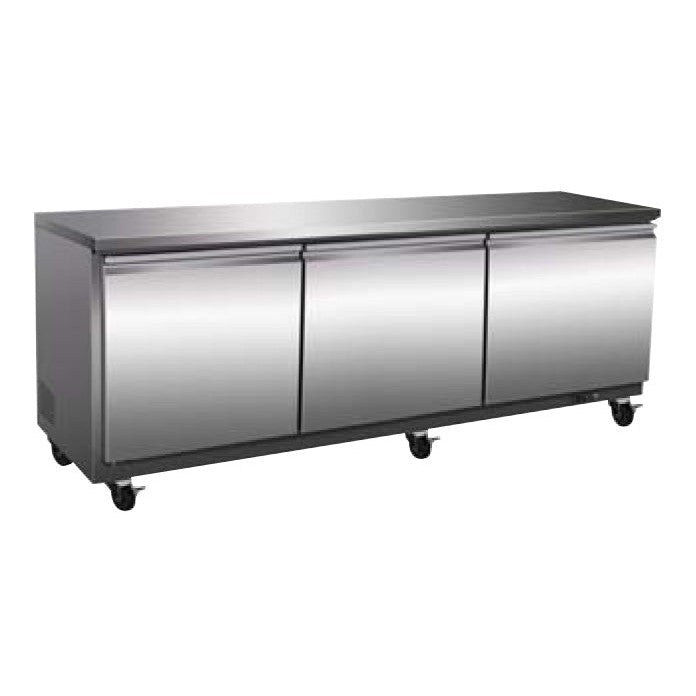

Serv-Ware UCF-72-HC-T 72" Undercounter Freezer, 18 Cu. Ft., -10°F to 10°F, R290, Stainless Steel
Frozen product has a way of living at the far end of the kitchen, which means a walk every time the fry station runs low. The Serv-Ware UCF-72-HC-T puts 18 cubic feet of freezer space right under your counter, across a full 72 inches, so fries, proteins and desserts sit where the cooks actually use them. It suits busy lines, bars and quick-service kitchens that want to cut trips to the walk-in.
A 5/8 HP compressor with R290 hydrocarbon refrigerant (3.88 oz. charge) and 6,200 BTU/h of refrigeration capacity holds the cabinet between -10°F and 10°F. It plugs into a standard 115V outlet and draws 6 amps.
What you will notice in day-to-day use
- Holds a true freezer range. Set anywhere from -10°F to 10°F and read the cabinet at a glance on the digital LED display driven by an electronic thermostat.
- Defrost takes care of itself. The unit defrosts automatically every 6 hours and evaporates the meltwater on its own, so there is no drain pan to empty.
- Doors that close behind you. Self-closing doors swing shut when a cook walks away, yet stay open once pushed past 90° while you load a case.
- Simple gasket swaps. The magnetic door gaskets pull out and press back in without tools.
- Made for a kitchen floor. Stainless steel outside, painted aluminum with ABS side panels and a 304 stainless floor inside, and one PVC-coated wire shelf per door.
Specifications
| Brand | Serv-Ware |
| Model | UCF-72-HC-T |
| Type | Undercounter freezer, bottom-mount, self-contained |
| Storage capacity | 18 cu. ft. |
| Temperature range | -10°F – 10°F |
| Compressor | 5/8 HP |
| Refrigeration capacity | 6,200 BTU/h |
| Refrigerant | R290 hydrocarbon, 3.88 oz. charge |
| Controls | Electronic thermostat, digital LED temperature display |
| Defrost | Automatic, every 6 hours; automatic condensate evaporation |
| Shelves | 1 PVC-coated wire shelf per door |
| Doors | Self-closing, stay open past 90°; tool-free magnetic gaskets |
| Exterior | Stainless steel |
| Interior | Painted aluminum with ABS side panels, 304 stainless steel floor |
| Electrical | 115V / 60 Hz / 1-phase, 6 A, NEMA 5-15P plug |
| Dimensions (W x D x H) | 71-1/2" x 29-7/8" x 35-1/2" |
| Shipping weight | 355 lb |
| Casters | Included; ship uninstalled |
Before it arrives
- Power: plugs into a standard 115V grounded outlet (NEMA 5-15P), drawing 6 A.
- Casters: the unit ships with its casters not installed; fit them before rolling it into place.
- Location: indoor, climate-controlled spaces with good airflow, away from high-heat equipment.
- Delivery: about 71-1/2" wide and roughly 355 lb shipping weight; check door openings and plan for a liftgate.
Warranty
3 years parts and labor on the entire unit (commercial use, labor valid in the United States), plus 5 years of compressor coverage (compressor part only) from Serv-Ware.
Specifications per Serv-Ware data; subject to change by the manufacturer.
