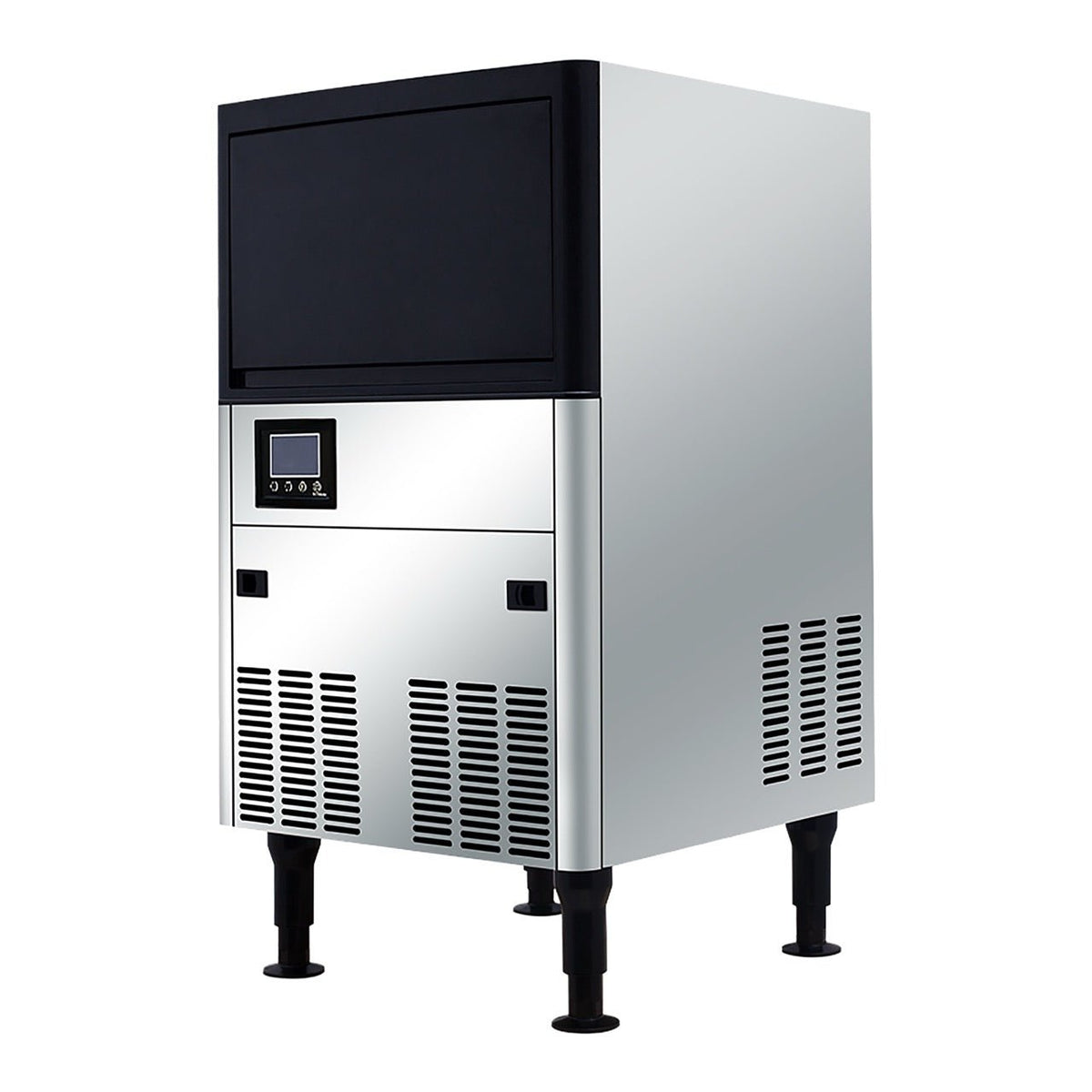

Serv-Ware SWUC-120H Undercounter Ice Machine, Half Cube, 120 Lb./24 Hr., 40 Lb. Bin, Air-Cooled, 115V

For drink stations where ice gets scooped all day, the Serv-Ware SWUC-120H is a tidy answer. This undercounter unit makes half cube ice, a smaller cube that fills cups evenly and packs well around soft drinks and blended beverages, and keeps it in its own built-in bin. Quick-service counters, cafes, juice bars and small restaurants are the natural fit.

Rated output is 120 lb of half cube ice per 24 hours with a 40 lb built-in storage bin. A 1/3 HP air-cooled refrigeration system using R290 hydrocarbon refrigerant does the work, and the unit runs on standard 115V, 60 Hz, single-phase power (400 W) with a NEMA 5-15P plug.

What you will notice in day-to-day use

• Right-sized output. Up to 120 lb a day is plenty for a smaller bar or cafe, and the 40 lb bin keeps a reserve on hand.
• Undercounter friendly. Front-breathing airflow (intake and exhaust both at the front) lets it sit snugly in a bar or counter cabinet line.
• Runs itself. The automatic ice-making cycle stops when the bin is full and restarts as ice is used, so staff are not babysitting it.
• Clear status, lit bin. Electronic controls with indicator lights, plus remote-controlled LED lighting inside.
• Serving made simple. An internal ice baffle and an included scoop make filling glasses quick.

Specifications

Before it arrives

• Power: plan a dedicated 115V outlet for the NEMA 5-15P plug.
• Water and drain: have a potable water supply and a floor drain or drain line ready near the installation spot; ask us for connection details, as they are not listed in the data we have.
• Space: measure your counter opening against the dimensions above and keep the front grille clear for airflow.

Warranty

3 years parts and labor on the entire unit, plus 5 years parts-only coverage on the compressor and evaporator, valid in the United States for commercial use, from Serv-Ware.

Specifications per Serv-Ware data; subject to change by the manufacturer.
