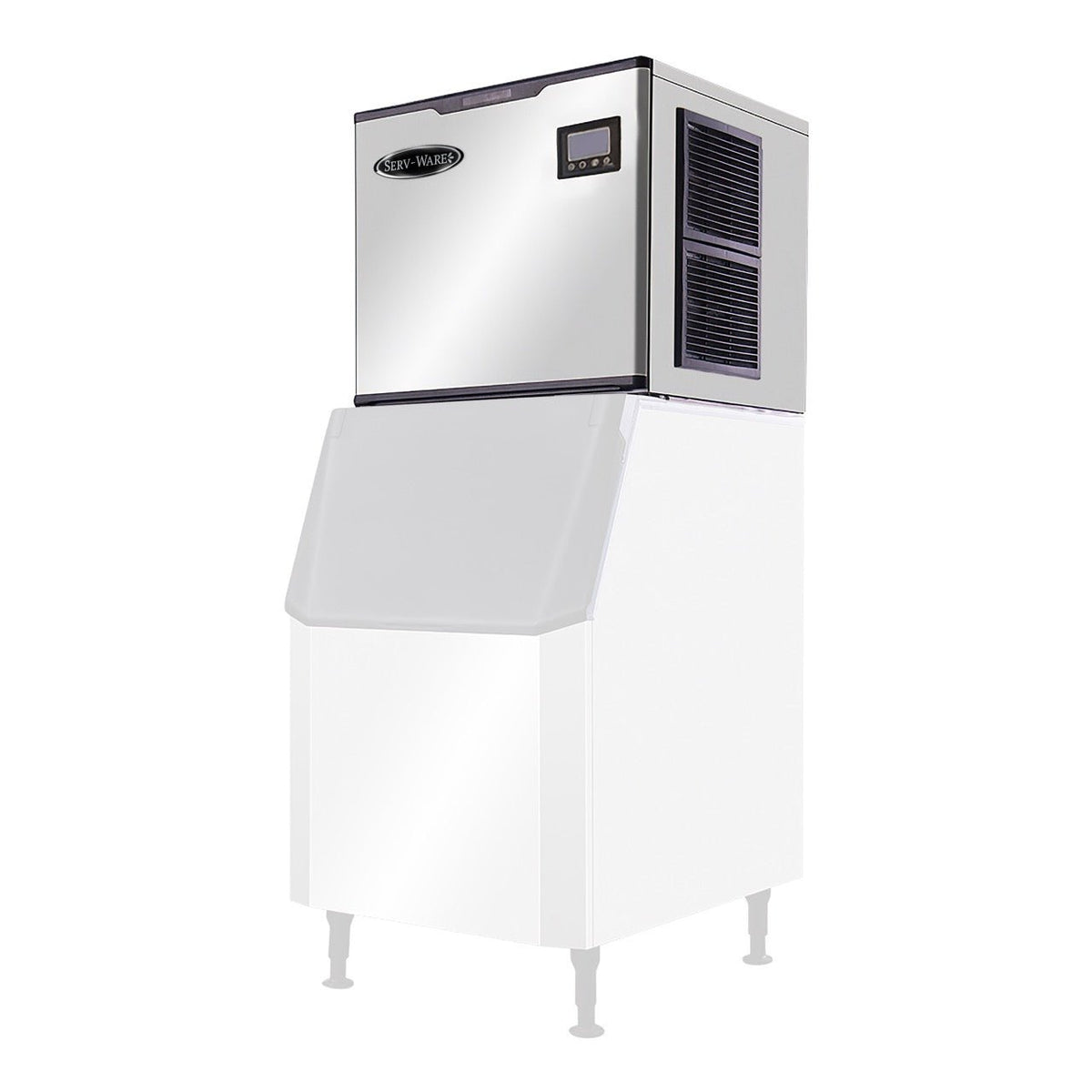

Serv-Ware SWM30-500F 30" Air-Cooled Modular Ice Machine, Full Cube, 500 lb/24 hr, 115V
Restaurants that pour a lot of soft drinks and iced tea, plus a steady bar trade, tend to land in the 500 lb a day range. The Serv-Ware SWM30-500F covers that need with a 30" wide modular head that makes full cube ice, the classic dense cube that melts slowly and looks good in the glass.
Output is rated at up to 500 lb of ice per 24 hours. It runs on 115V (1,295 W) with a NEMA 5-15P plug and uses a 1/4 HP air-cooled refrigeration system with R290 refrigerant. Dimensions are 29-15/16" W x 23-3/8" D x 22-1/4" H, and the bin is sold separately.
What you will notice in day-to-day use
- Drinks that stay strong. Full cubes melt slowly, so sodas, iced coffee and cocktails stay cold without getting watery.
- Plug-in convenience. At 115V with a NEMA 5-15P plug, it connects to a standard outlet in most kitchens.
- Set it and forget it. An automatic cycle keeps the bin topped up and shuts off when it is full.
- Status you can trust. Integrated electronic controls and indicator lights show what the machine is doing, and smart LED lighting includes a remote.
- Simple upkeep. A stainless steel cabinet and a service-friendly layout make cleaning and maintenance calls quicker.
Specifications
| Brand | Serv-Ware |
| Model | SWM30-500F |
| Type | Modular wide head ice machine, full cube, air-cooled |
| Ice production | Up to 500 lb per 24 hours |
| Ice type | Full cube |
| Storage bin | Not included; requires a separate bin |
| Condenser | Air-cooled |
| Compressor | 1/4 HP |
| Refrigerant | R290 (hydrocarbon) |
| Refrigeration capacity | 4,419 BTU/h |
| Controls | Integrated electronic controls with status indicators; automatic ice-making cycle with bin-full shut-off; smart LED lighting with remote |
| Construction | Stainless steel exterior and interior; reinforced heavy-duty cabinet |
| Electrical | 115V, 60 Hz, single phase, 1,295 W |
| Plug | NEMA 5-15P |
| Dimensions (W x D x H) | 29-15/16" x 23-3/8" x 22-1/4" |
| Shipping weight | 154 lb |
| Certifications | Conforms to UL 471 and NSF 7; certified to CSA C22.2 No. 120 |
Before it arrives
- Pick a bin: the head does not include storage, so order a compatible ice bin (or dispenser) sized for your peak use at the same time.
- Power: a 115V outlet with a NEMA 5-15P receptacle near the machine.
- Water and drain: plan for a potable water supply and a floor drain near the location; filtration is a good idea in hard-water areas.
- Airflow and leveling: keep the air-cooled condenser clear of walls and heat sources, and use the adjustable front legs on uneven floors.
Warranty
Three years parts and labor on the entire unit, plus five years on the compressor and evaporator (parts only), from Serv-Ware. Coverage is for commercial use in the United States.
Specifications per Serv-Ware data; subject to change by the manufacturer.
