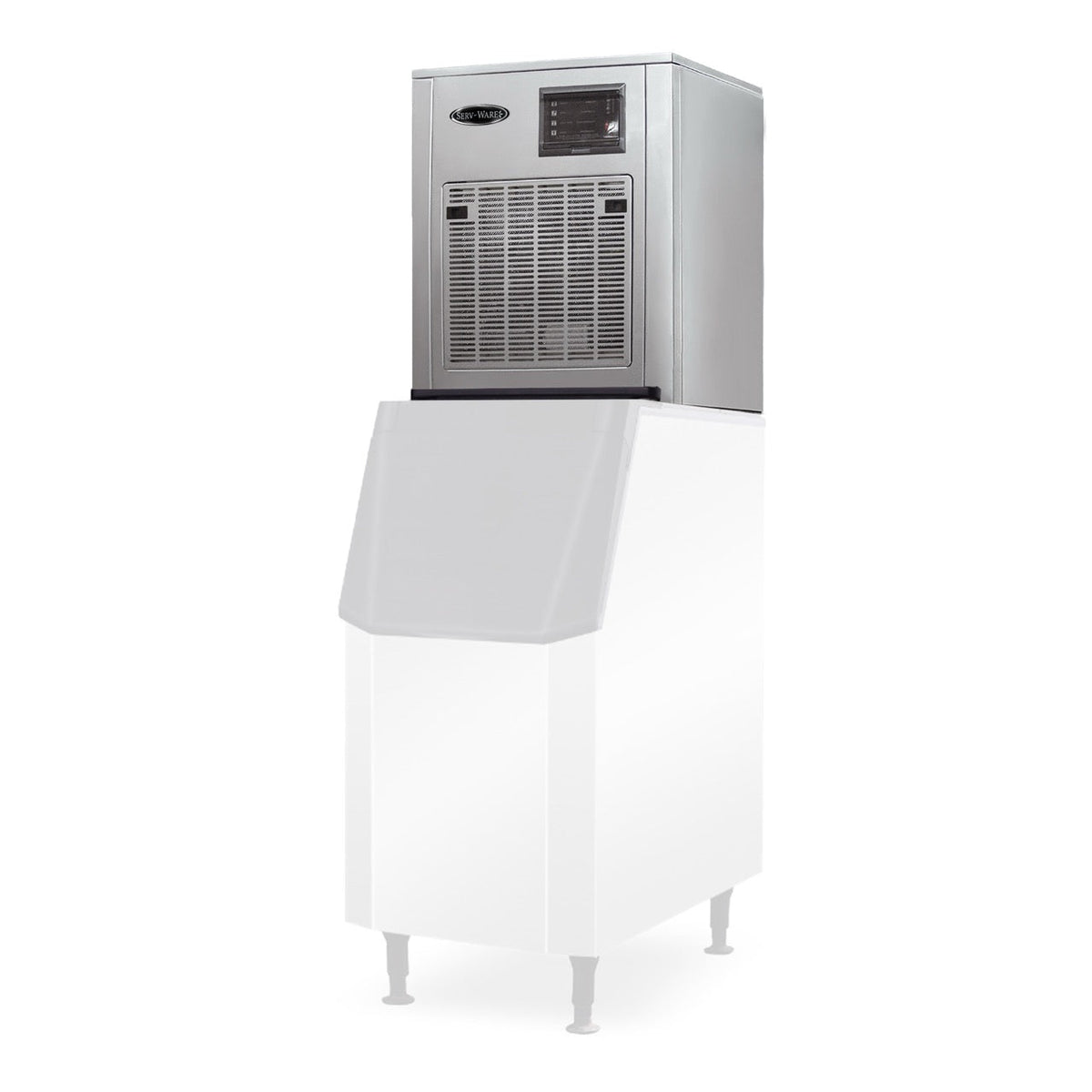

Serv-Ware SWM22-550CN 22" Air-Cooled Modular Ice Machine, Chewable Nugget, 550 lb/24 hr, 110V
Nugget ice is the soft, chewable ice customers go out of their way for, and it is a strong draw for drive-thru drinks, smoothie bars, healthcare and fountain soda programs. The Serv-Ware SWM22-550CN brings that ice to a compact 22" wide modular head that sits on top of a storage bin.
The machine is rated at up to 550 lb of chewable nugget ice per 24 hours. It runs on 110V (1,180 W) with a NEMA 5-15P plug, and uses a 1/4 HP air-cooled refrigeration system with R290 refrigerant. Overall size is 22" W x 24-7/8" D x 24-1/8" H.
What you will notice in day-to-day use
- Ice people ask for. Chewable nugget ice soaks up the flavor of the drink and is easy to chew, which can help set your beverages apart.
- Big output, small width. Up to 550 lb a day from a 22" wide head leaves room on the wall for other equipment.
- Standard outlet. Operation on 110V with a NEMA 5-15P plug keeps installation simple in most locations.
- Hands-off operation. Ice making is automatic and shuts off when the bin is full, then resumes as ice is used.
- Easy to keep clean. The stainless steel cabinet wipes down quickly, and a service-friendly layout gives easier access to the condenser and parts.
Specifications
| Brand | Serv-Ware |
| Model | SWM22-550CN |
| Type | Modular wide head ice machine, chewable nugget, air-cooled |
| Ice production | Up to 550 lb per 24 hours |
| Ice type | Chewable nugget |
| Storage bin | Not included; requires a separate bin |
| Condenser | Air-cooled |
| Compressor | 1/4 HP |
| Refrigerant | R290 (hydrocarbon) |
| Refrigeration capacity | 1,200 – 1,500 BTU/h |
| Controls | Integrated electronic controls with status indicators; automatic ice-making cycle with bin-full shut-off; smart LED lighting with remote |
| Construction | Stainless steel exterior and interior; reinforced heavy-duty cabinet |
| Electrical | 110V, 60 Hz, single phase, 1,180 W |
| Plug | NEMA 5-15P |
| Dimensions (W x D x H) | 22" x 24-7/8" x 24-1/8" |
| Shipping weight | 196 lb |
| Certifications | Conforms to UL 471 and NSF 7; certified to CSA C22.2 No. 120 |
Before it arrives
- Pick a bin: the head does not include storage, so order a compatible ice bin (or dispenser) sized for your peak use at the same time.
- Power: 110V outlet with a NEMA 5-15P receptacle close to the machine.
- Water and drain: plan for a potable water supply and a floor drain near the location; filtration is a good idea in hard-water areas.
- Airflow and leveling: give the air-cooled condenser open space for ventilation, and use the adjustable front legs to level the head on the bin.
Warranty
Three years parts and labor on the entire unit, plus five years on the compressor and evaporator (parts only), from Serv-Ware. Coverage is for commercial use in the United States.
Specifications per Serv-Ware data; subject to change by the manufacturer.
