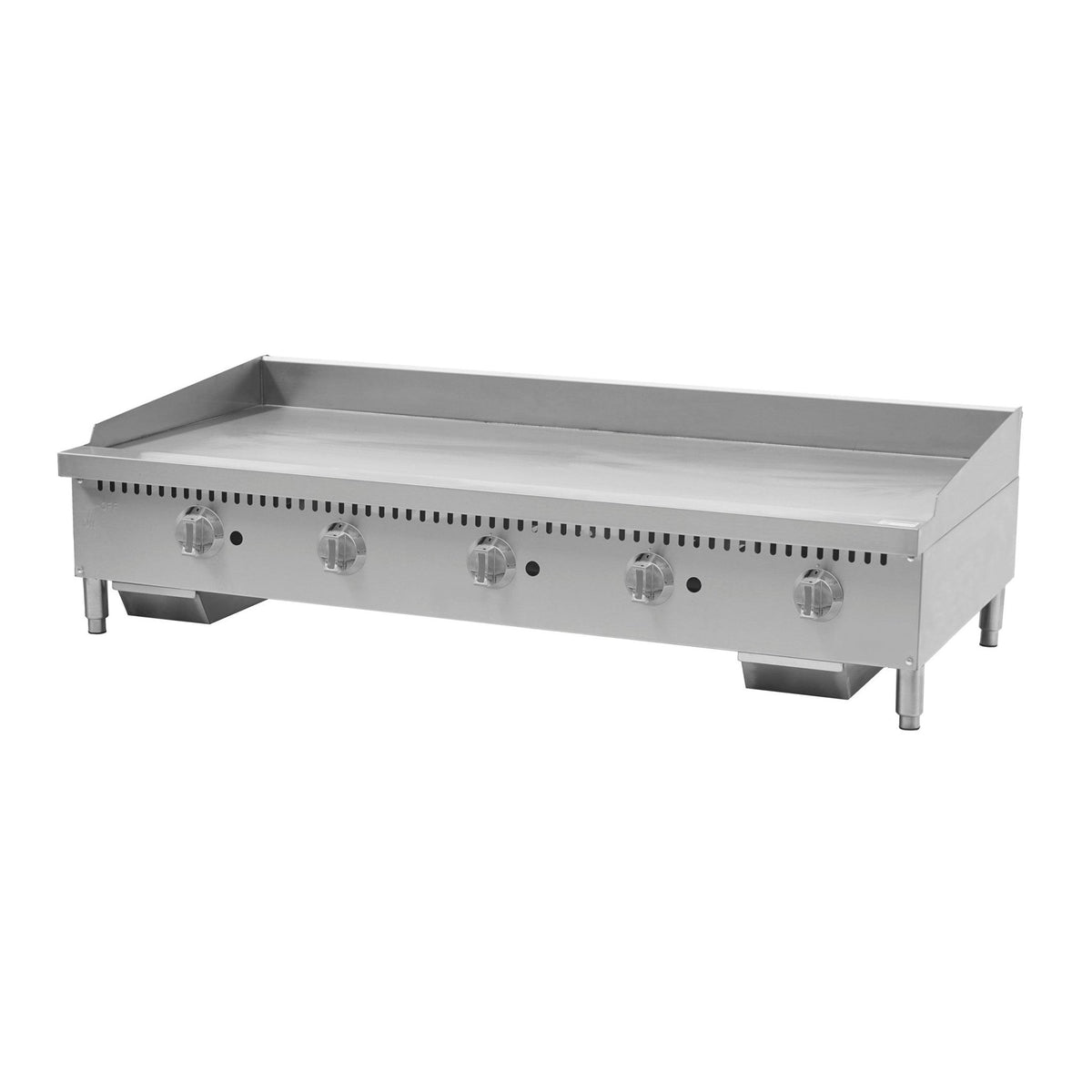

Serv-Ware SMGS-60 60" Countertop Manual Griddle, 5 Burners, 150,000 BTU, 1" Steel Plate
The Serv-Ware SMGS-60 is the largest griddle in the SMGS manual series and is built for kitchens where the flat top never really gets a break. Five feet of cooking surface gives high-volume breakfast operations, buffets, hotel kitchens and busy burger counters the room to run several menu items at once without crowding.
Five steel U-shaped burners rated 30,000 BTU/hr each deliver 150,000 BTU/hr in total. There is one manual control for every 12" of width, and on this model the griddle plate is a full 1" thick steel.
What you will notice in day-to-day use
- A heavy plate for heavy use. The 1" thick steel plate stores a lot of heat, so the surface stays steady when you load it edge to edge.
- Five zones to work with. Separate controls every 12" let you set different temperatures across the plate, or shut sections down in slow periods.
- Plenty of power. 150,000 BTU/hr in total from U-shaped burners that spread the flame under each section.
- Quick start every shift. Standing pilots keep the burners ready to light, and chrome-coated zinc alloy knobs are easy to grip.
- Simple cleanup. A bottom oil collector and stainless steel front and sides keep closing time short.
Choosing your setup
Gas type: this griddle is offered for natural gas or LP; choose the gas your kitchen uses above. Burner ratings are the same on either gas, and a conversion kit for the other gas is included, so it can be switched later by a qualified installer.
| Gas | Input per burner | Total input | Supply pressure |
|---|---|---|---|
| Natural gas | 30,000 BTU/hr | 150,000 BTU/hr | 4" W.C. |
| LP | 30,000 BTU/hr | 150,000 BTU/hr | 10" W.C. |
Specifications
| Brand | Serv-Ware |
| Model | SMGS-60 |
| Type | Countertop gas griddle, manual controls |
| Burners | 5 x 30,000 BTU/hr steel U-shaped burners |
| Total input | 150,000 BTU/hr |
| Controls | 5 manual valves (one per 12"), standing pilot |
| Griddle plate | 1" thick steel |
| Grease management | Oil collector at the bottom |
| Gas type | Natural gas or LP (choose above); conversion kit for the other gas included |
| Gas pressure | 4" W.C. natural gas; 10" W.C. LP |
| Gas line | 3/4" |
| Construction | Stainless steel front and sides; chrome-coated zinc alloy knobs |
| Legs | Heavy-duty adjustable stainless steel |
| Dimensions (W x D x H) | 60" x 29-15/16" x 16" |
| Shipping weight | 560 lb |
Before it arrives
- Gas: 3/4" gas line; have a qualified gas installer make the connection and handle any conversion to the other gas.
- Ventilation: install under a commercial hood following your local code.
- Counter or stand: plan for a sturdy, non-combustible surface at least 60" wide and about 30" deep, and use the adjustable legs to level it.
- Delivery: ships at about 560 lb, so arrange enough hands or a liftgate.
Warranty
One year parts and labor on the entire unit, counted from installation (up to 18 months from shipment), for commercial use in the United States, from Serv-Ware.
Specifications per Serv-Ware data; subject to change by the manufacturer.
