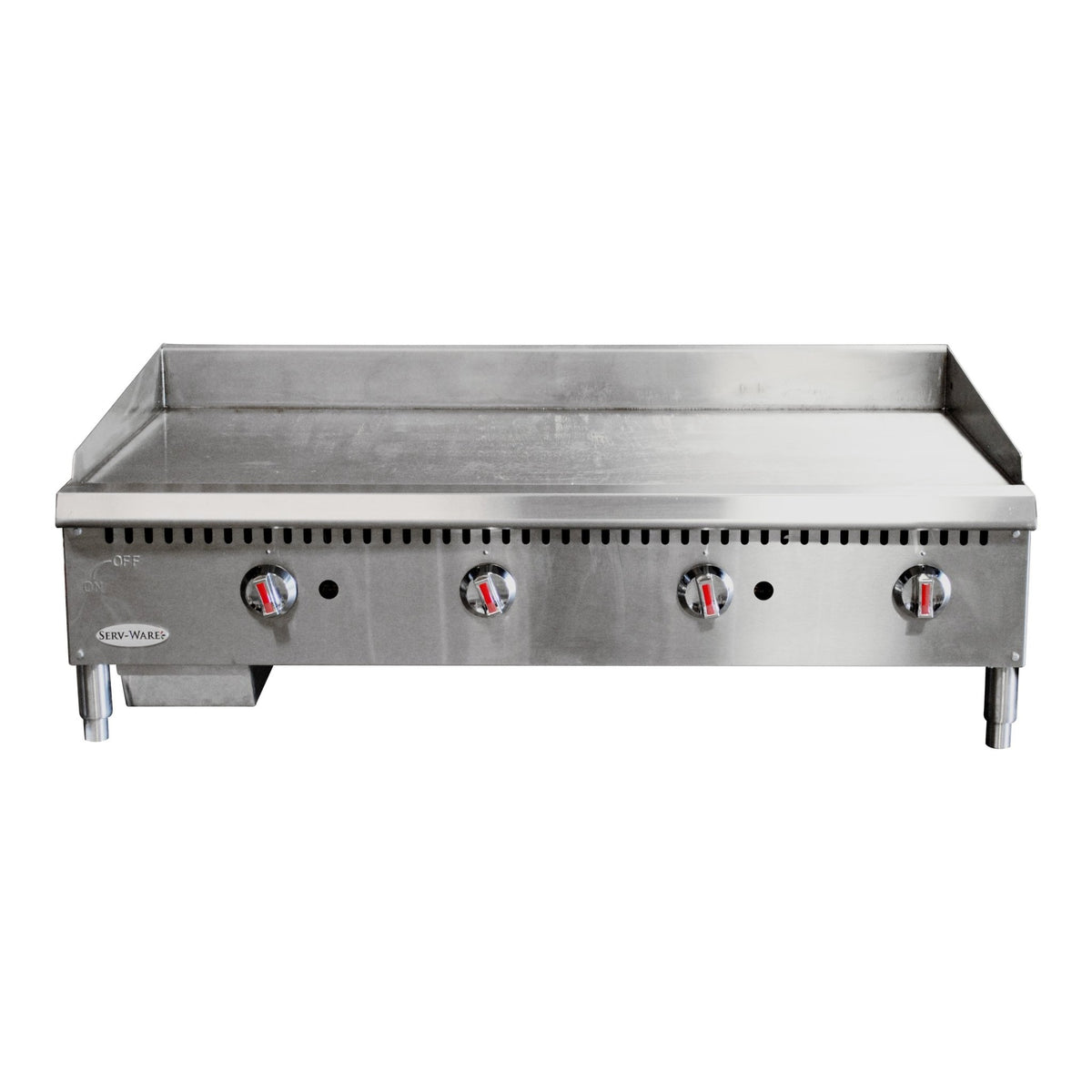

Serv-Ware SMGS-48 48" Countertop Manual Griddle, 4 Burners, 120,000 BTU, 3/4" Steel Plate
When the flat top carries a big share of the menu, a 48-inch plate gives your cooks room to breathe. The Serv-Ware SMGS-48 suits busy breakfast restaurants, burger and cheesesteak shops, cafeterias and catering kitchens that need to cook in volume and keep several items going at once, while keeping the controls as simple as possible.
Four steel U-shaped burners, each rated 30,000 BTU/hr, add up to 120,000 BTU/hr under a 3/4" thick steel plate. Each 12" section has its own manual valve.
What you will notice in day-to-day use
- Room for the rush. Four feet of cooking surface lets you lay down a full order of burgers, a row of pancakes and a pile of onions at the same time.
- Four controls, four temperatures. One manual valve per 12" section means you can heat only what you need during slower hours and save gas.
- Even heat, fast recovery. U-shaped burners spread the flame under each section, and the 3/4" plate keeps a good reserve of heat.
- Always ready to fire. Standing pilots mean the griddle is ready as soon as the cook turns a knob.
- Easy to keep clean. Stainless steel front and sides and a bottom oil collector make daily cleaning straightforward.
Choosing your setup
Gas type: this griddle is offered for natural gas or LP; choose the gas your kitchen uses above. Burner ratings are the same on either gas, and a conversion kit for the other gas is included, so it can be switched later by a qualified installer.
| Gas | Input per burner | Total input | Supply pressure |
|---|---|---|---|
| Natural gas | 30,000 BTU/hr | 120,000 BTU/hr | 4" W.C. |
| LP | 30,000 BTU/hr | 120,000 BTU/hr | 10" W.C. |
Specifications
| Brand | Serv-Ware |
| Model | SMGS-48 |
| Type | Countertop gas griddle, manual controls |
| Burners | 4 x 30,000 BTU/hr steel U-shaped burners |
| Total input | 120,000 BTU/hr |
| Controls | 4 manual valves (one per 12"), standing pilot |
| Griddle plate | 3/4" thick steel |
| Grease management | Oil collector at the bottom |
| Gas type | Natural gas or LP (choose above); conversion kit for the other gas included |
| Gas pressure | 4" W.C. natural gas; 10" W.C. LP |
| Gas line | 3/4" |
| Construction | Stainless steel front and sides; chrome-coated zinc alloy knobs |
| Legs | Heavy-duty adjustable stainless steel |
| Dimensions (W x D x H) | 48" x 29-15/16" x 16" |
| Shipping weight | 415 lb |
Before it arrives
- Gas: 3/4" gas line; have a qualified gas installer make the connection and handle any conversion to the other gas.
- Ventilation: install under a commercial hood following your local code.
- Counter or stand: plan for a sturdy, non-combustible surface at least 48" wide and about 30" deep, and use the adjustable legs to level it.
- Delivery: ships at about 415 lb, so arrange enough hands or a liftgate.
Warranty
One year parts and labor on the entire unit, counted from installation (up to 18 months from shipment), for commercial use in the United States, from Serv-Ware.
Specifications per Serv-Ware data; subject to change by the manufacturer.
