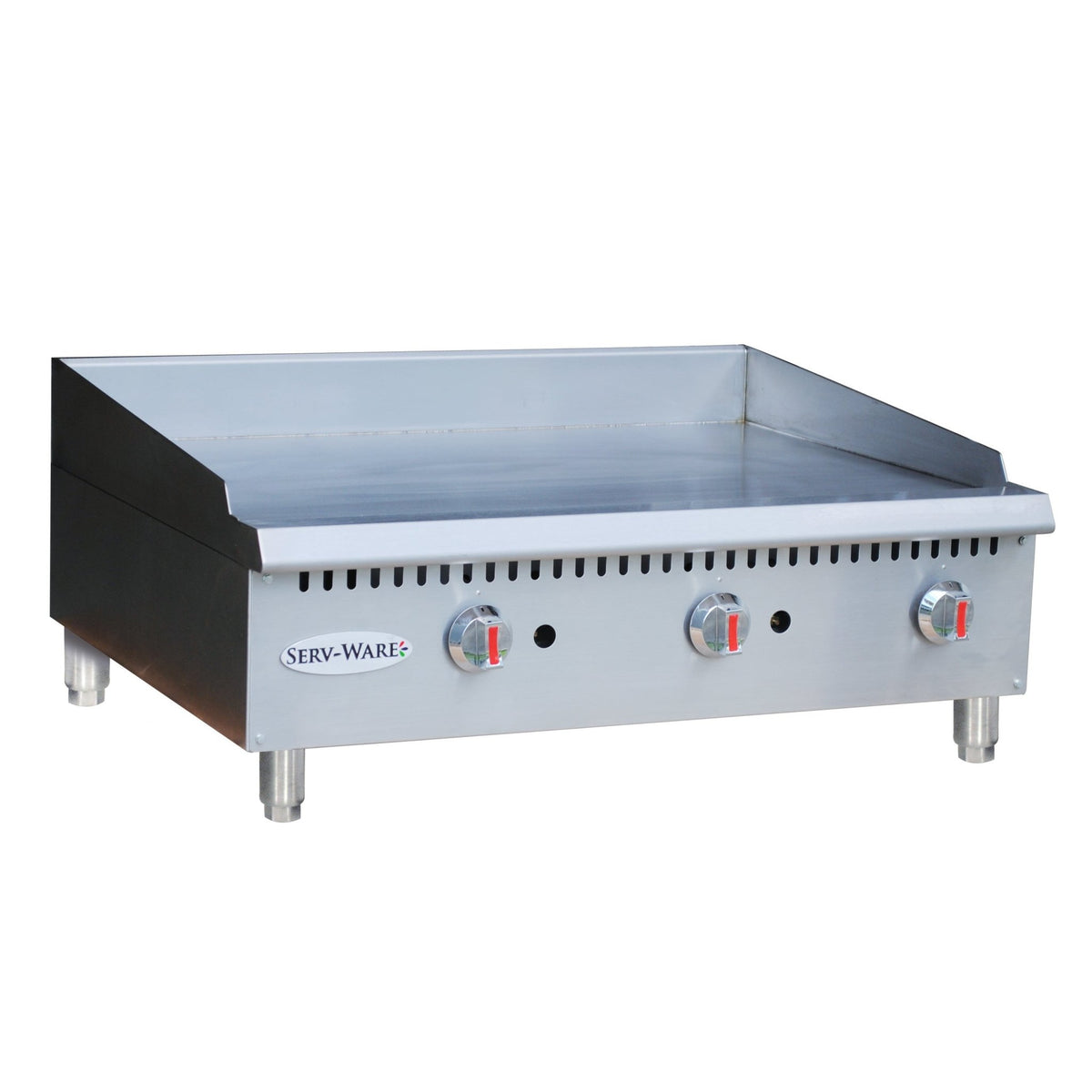

Serv-Ware SMGS-36 36" Countertop Manual Griddle, 3 Burners, 90,000 BTU, 3/4" Steel Plate
Thirty-six inches is the size most independent restaurants end up choosing, and the Serv-Ware SMGS-36 shows why. It gives a diner, burger joint or brunch spot enough flat top to run pancakes, eggs and bacon side by side, yet it still sits on a standard countertop or equipment stand. Simple manual controls keep it easy for any cook to run and easy to service.
Three steel U-shaped burners rated 30,000 BTU/hr each deliver 90,000 BTU/hr in total, with one manual valve for every 12" of the 3/4" thick steel plate.
What you will notice in day-to-day use
- Three independent zones. Run a hot sear zone, a medium zone and a gentle zone for eggs or holding, all on one plate.
- Strong, even output. At 30,000 BTU/hr per burner, the U-shaped burners spread heat across each section and bring the plate back quickly after a heavy load.
- Built for steady use. Stainless steel front and sides, heavy-duty adjustable stainless legs and chrome-coated zinc alloy knobs hold up to a busy line.
- Instant ignition. Standing pilots keep every burner ready to light at the turn of a knob.
- Grease under control. An oil collector at the bottom gathers runoff so closing cleanup takes less time.
Choosing your setup
Gas type: this griddle is offered for natural gas or LP; choose the gas your kitchen uses above. Burner ratings are the same on either gas, and a conversion kit for the other gas is included, so it can be switched later by a qualified installer.
| Gas | Input per burner | Total input | Supply pressure |
|---|---|---|---|
| Natural gas | 30,000 BTU/hr | 90,000 BTU/hr | 4" W.C. |
| LP | 30,000 BTU/hr | 90,000 BTU/hr | 10" W.C. |
Specifications
| Brand | Serv-Ware |
| Model | SMGS-36 |
| Type | Countertop gas griddle, manual controls |
| Burners | 3 x 30,000 BTU/hr steel U-shaped burners |
| Total input | 90,000 BTU/hr |
| Controls | 3 manual valves (one per 12"), standing pilot |
| Griddle plate | 3/4" thick steel |
| Grease management | Oil collector at the bottom |
| Gas type | Natural gas or LP (choose above); conversion kit for the other gas included |
| Gas pressure | 4" W.C. natural gas; 10" W.C. LP |
| Gas line | 3/4" |
| Construction | Stainless steel front and sides; chrome-coated zinc alloy knobs |
| Legs | Heavy-duty adjustable stainless steel |
| Dimensions (W x D x H) | 36" x 29-15/16" x 16-1/4" |
| Shipping weight | 300 lb |
Before it arrives
- Gas: 3/4" gas line; have a qualified gas installer make the connection and handle any conversion to the other gas.
- Ventilation: install under a commercial hood following your local code.
- Counter or stand: plan for a sturdy, non-combustible surface at least 36" wide and about 30" deep, and use the adjustable legs to level it.
- Delivery: ships at about 300 lb, so arrange enough hands or a liftgate.
Warranty
One year parts and labor on the entire unit, counted from installation (up to 18 months from shipment), for commercial use in the United States, from Serv-Ware.
Specifications per Serv-Ware data; subject to change by the manufacturer.
