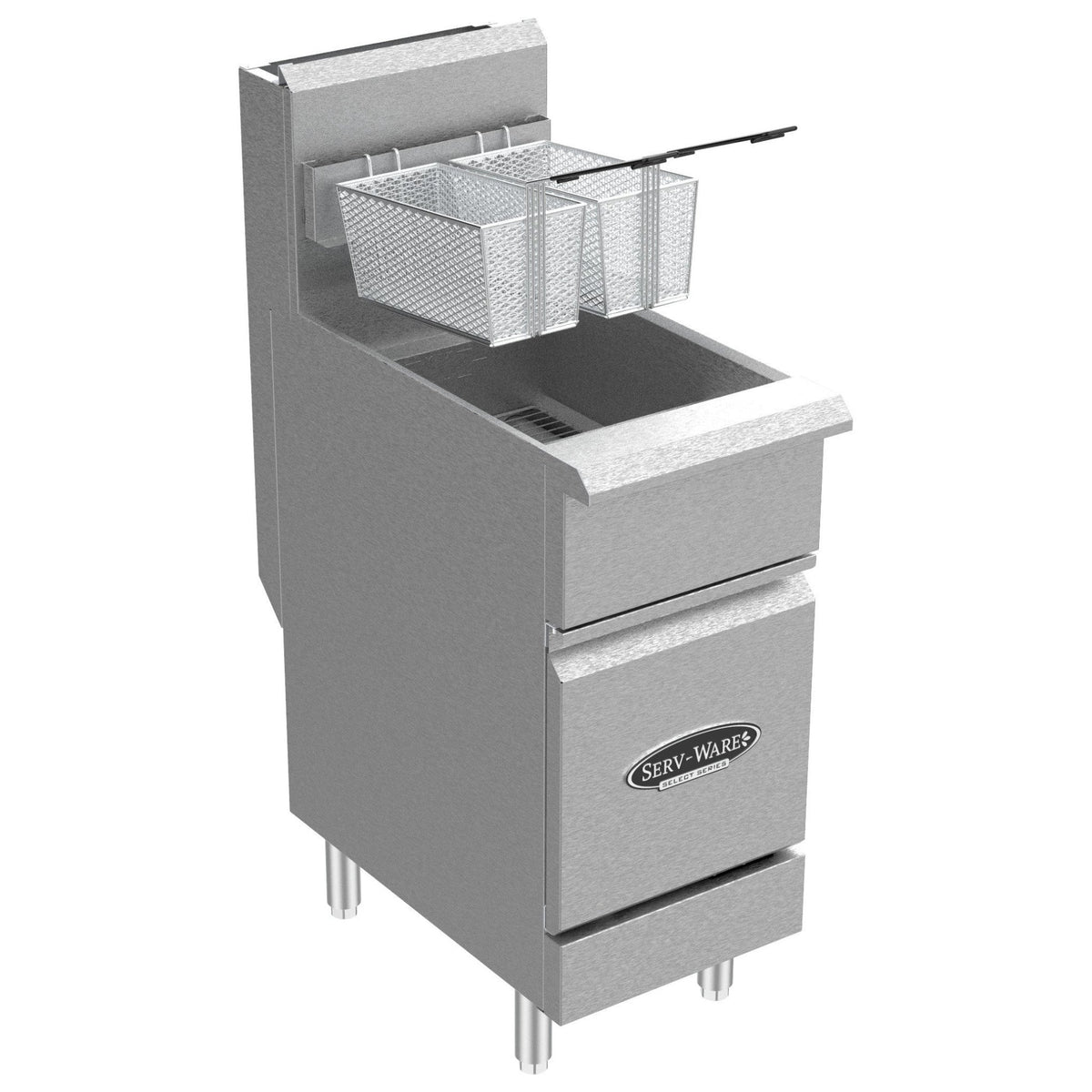

Serv-Ware SGF-50 50 Lb. Floor Fryer, 4 Tubes, 120,000 BTU, 15" Wide, Stainless Steel Fry Tank
The Serv-Ware SGF-50 puts more heat into the same narrow cabinet: four tubes and 50 lb of oil in a fryer just 15-1/2" wide. That makes it a smart pick for burger and chicken shops, sports bars and family restaurants that need faster recovery at the rush but do not have room to go wider.
Each of the 4 heat tubes is rated at 30,000 BTU/hr, for 120,000 BTU/hr in total, and a thermostat sets the oil anywhere from 200°F to 400°F. The stainless steel fry tank has a peened finish and a cold zone below the tubes, where crumbs settle out of the cooking oil instead of scorching.
What you will notice in day-to-day use
- Recovers between loads. Four 30,000 BTU tubes bring the oil back up to temperature quickly after you drop frozen product, so batches come out crisp, not greasy.
- Oil stays cleaner. Debris sinks into the cold zone under the tubes, where it will not burn and darken the oil.
- Closing goes quicker. The 1-1/4" full-port drain valve speeds up draining and filtering, and a drain tube rack comes with the fryer.
- Simple to run. One thermostat dial from 200°F to 400°F; no menus to program or screens to break.
- Built for daily wipe-downs. Stainless steel front, top, header and door take the scrubbing, and the door has a recessed handle.
Choosing your setup
Gas type: choose natural gas or LP above; both versions have the same 120,000 BTU/hr input, size and features. Only the supply pressure differs:
| Gas type | Supply pressure (W.C.) |
|---|---|
| Natural gas | 4" |
| LP (propane) | 10" |
Specifications
| Brand | Serv-Ware |
| Model | SGF-50N (natural gas) / SGF-50L (LP) |
| Type | Gas tube-type floor fryer |
| Oil capacity | 50 lb |
| Heat tubes | 4, 30,000 BTU/hr each |
| Total input | 120,000 BTU/hr |
| Temperature range | 200°F – 400°F, thermostatic |
| Fry tank | Stainless steel, peened finish, cold zone |
| Drain | 1-1/4" full-port drain valve |
| Included | Wire mesh fry baskets, double-rod basket hanger, drain tube rack |
| Gas connection | 1/2" gas inlet; 3/4" gas hose required |
| Supply pressure | 4" W.C. natural gas; 10" W.C. LP |
| Construction | Stainless steel front, top, header and door (integral liner, recessed handle); galvanized steel sides and back |
| Legs | 6" stainless steel, 1" adjustment; casters optional (5SB-3535) |
| Dimensions (W x D x H) | 15-1/2" x 30-1/4" x 46-1/2" |
| Shipping weight | 170 lb |
| Certifications | Conforms to UL 471, CSA C22.2 and NSF 7 standards |
Before it arrives
- Gas: 1/2" inlet with a 3/4" gas hose required; have a qualified installer make the connection. If you add the optional casters, use a flexible commercial gas hose with a restraint cable.
- Ventilation: install under a commercial hood following your local code and fire-suppression requirements.
- Space: the fryer is 15-1/2" wide and about 30-1/4" deep; leave room in front to drain oil into a filter or disposal unit.
Warranty
1 year parts and labor on the entire unit, plus a 2-year parts-only warranty on the fry pot, from Serv-Ware. Coverage runs from the installation date (up to 18 months from shipment) for commercial use in the United States.
Specifications per Serv-Ware data; subject to change by the manufacturer.
