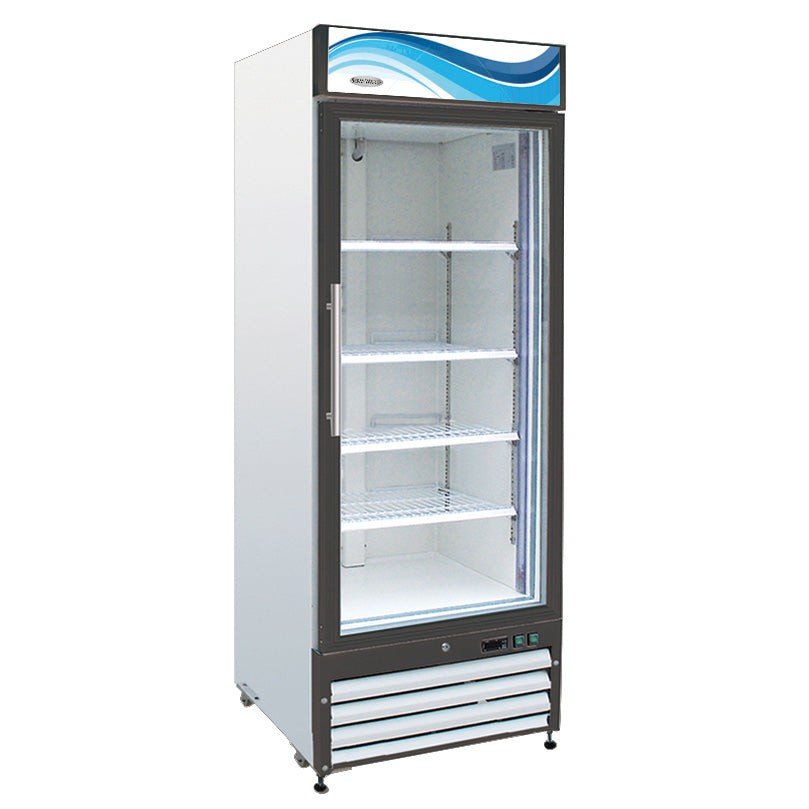

When a small cooler fills up by lunchtime, the Serv-Ware GR23-HC is the step up. This 27-inch single glass door merchandiser holds 23 cu. ft. in a full-height white cabinet, making it a good match for pizzerias, sandwich shops, gyms and corner stores that want a real drink wall from a single door.
The 23 cu. ft. cabinet holds 33°F – 41°F with a bottom-mounted 3/8 HP compressor rated at 1,670 BTU/h, using R290 hydrocarbon refrigerant. Automatic defrost runs every 6 hours, and the unit runs on 115V with a standard NEMA 5-15P plug.
What you will notice in day-to-day use
- More facings per door. Four epoxy-coated wire shelves give you room for several rows of bottles and cans, so customers find what they want quickly.
- A lit-up display. The LED interior lamp and illuminated top panel draw the eye even in a busy, bright storefront.
- Doors that look after themselves. The self-closing door holds open past 90° while you restock and swings shut afterwards.
- Easy temperature checks. Read the digital LED display on the electronic thermostat at a glance during opening and closing checks.
- Efficient glass and insulation. Low-e double pane glass plus CFC-free foam help keep the cold in and the glass clear.
Specifications
| Brand | Serv-Ware |
| Model | GR23-HC |
| Type | 1-door swing glass door merchandiser refrigerator, bottom-mount compressor |
| Storage capacity | 23 cu. ft. |
| Temperature range | 33°F – 41°F |
| Doors | 1 self-closing swing, low-e double pane glass |
| Shelves | 4 per door (4 total), epoxy-coated wire |
| Controls | Electronic thermostat with digital LED temperature display |
| Refrigerant | R290 (hydrocarbon), 3 oz. charge |
| Compressor | 3/8 HP, bottom mounted |
| Refrigeration capacity | 1,670 BTU/h |
| Defrost | Automatic, every 6 hours |
| Exterior | White powder-coated steel |
| Interior | White powder-coated steel |
| Insulation | CFC-free foamed-in-place polyurethane |
| Lighting | LED interior lamp, illuminated top sign panel |
| Electrical | 115V, 60 Hz, 1 phase, 3 A, NEMA 5-15P plug |
| Dimensions (W x D x H) | 27" x 32" x 81-1/2" |
| Shipping weight | 340 lb |
| Certifications | UL Safety and UL Sanitation; conforms to UL 471, CSA C22.2 and NSF 7; Energy Star |
Before it arrives
- Power: standard 115V outlet with a NEMA 5-15 receptacle.
- Placement: indoors, in a climate-controlled room with good airflow and away from heat sources.
- Casters: the casters ship in the box and are installed on site.
- Delivery: about 27" wide, 32" deep and 81-1/2" tall, shipping around 340 lb, so measure doorways and plan for a liftgate.
Warranty
3 years parts and labor on the entire unit, plus an additional 5-year warranty on the compressor (part only), from Serv-Ware. Coverage applies to commercial use in the United States.
Specifications per Serv-Ware data; subject to change by the manufacturer.
