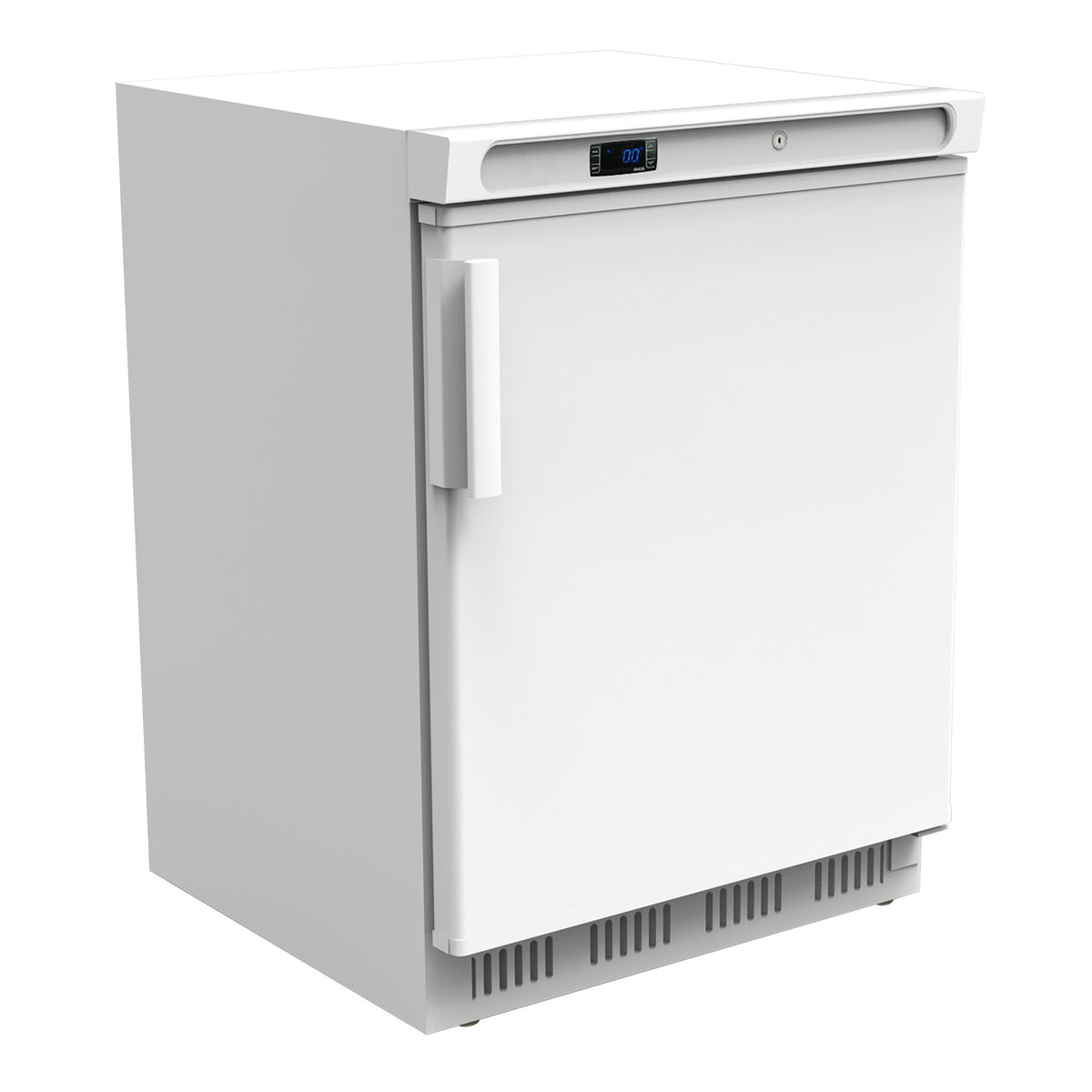

Serv-Ware ER5-HC 24" Compact One-Door Refrigerator, 5 Cu. Ft., Bottom Mount, White, R290, 115V
Not every operation needs a full-height reach-in. The Serv-Ware ER5-HC is a compact, 33" tall one-door refrigerator that tucks under a counter, beside a prep station or behind a bar, giving you a dedicated 5 cu. ft. of cold storage right where the work happens. It is a good fit for coffee bars, small offices and break rooms, bed-and-breakfasts, food trucks and satellite stations that just need milk, garnishes or grab-and-go items close at hand.
A 1/8 HP bottom-mounted compressor using R290 hydrocarbon refrigerant keeps the cabinet between 33°F and 41°F. Three adjustable epoxy coated shelves organize the interior, and the unit runs on a standard 115V outlet at only 2 A.
What you will notice in day-to-day use
- Small footprint, real storage. At about 23-5/8" wide and 23-3/8" deep, it fits spaces a full reach-in never could while still holding 5 cu. ft.
- Quick temperature check. The LED temperature display shows the box temperature without opening the door.
- Flexible shelving. Three adjustable epoxy coated shelves can be moved to fit bottles, quarts or shallow pans.
- Easy to slide out. Two rear rollers and two adjustable front legs let you level the unit and roll it out to clean behind it.
- Works with your layout. The door, handle and snap-in gasket are field reversible, and a door lock comes standard.
- Consistent cooling. An interior airflow back guard keeps product off the back wall so air keeps moving around everything inside.
Specifications
| Brand | Serv-Ware |
| Model | ER5-HC |
| Type | Compact refrigerator, 1 door, bottom mount, Value Series |
| Storage capacity | 5 cu. ft. |
| Temperature range | 33°F – 41°F |
| Shelves | 3 adjustable, epoxy coated wire |
| Compressor | 1/8 HP, bottom mounted |
| Refrigeration capacity | 409 BTU/h |
| Refrigerant | R290 (1.23 oz.) |
| Defrost | Every 6 hours |
| Exterior | White painted steel finish, heavy duty steel frame |
| Interior | Food-safe white ABS |
| Insulation | CFC-free foam |
| Door | Field reversible door and handle, snap-in gasket, door lock |
| Display | LED temperature monitoring |
| Legs | 2 rear rollers, 2 adjustable front legs |
| Electrical | 115V, 60 Hz, single phase, 2 A |
| Plug | NEMA 5-15P |
| Dimensions (W x D x H) | 23-5/8" x 23-3/8" x 33" |
| Shipping weight | 109 lb |
| Certifications | ETL/UL safety and ETL/UL sanitation approved; conforms to UL 471, CSA C22.2 and NSF 7 |
Before it arrives
- Power: plugs into a standard 115V outlet with a NEMA 5-15 receptacle.
- Location: use it indoors in a climate-controlled space with room for air to circulate, and keep it away from ovens, fryers and other heat sources.
- Under-counter fit: the unit is 33" tall, so measure the opening under your counter and leave a little space around it for airflow.
Warranty
1 year parts and labor on the entire unit, including the compressor, from Serv-Ware, counted from installation (up to 18 months from shipment). Labor coverage applies in the United States, for commercial use.
Specifications per Serv-Ware data; subject to change by the manufacturer.
