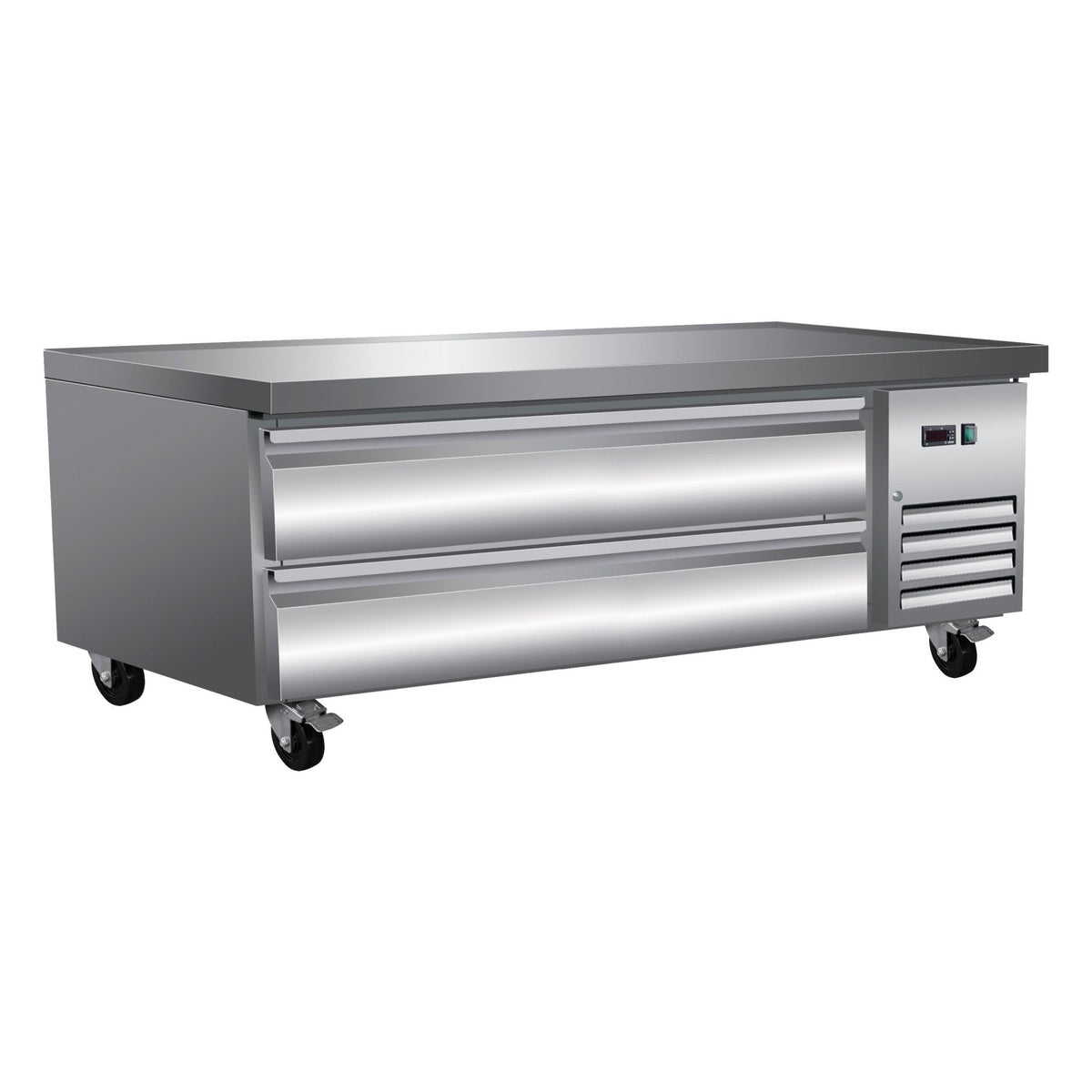

Serv-Ware CB60-HC 60" Refrigerated Chef Base, 2 Drawers, 8.8 Cu. Ft., R290, 115V
For a busy 60-inch line, the Serv-Ware CB60-HC gives you a sturdy equipment stand and a refrigerator in one footprint. Sit a griddle and charbroiler side by side on top and keep the ingredients for both in the drawers underneath. It is a natural fit for grills, sports bars and family restaurants with a full-length hot line.
Two drawers give you 8.8 cu. ft. of refrigerated storage at 33°F – 41°F, cooled by a 1/5 HP compressor with R290 hydrocarbon refrigerant. It runs on 115V at only 2.1 amps through a NEMA 5-15P plug, and stands about 26" tall so your equipment stays at a comfortable working height.
What you will notice in day-to-day use
- Two jobs, one footprint. It replaces a separate equipment stand and a reach-in, freeing floor space elsewhere in the kitchen.
- Room for a wide line. The 62" overall top is rated for 450 lb of countertop equipment.
- Clear temperature control. An electronic thermostat with a digital LED readout keeps food in the 33°F – 41°F range you set.
- Defrost takes care of itself. Automatic defrost every six hours and automatic condensate evaporation reduce routine upkeep.
- Doors that seal. Magnetic gaskets help each drawer close snugly against the cabinet.
Specifications
| Brand | Serv-Ware |
| Model | CB60-HC |
| Type | Refrigerated chef base, drawer style |
| Storage capacity | 8.8 cu. ft. |
| Drawers | 2 |
| Temperature range | 33°F – 41°F |
| Top load capacity | 450 lb |
| Controls | Electronic thermostat, digital LED temperature display |
| Compressor | 1/5 HP |
| Refrigerant | R290 (hydrocarbon), 2.82 oz |
| Cooling capacity | 3,200 BTU/h |
| Defrost | Automatic, every 6 hours; automatic condensate evaporation |
| Electrical | 115V / 60 Hz / 1 phase, 2.1 A, NEMA 5-15P plug |
| Construction | Stainless steel exterior, interior and framework; CFC-free foam insulation; magnetic gaskets |
| Dimensions (W x D x H) | 62" x 31-7/8" x 26" |
| Shipping weight | 310 lb |
| Casters | Included, shipped uninstalled |
Before it arrives
- Power: a standard 115V grounded outlet with a NEMA 5-15P receptacle near the unit.
- Casters: the casters ship loose; fit them before the base goes into position and before any equipment goes on top.
- Location: install indoors in a climate-controlled space with good airflow; the manufacturer advises against placing it next to a high-heat source without proper air circulation.
- Delivery: the overall size is 62" wide and 31-7/8" deep, with a shipping weight of about 310 lb, so check doorways and plan a few hands for unloading.
Warranty
Three years parts and labor on the entire unit (United States, commercial use), plus an additional five years on the compressor (part only), from Serv-Ware.
Specifications per Serv-Ware data; subject to change by the manufacturer.
