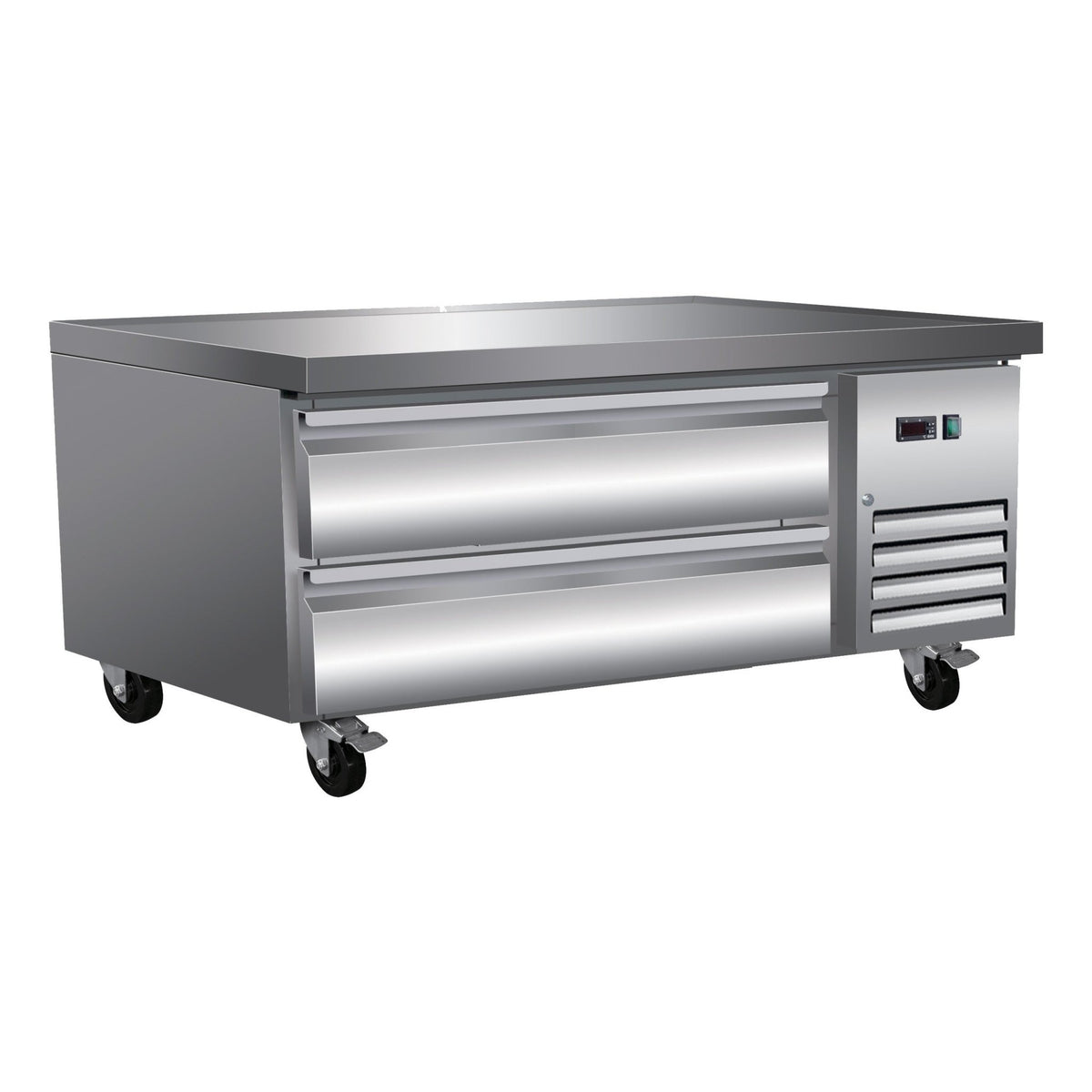

Serv-Ware CB48-HC 48" Refrigerated Chef Base, 4 Drawers, 6.5 Cu. Ft., R290, 115V

The Serv-Ware CB48-HC turns a 48-inch run of countertop equipment into a cooking station with its own cold storage built in. It suits burger joints, breakfast spots and taquerias that run a 36" or 48" griddle and want ingredients stocked right below the plate instead of across the kitchen.

The cabinet offers 6.5 cu. ft. of storage across four drawers, held at 33°F – 41°F by a 1/5 HP compressor on R290 refrigerant. Power is a simple 115V, 2.1 amp connection with a NEMA 5-15P plug, and the whole unit measures 50" wide by 31-7/8" deep.

What you will notice in day-to-day use

• Stock the line once. Drawers hold a shift’s worth of proteins and prep under the equipment, so cooks are not leaving the station mid-rush.
• Built to hold equipment. A stainless steel frame supports up to 450 lb on top.
• Temperature at a glance. The electronic thermostat and digital LED display make it easy to check and adjust the setting during service.
• Hands-off defrost. The unit defrosts itself every six hours and evaporates condensate automatically.
• Eco-friendly cooling. R290 hydrocarbon refrigerant and CFC-free foam insulation.

Specifications

Before it arrives

• Power: a standard 115V grounded outlet with a NEMA 5-15P receptacle near the unit.
• Casters: the casters ship loose; fit them before the base goes into position and before any equipment goes on top.
• Location: install indoors in a climate-controlled space with good airflow; the manufacturer advises against placing it next to a high-heat source without proper air circulation.
• Delivery: the overall size is 50" wide and 31-7/8" deep, with a shipping weight of about 270 lb, so check doorways and plan a few hands for unloading.

Warranty

Three years parts and labor on the entire unit (United States, commercial use), plus an additional five years on the compressor (part only), from Serv-Ware.

Specifications per Serv-Ware data; subject to change by the manufacturer.
