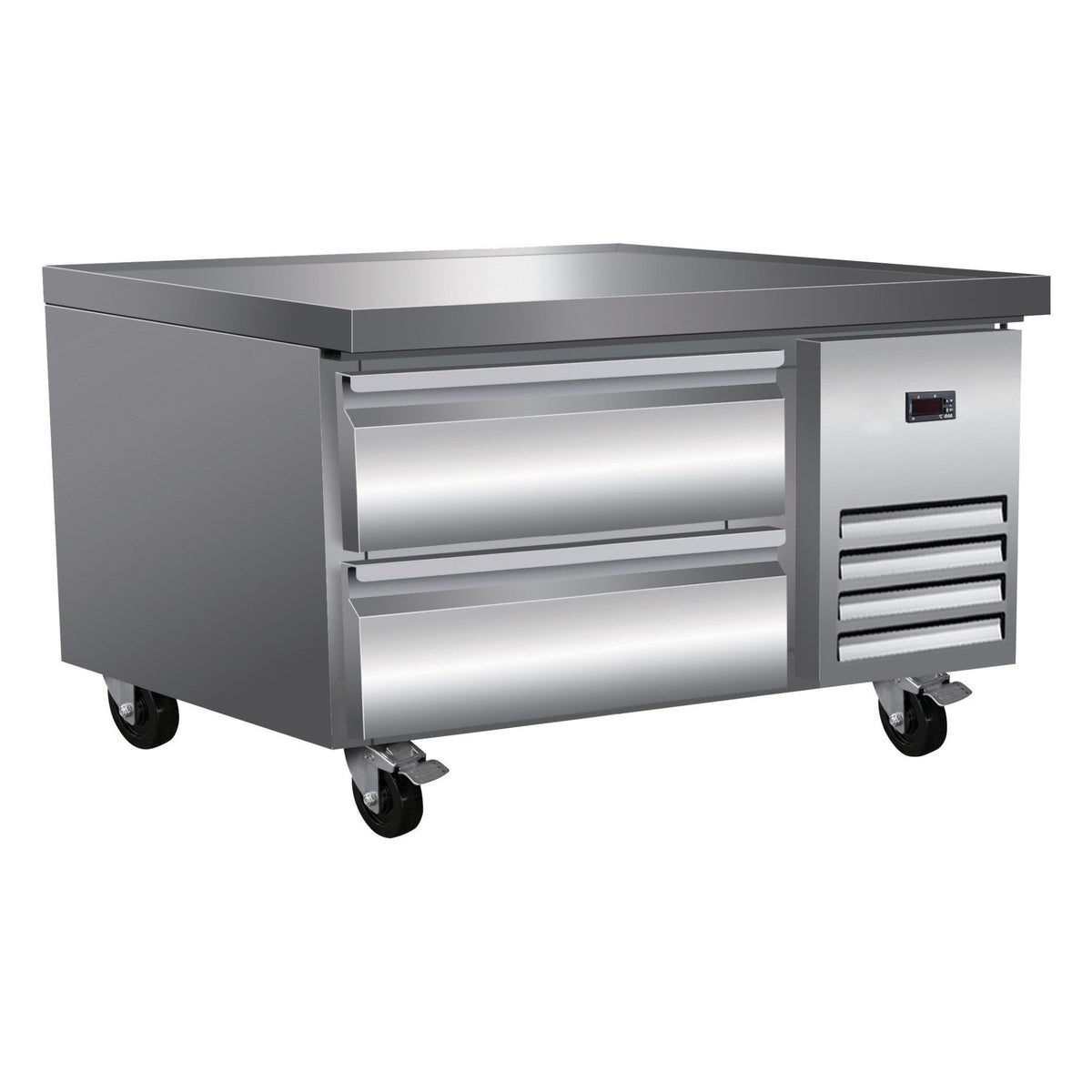

Serv-Ware CB36-HC 36" Refrigerated Chef Base, 2 Drawers, 5.1 Cu. Ft., R290, 115V

Short on line space but tired of walking to the walk-in for every refill? The Serv-Ware CB36-HC puts refrigerated drawers directly under your griddle or charbroiler, so proteins and prepped ingredients sit an arm’s length from where they are cooked. At 38" overall it is the compact choice for food trucks, small diners, cafés and tight hot lines.

Inside is 5.1 cu. ft. of refrigerated storage held between 33°F and 41°F by a 1/5 HP compressor running R290 hydrocarbon refrigerant. It plugs into a standard 115V outlet (NEMA 5-15P) and draws just 2.1 amps, so it does not need a dedicated high-amp circuit.

What you will notice in day-to-day use

• Cold product where you cook. Two drawers keep burger patties, chicken and sliced vegetables right under the cooking surface, cutting steps on every ticket.
• A top that carries real weight. The stainless steel framework is rated for 441 lb, enough for a countertop griddle, hot plate or fryer.
• Easy to read, easy to set. An electronic thermostat with a digital LED display shows the cabinet temperature at a glance.
• Less maintenance. Automatic defrost every six hours and automatic evaporation of condensate mean no drip pan to empty.
• Tight seal, cold food. Magnetic gaskets help each drawer close firmly against the cabinet.

Specifications

Before it arrives

• Power: a standard 115V grounded outlet with a NEMA 5-15P receptacle near the unit.
• Casters: the casters ship loose; fit them before the base goes into position and before any equipment goes on top.
• Location: install indoors in a climate-controlled space with good airflow; the manufacturer advises against placing it next to a high-heat source without proper air circulation.
• Delivery: the overall size is 38" wide and 31-7/8" deep, with a shipping weight of about 225 lb, so check doorways and plan a few hands for unloading.

Warranty

Three years parts and labor on the entire unit (United States, commercial use), plus an additional five years on the compressor (part only), from Serv-Ware.

Specifications per Serv-Ware data; subject to change by the manufacturer.
