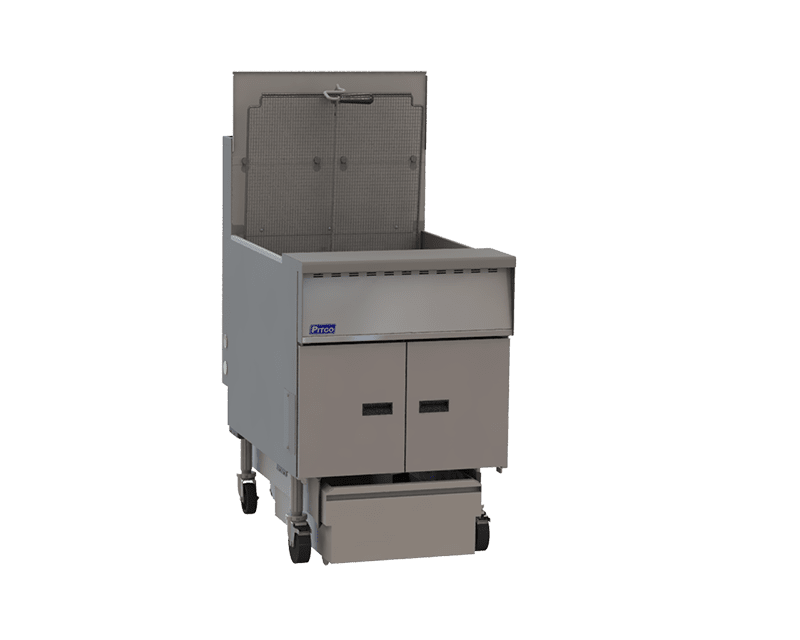

Pitco SGM24 MegaFry Gas Floor Fryer, 140-150 lb Oil Capacity, 165,000 BTU

The Pitco SGM24 is a MegaFry high-production gas floor fryer with 140-150 lb of oil over a 24" x 24" frying area, rated at 165,000 BTU/hr and available for natural gas or liquid propane (select gas type). It cooks up to 145.6 lb of fries per hour.

Built for Maximum Output

The MegaFry SGM24 is Pitco's highest-capacity fryer: a 24" x 24" frypot holding 140-150 lb of oil, fired at 165,000 BTU/hr with Solstice burner technology at 62% thermal efficiency. It produces up to 145.6 lb of fries per hour, about 36% more than an SSH75R, for operations where one standard fryer simply can't keep up.

Solstice burner technology delivers dependable heat transfer without complex power blowers. Matchless ignition, a drain valve interlock and a solid state thermostat with melt cycle and boil-out are standard, and the integrated gas valve shuts off all gas if the oil overheats.

Why Operators Choose It

• Massive production: up to 145.6 lb of fries per hour
• Flexible baskets: four small, two small + one large, or two large basket configurations
• Durable build: peened stainless tank; stainless steel front, door, sides and splashback; heavy-duty door hinges
• Safety: drain valve interlock and high-temperature limit
• Filtration ready: optional filter drawer serves up to four MegaFry fryers

Controls

Solid state thermostat with melt cycle and boil-out is standard; digital controller, Intellifry 12-button computer and OneTouch controls are available, with an optional back-up thermostat.

Ideal For

• High-volume chicken, seafood and fry programs
• Stadiums, arenas, theme parks and fairs
• Commissaries and central kitchens
• Large-batch frying of oversized products

Specifications

Installation & Utility Requirements

• Gas connection: 3/4" NPT rear gas inlet
• Supply pressure: natural gas 7-10" W.C. / LP 11-13" W.C. at the store supply; burner manifold set to 4" W.C. (NG) or 10" W.C. (LP). Size the gas line so pressure holds with every appliance on the line at full fire.
• Electrical: 115V/60 Hz cord with NEMA 5-15P plug for ignition and controls
• Clearances: 6" from combustible construction at sides and rear (0" from non-combustible); 30" minimum clear aisle in front; do not curb mount
• Ventilation: install under a commercial exhaust hood; do not restrict flue gases or place hood drains over the flue
• Mobile installs: fryers on casters (and any fryer with basket lifts) must use a flexible gas hose with restraining cable per CSA/AGA requirements

What's Included

• Two large baskets (A4514702)
• Tube screen
• Removable basket hanger(s)
• Drain line clean-out rod and cleaning brush
• Fryer cleaner sample packet

Factory Options (Additional Cost)

• Digital, 12-button computer or OneTouch controls
• Back-up thermostat
• Filter drawer system (FD-MEGA)
• Stainless steel back
• 11" adjustable locking casters
• Flexible gas hose with quick disconnect
• Tank cover
• Splash back with submerger screen
• Small-basket configurations

Warranty

Pitco warranty: 1-year Limited Parts & Labor. Use a qualified installer and register the fryer with Pitco after installation to keep coverage in force.

Specifications per Pitco data; subject to change by the manufacturer. Contact us for configuration help and control upgrades.
