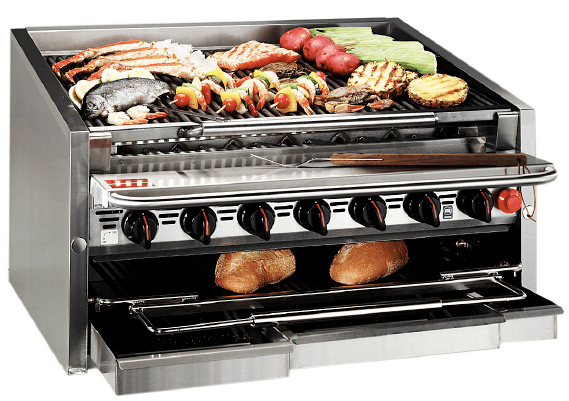

MagiKitch'n CM-SMB-672 72" Countertop Ceramic Coal Charbroiler, 16 Burners, 240,000 BTU
The biggest of the counter-height ceramic coal broilers, the MagiKitch'n CM-SMB-672 is for kitchens where the grill never really goes quiet: large steakhouses, stadium and banquet kitchens, and Brazilian or barbecue concepts. It fits on work tables, counters or properly insulated refrigerated and freezer bases, keeping the line compact even at 72" wide.
Sixteen all-stainless steel burners deliver 240,000 BTU/hr in total (70 kW) beneath a ceramic coal screen, covering 1,704 sq. in. of grid. Three crumb trays sit below, and each burner is regulated by its own front control.
What you will notice in day-to-day use
- Volume without a second grill. 1,704 sq. in. of grid across three sections handles banquet-size batches or a packed Saturday on one unit.
- Run only what you need. Sixteen individual burner controls let you idle sections between rushes.
- Coal-style flavor. The ceramic coal screen gives the traditional coal-bed style of charbroiling with the convenience of gas.
- Durable top grids. Free floating 1/2" steel rods expand without warping, and the quick lift handle and E-Z Tilt design make grease drain to the front.
Choosing your setup
Gas type: choose natural gas or liquid propane above to match your kitchen's supply. A radiant version, CM-RMB-672, is also offered.
| Gas | Supply pressure | Burner pressure |
|---|---|---|
| Natural gas | 7–10" W.C. | 4" W.C. |
| Liquid propane | 11–13" W.C. | 10" W.C. |
Specifications
| Brand | MagiKitch'n |
| Model | CM-SMB-672 |
| Type | Countertop ceramic coal charbroiler |
| Total input | 240,000 BTU/hr (70 kW) |
| Burners | 16 stainless steel, individual front controls |
| Heat surface | Ceramic coal screen |
| Cooking area | 1,704 sq. in. |
| Top grid | Floating steel rod grids in three sections |
| Crumb trays | 3 |
| Construction | Insulated double-walled stainless cabinet |
| Gas connection | 3/4" NPT supply, 3/4" regulator shipped unattached |
| Footprint (W x D) | 72" x 35-1/2" (counter space) |
| Net weight | 950 lb |
| Shipping weight | 1,078 lb |
| Installation | Indoor only; professional installation required |
| Certifications | CSA Flame, CSA Star, NSF, CE, Made in USA |
Before it arrives
- Gas: a qualified installer connects the 3/4" NPT supply; the included regulator goes on before the gas line is connected.
- Hood and clearances: install under a commercial hood per local code and keep the flue clear; not for flush mounting; keep 6" sides, 8" rear and 4" floor from combustibles (0" to non-combustible), plus 30" in front.
- Base: a sturdy work table, counter or properly insulated refrigerated base; a matching equipment stand is optional.
- Delivery: about 1,078 lb crated (38" x 46" x 84" H x W x L); plan for a liftgate or dock.
Warranty
2 years parts and labor from MagiKitch'n.
Specifications per MagiKitch'n data; subject to change by the manufacturer.
