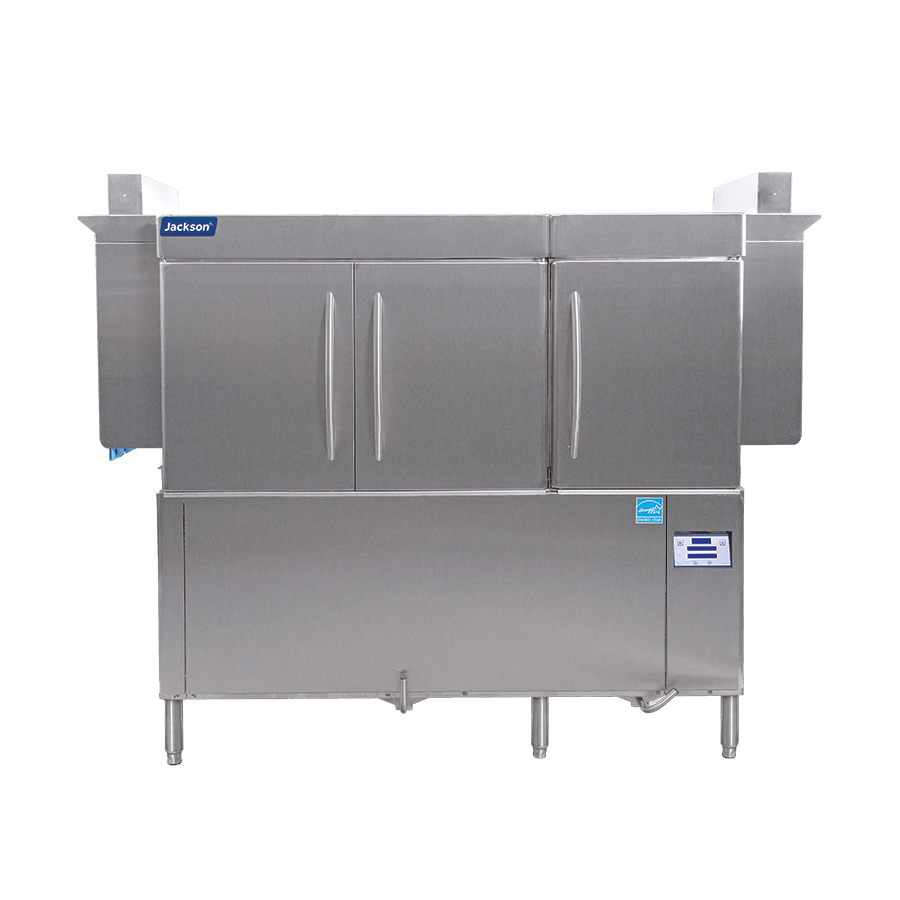

Jackson RackStar 66CE High Temp Conveyor Dishwasher, 224 Racks/Hr, 22" Pre-Wash and Built-In Booster
When plates come back heavily soiled, the Jackson RackStar 66CE gives you a head start: a 22" pre-wash sits in front of its 44" wash tank. It is a high temperature conveyor with electric tank heat, suited to nursing care facilities, busy restaurants and correctional kitchens that need a lot of clean ware fast.
Jackson rates it for 224 racks per hour. The rinse uses 0.38 gallons per rack on Econo or 0.65 on Turbo. A built-in 24 kW booster with a 70°F rise lifts 110°F supply water to the 180°F final rinse, and the chamber clears 19-3/4" (25" with the optional high hood).
What you will notice in day-to-day use
- Pre-wash does the rough work. Three upper and one lower wash arm in the pre-wash knock food off before the rack reaches the main wash.
- Light on water. Econo rinse runs at 0.38 gallons per rack, and the machine is ENERGY STAR® certified.
- Self-cleaning wash arms. The WISR® system and the arched Rainbow Rinse™ arm keep spray coverage even.
- A cooler dish room. Double-wall insulated doors keep heat inside the machine and the wash water hot.
- Smart when idle. EnergyGuard™ controls and a vent fan that shuts off when idle save energy between meal periods.
Choosing your setup
Electrical: choose the voltage and phase above that match your service. Standard hookup is dual-point with a separate booster feed; single-point with the onboard booster is optional, and 460V is listed as a factory option. Amperage figures were not in the Jackson data we had, so have your electrician size circuits from the installation documents.
Direction: the conveyor runs left-to-right or right-to-left as you face it. Choose the direction above that matches the flow from your soiled table to your clean table.
Specifications
| Brand | Jackson |
| Model | RackStar 66CE |
| Type | High temperature sanitizing rack conveyor dishwasher, 22" pre-wash |
| Racks per hour | 224 |
| Water use | Econo 0.38 gal/rack; Turbo 0.65 gal/rack |
| Final rinse | 180°F |
| Booster heater | Built-in, 24 kW, 70°F rise |
| Tank heat | Electric |
| Wash pump | 3.0 HP stainless steel, self-draining |
| Chamber clearance | 19-3/4" (25" high hood) |
| Incoming water | 110°F min., 1/2" NPT |
| Drain | 1-1/2" NPT |
| Electrical options | 208V / 1-Phase, 208V / 3-Phase, 230V / 1-Phase, 230V / 3-Phase |
| Dimensions (W x D x H) | 86" x 30" x 68-1/2"; 66" between tables |
| Weight | 1,115 lb (as listed by Jackson) |
| Certifications | ENERGY STAR®; NSF/ANSI 3 (ETL Sanitation) |
Before it arrives
- Book a licensed electrician for dedicated circuits, including the separate booster connection.
- Supply 110°F water to the 1/2" inlet. Keep the 1-1/2" drain full size, pitched 1/4" per foot, with an air gap.
- Plan exhaust ductwork to the vent connections, 4" of wall clearance and a delivery path for an 86" wide machine.
Warranty
One-year parts and labor warranty from Jackson.
Specifications per Jackson WWS data; subject to change by the manufacturer.
