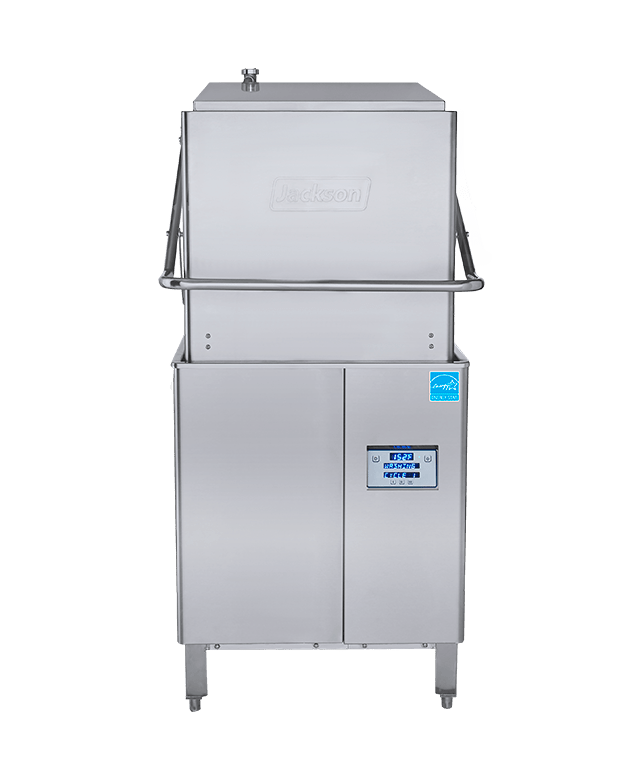

Jackson DynaStar High Temp Door-Type Dishwasher, 62 Racks/Hr, Built-In 40-70°F Rise Booster
The Jackson DynaStar is a high temperature door-type dishwasher for kitchens that need volume without stepping up to a conveyor. Its built-in booster handles the final rinse heat, making it a strong fit for full-service restaurants, casinos and busy bars.
On its quickest cycle it clears up to 62 racks per hour (57 at NSF-rated load time), roughly 1,550 dishes or 2,232 glasses. A cycle takes 58 seconds, and the Econo rinse setting uses only 0.70 gallons of water per rack (0.89 on Turbo). The 40-70°F rise booster lifts incoming water to the 180°F final rinse, and the chamber offers 17-1/2" of clearance.
What you will notice in day-to-day use
- Close the door, it starts. The cycle begins as soon as the door comes down, so staff never hunt for a button.
- Steady rinse pressure. A pumped rinse evens out building pressure, and you can switch between Econo and Turbo rinse.
- Three timed cycles. Run 58 seconds for everyday loads, or 108 or 238 seconds for heavier soil.
- Problems flagged early. The LED display shows temperatures, and onboard diagnostics speed up service.
- Thorough washing. The triple wash arm and stainless nozzles cover the whole rack evenly.
- Grows with your kitchen. It converts between straight-through and corner layouts, and between three-phase and single-phase power, with a kit.
Choosing your setup
Electrical: choose the voltage and phase above that match your service. The figures below are for the standard single-point connection with the built-in booster. A dual-point connection and 460V three-phase are listed as factory options.
| Electrical service | Total load | Min. circuit ampacity | Max. overcurrent protection |
|---|---|---|---|
| 208V / 1-Phase | 68.8 A | 70.1 A | 75.0 A |
| 208V / 3-Phase | 42.2 A | 43.4 A | 45.0 A |
| 230V / 1-Phase | 77.1 A | 78.4 A | 80.0 A |
| 230V / 3-Phase | 47.0 A | 48.2 A | 50.0 A |
Specifications
| Brand | Jackson |
| Model | DynaStar |
| Type | High temperature sanitizing door-type dishwasher |
| Racks per hour | 62 (57 at NSF load time) |
| Dishes / glasses per hour | 1,550 / 2,232 |
| Cycle times | 58, 108 or 238 seconds |
| Water use | 0.70 gal per rack Econo (0.89 Turbo); 43.40 gal per hour Econo |
| Wash / rinse temperature (min.) | 150°F / 180°F |
| Booster heater | Built-in, 40-70°F rise, 1.66 gal tank |
| Tank heat | Electric; 8.0 gal wash tank |
| Wash pump | 1 HP stainless steel |
| Chamber clearance | 17-1/2" |
| Incoming water | 110°F, 15-65 PSI, 1/2" NPT |
| Drain | 1-1/2" NPT |
| Electrical options | 208V or 230V, 1- or 3-Phase |
| Dimensions (W x D x H) | 28-3/4" x 34" x 62-1/8" |
| Height with door open | 75-3/8" |
| Shipping weight | 366 lb |
| Certifications | ENERGY STAR®; NSF/ANSI 3 (ETL Sanitation) |
Before it arrives
- Have a licensed electrician run a dedicated circuit sized from the table above. All utilities connect at a single point.
- Supply 110°F water at 15-65 PSI. Thanks to the pumped rinse, a pressure regulator is only needed above 65 PSI. Jackson recommends a tank-type water heater rather than a tankless one.
- Check your local code for a hood. A built-in control switches the vent fan off when the machine sits idle.
- Allow 4-1/4" from the wall and 75-3/8" of height with the door up. The crated unit weighs 366 lb.
What's included
- Front and side stainless steel dress panels
- Adjustable bullet feet
Warranty
One-year parts and labor warranty from Jackson.
Specifications per Jackson WWS data; subject to change by the manufacturer.
