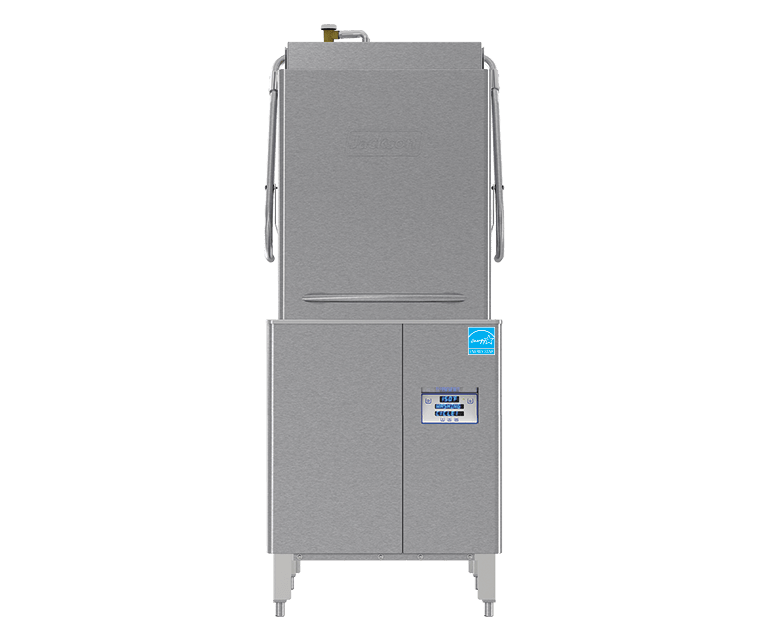

Jackson DynaStar HH-E High Temp Door-Type Dishwasher, 62 Racks/Hr, 27" Tall Chamber Pot Washer
Stock pots, sheet pans and tall hotel pans usually mean a trip to the sink. The Jackson DynaStar HH-E changes that with a 27" tall chamber and dual certification as both a dishwasher and a potwasher on every cycle. It is a high temperature door-type machine for scratch kitchens, catering operations, casinos and institutional kitchens that wash cookware as often as plates.
It runs up to 62 racks per hour (57 at NSF-rated load time), or about 1,550 dishes and 2,232 glasses, with a 58-second standard cycle. Econo rinse uses 0.72 gallons per rack and Turbo uses 0.89. A built-in 40-70°F rise booster produces the 180°F final rinse, and a 2 HP wash pump pushes water through the triple wash arm system.
What you will notice in day-to-day use
- Pots and dishes in one machine. Certified for both duties at every cycle setting, so the same unit covers the line and the dining room.
- Room for the big stuff. The 27" vertical clearance takes tall pans and pots that will not fit a standard door-type.
- Extra cleaning muscle. A 2 HP stainless pump and a triple wash arm system attack baked-on residue.
- Pick the cycle. Choose 58, 108 or 238 seconds based on how dirty the load is.
- Starts as the door drops. Door-actuated start and automatic tank fill keep the routine simple for new staff.
- Easy to monitor. A digital LED temperature display and onboard diagnostics show what the machine is doing.
Choosing your setup
Electrical: choose the voltage and phase above that match your building. The numbers below are for the standard single-point connection with booster. 460V three-phase and dual-point wiring are factory options.
| Electrical service | Total load | Min. circuit ampacity | Max. overcurrent protection |
|---|---|---|---|
| 208V / 1-Phase | 75.9 A | 78.9 A | 90.0 A |
| 208V / 3-Phase | 49.3 A | 52.3 A | 60.0 A |
| 230V / 1-Phase | 83.0 A | 85.8 A | 90.0 A |
| 230V / 3-Phase | 52.9 A | 55.6 A | 60.0 A |
Specifications
| Brand | Jackson |
| Model | DynaStar HH-E |
| Type | Tall chamber high temperature sanitizing door-type dishwasher / potwasher |
| Racks per hour | 62 (57 at NSF load time) |
| Dishes / glasses per hour | 1,550 / 2,232 |
| Cycle times | 58, 108 or 238 seconds |
| Water use | 0.72 gal per rack Econo (0.89 Turbo); 44.64 gal per hour Econo |
| Wash / rinse temperature (min.) | 150°F / 180°F |
| Booster heater | Built-in, 40-70°F rise, 1.66 gal tank |
| Tank heat | Electric; 8.0 gal wash tank |
| Wash pump | 2 HP stainless steel |
| Chamber clearance | 27" |
| Incoming water | 110°F, 15-65 PSI, 1/2" NPT |
| Drain | 1-1/2" NPT |
| Electrical options | 208V or 230V, 1- or 3-Phase |
| Dimensions (W x D x H) | 30-1/2" x 30" x 71-1/2" |
| Height with door open | 91-1/4" |
| Shipping weight | 366 lb |
| Certifications | ENERGY STAR®; NSF/ANSI 3 (ETL Sanitation) |
Before it arrives
- Measure your ceiling: the door needs 91-1/4" of height when raised.
- Supply 110°F water at 15-65 PSI. Jackson recommends a tank-type water heater over a tankless one.
- Have a licensed electrician run a dedicated circuit from the table above, and confirm hood requirements with local code.
- Allow 2-1/4" behind the unit. The crated machine weighs 366 lb and stands 77" tall.
What's included
- Front and side stainless steel dress panels
- Adjustable bullet feet
Warranty
One-year parts and labor warranty from Jackson.
Specifications per Jackson WWS data; subject to change by the manufacturer.
