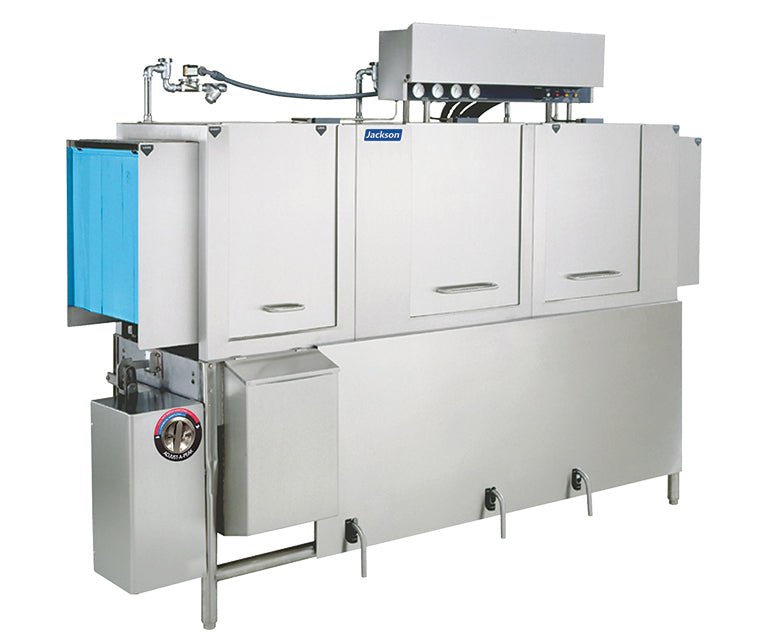

Jackson AJ-86CS High Temp Conveyor Dishwasher, 287 Racks/Hr, 22" Prewash, Steam Tank Heat
The Jackson AJ-86CS pairs a 22" prewash with steam-coil tank heat, a practical match for institutions that already have a boiler on site. Correctional facilities, nursing care homes and hospitals that see heavily soiled trays all day will get the most from it.
It handles up to 287 racks per hour using 0.77 gallons of fresh water per rack. Each rack goes from a 110–140°F prewash to a 150°F wash and 160°F power rinse, then a fresh 180°F final rinse sanitizes. Clearance is 25" throughout. There is no booster on board, so plan for one.
What you will notice in day-to-day use
- Heated by steam you already have. Stainless coils inside the wash and power rinse tanks carry the steam, so it never mixes with the wash water.
- Prewash takes the heavy hit. Prewash arms strip scraps into a front scrap basket that is easy to empty.
- Dial in the pace. Adjust-A-Peak™ sets the conveyor anywhere from 144 to 287 racks per hour.
- Saves energy between waves. EnergyGuard™ runs each section only when a rack is present.
- Few parts to go wrong. The controls are electro-mechanical with one ON/OFF switch, and the build is 304 stainless steel with no plastics.
Choosing your setup
Electrical: select the voltage and phase above to match your service, since pumps, conveyor and controls run on electricity. The sheet's amperage figures are not broken out for steam models, so size the circuit from this machine's data plate. 460V three-phase is a factory option.
Direction: choose left-to-right or right-to-left rack flow (as you face the machine) above, based on where your soiled and clean tables sit.
Booster heater: sold separately. Jackson's steam booster takes 140°F incoming water; electric Hatco boosters are also available.
Specifications
| Brand | Jackson |
| Model | AJ-86CS |
| Type | High temperature conveyor dishwasher, 22" prewash |
| Racks per hour | 287 (adjustable to 144) |
| Dishes / glasses per hour | 7,175 / 7,175 |
| Water use | 0.77 gal per rack; 222 gal per hour |
| Temperatures | Prewash 110–140°F; wash 150°F; rinse 160°F / 180°F |
| Booster heater | Sold separately |
| Tank heat | Steam coils; 10–20 PSIG, 3/4" IPS, 100 lb/hr at 15 PSIG |
| Pumps | Prewash 1 HP, 120 GPM; wash 270 GPM; power rinse 2 HP, 270 GPM |
| Chamber clearance | 25" |
| Incoming water | 180°F min. at 15–25 PSI; prewash 110–140°F; 3/4" IPS |
| Drain | 1-1/2" IPS min. |
| Electrical options | 208V / 1-Phase, 208V / 3-Phase, 230V / 1-Phase, 230V / 3-Phase |
| Dimensions (W x D x H) | 102" x 25" x 75-1/2" |
| Shipping weight | 1,040 lb |
| Certifications | NSF, UL and CSA listed; ASSE 1004 |
Before it arrives
- Run 10–20 PSIG flowing steam to the 3/4" connection, with a regulator (by others) above 20 PSIG.
- Provide a 110–140°F prewash line, a 180°F line at 15–25 PSI and a 1-1/2" drain.
- Book a licensed electrician for a dedicated circuit; size exhaust for 200 CFM (input end) and 400 CFM (output end).
- It ships in a 120" x 40" x 87" crate at 1,040 lb.
What's included
- Stainless steel front panel, frame and adjustable bullet feet
- Vent cowls, splash shields and strip curtains
Warranty
One-year parts and labor warranty from Jackson.
Specifications per Jackson WWS data; subject to change by the manufacturer.
