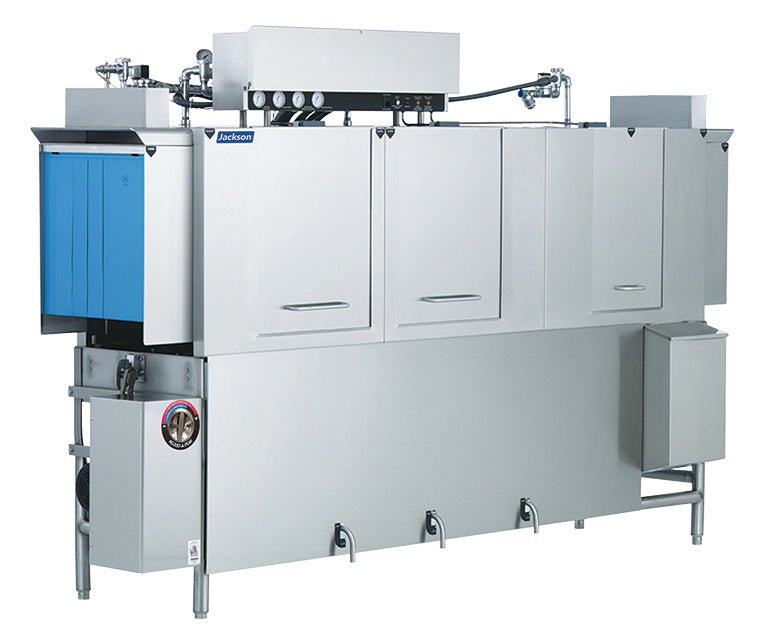

Jackson AJ-100CE High Temp Conveyor Dishwasher, 287 Racks/Hr, 36" Prewash, Electric Tank Heat
For dish rooms that take the full force of a banquet or institutional tray return, the Jackson AJ-100CE puts a long 36" prewash ahead of the wash tank to strip heavy soil first. Electric elements heat the wash and power rinse tanks. It suits large restaurants, nursing care facilities and correctional kitchens.
Expect up to 287 racks per hour with 0.77 gallons of fresh water per rack. Racks pass a 110–140°F prewash, 150°F wash and 160°F power rinse, then a 180°F final rinse sanitizes them. Clearance is 25" all the way through. A booster heater is needed and is not built in.
What you will notice in day-to-day use
- Five-arm prewash. Three upper and two lower arms on a 2 HP pump push scraps into a front scrap basket.
- Slow down when it matters. Adjust-A-Peak™ sets the conveyor between 144 and 287 racks per hour.
- Big pieces fit. The 25" clearance takes sheet pans and 60-quart bowls.
- Uses power only with a rack inside. EnergyGuard™ runs each section only while a rack is passing and stops the conveyor when the machine is empty.
- Easy for staff. Tanks fill automatically and arms lift out without tools.
Choosing your setup
Electrical: pick the voltage and phase above that match your panel. Jackson's approximate total load is below; your electrician sizes the breaker. 460V three-phase (40.4 A) is a factory option.
| Electrical service | Approx. total load |
|---|---|
| 208V / 1-Phase | 147.4 A |
| 208V / 3-Phase | 87.4 A |
| 230V / 1-Phase | 136.0 A |
| 230V / 3-Phase | 80.7 A |
Direction: rack travel is left-to-right or right-to-left, seen from the front. Choose the option above that fits your table layout.
Booster heater: sold separately. Jackson lists three-phase Hatco boosters of 36 KW (140°F incoming) or 45 KW (110°F incoming), plus a steam booster.
Specifications
| Brand | Jackson |
| Model | AJ-100CE |
| Type | High temperature conveyor dishwasher, 36" prewash |
| Racks per hour | 287 (adjustable to 144) |
| Dishes / glasses per hour | 7,175 / 7,175 |
| Water use | 0.77 gal per rack; 222 gal per hour |
| Temperatures | Prewash 110–140°F; wash 150°F; rinse 160°F / 180°F |
| Booster heater | Sold separately |
| Tank heat | Electric, 25 KW (10 KW wash, 15 KW power rinse) |
| Pumps | Prewash, wash and power rinse each 2 HP, 270 GPM |
| Chamber clearance | 25" |
| Incoming water | 180°F min. at 15–25 PSI; prewash 110–140°F; 3/4" IPS |
| Drain | 1-1/2" IPS min. |
| Electrical options | 208V / 1-Phase, 208V / 3-Phase, 230V / 1-Phase, 230V / 3-Phase |
| Dimensions (W x D x H) | 116" x 25" x 75-1/2" |
| Shipping weight | 1,150 lb |
| Certifications | NSF, UL and CSA listed; ASSE 1004 |
Before it arrives
- A licensed electrician should provide a dedicated circuit; the booster is wired separately.
- Run a 110–140°F prewash line, a 180°F line at 15–25 PSI and a 1-1/2" drain.
- Size exhaust for 200 CFM at the input end and 400 CFM at the output end.
- Shipping weight is 1,150 lb; allow 100" between dishtables.
What's included
- Stainless steel front panel, frame and adjustable bullet feet
- Vent cowls and splash shields with strip curtains
Warranty
One-year parts and labor warranty from Jackson.
Specifications per Jackson WWS data; subject to change by the manufacturer.
