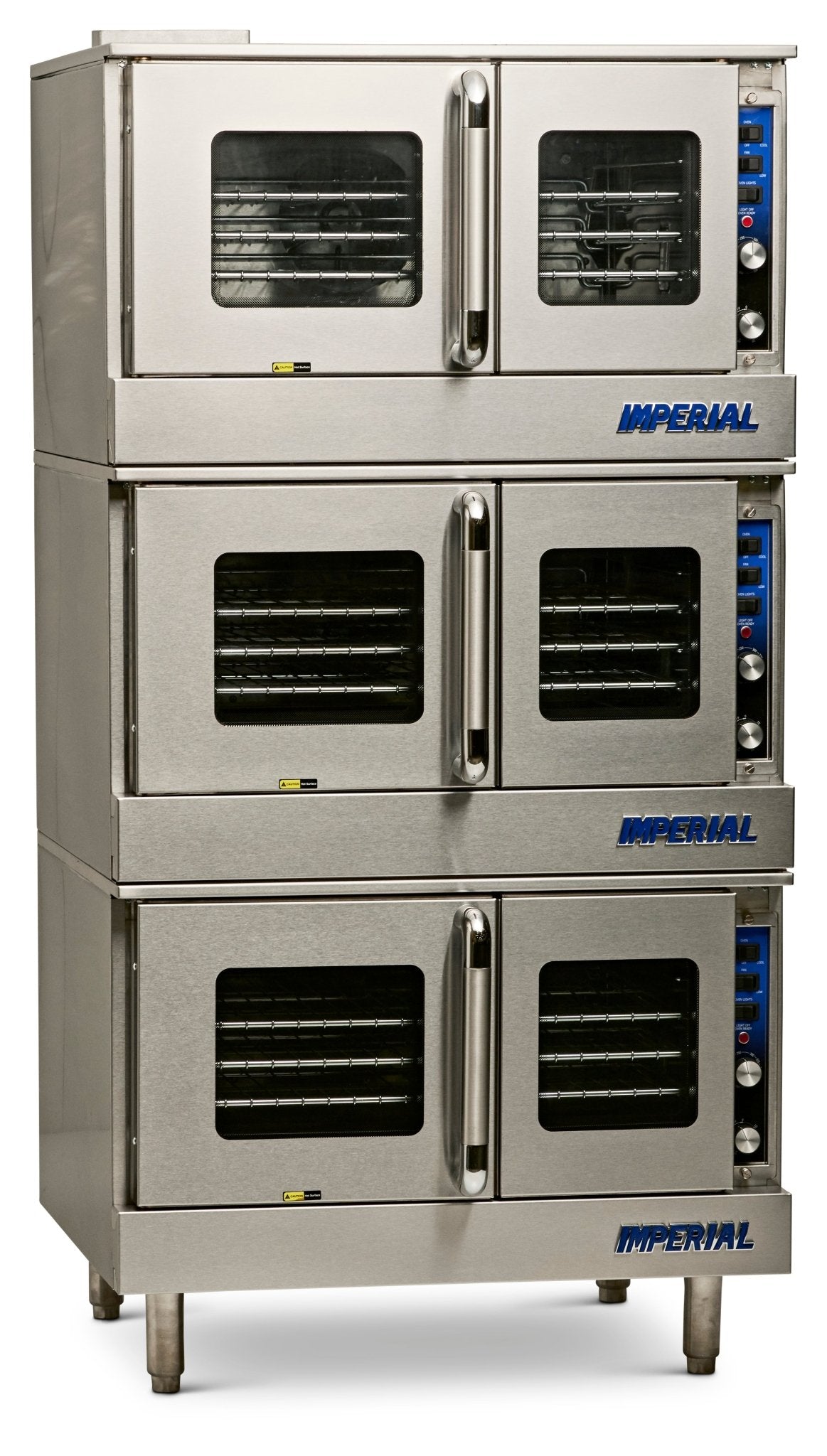

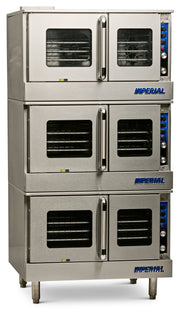

Imperial PRVE-3 Electric Provection Oven, Tripledeck, 7.5 kW
The Imperial PRVE-3 is an electric convection oven. It is rated at 7.5 kW and is offered for 208V / 1-Phase, 208V / 3-Phase, 240V / 1-Phase, 240V / 3-Phase or 480V / 3-Phase service.
Fan-Driven Even Baking
A two-speed blower moves heated air evenly around the cavity for baking, roasting and reheating with shorter cook times.
Electric heat means no gas connection, and a porcelain interior helps browning and cleanup.
Why Operators Choose It
- Dual 50/50 doors with tempered glass windows swing open to 130°.
- Power: One hand opens and closes both doors simultaneously-1/2 HP, 2 speed motor with 7.5KW output per oven.
- Includes three oven racks and five rack positions.
- Two HID oven interior lights.
- Construction: Rugged stainless steel exterior.
- Easy cleaning: Porcelainized oven interior for easy cleaning and better browning.
Ideal For
Restaurants, bakeries, schools and institutions with electric service.
Specifications
| Model | PRVE-3 |
| Type | Electric provection oven, tripledeck |
| Electrical | 208V, 1-phase (36.1 A); 208V, 3-phase (20.8 A); 240V, 1-phase (31.2 A); 240V, 3-phase (18 A); 480V, 3-phase (9 A) |
| Power | 7.5 kW |
| Dimensions (W x D x H) | 36" x 39" x 64" |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208V / 1-Phase | 36.1 | 7.5 |
| 208V / 3-Phase | 20.8 | 7.5 |
| 240V / 1-Phase | 31.2 | 7.5 |
| 240V / 3-Phase | 18 | 7.5 |
| 480V / 3-Phase | 9 | 7.5 |
Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 17" front service.
Install by a qualified technician per local codes and the Imperial installation manual.
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial PRVE-3 spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
