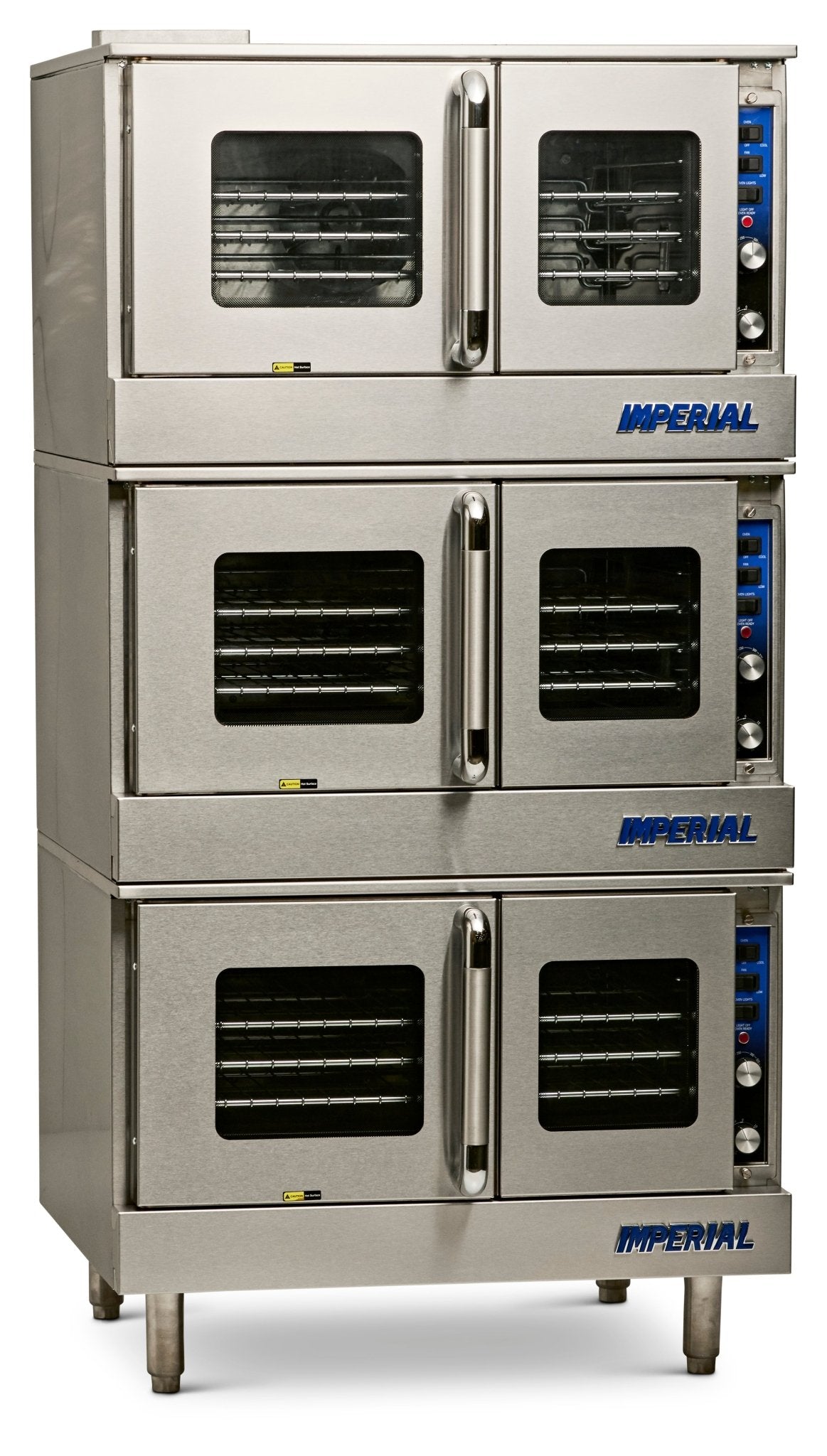

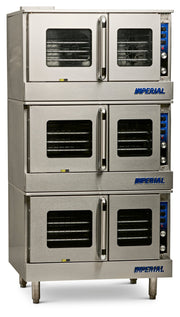

Imperial PRV-3 Provection Oven, Triple Deck, 156,000 BTU
The Imperial PRV-3 is a gas convection oven. It is rated at 156,000 BTU total input and runs on natural gas or liquid propane.
Fan-Driven Even Baking
A two-speed blower motor moves high-velocity air around the cavity for even baking, roasting and reheating with shorter cook times than a standard oven.
Dependent doors open together with one hand, and a porcelain interior helps browning and cleanup.
Why Operators Choose It
- Construction: All stainless steel exterior.
- Burners: In shot burners-1/2 HP, 2 speed motor.
- Temperature control: Highly sensitive Ametek thermostat control system.
- Cool down feature.
- Easy cleaning: Removable rack guide assembly.
- Five rack positions.
Ideal For
Restaurants, bakeries, schools and institutions baking, roasting and reheating sheet-pan product.
Specifications
| Model | PRV-3 |
| Type | Provection oven, triple deck |
| Gas input | 156,000 BTU/hr |
| Gas type | Natural gas or liquid propane (select option) |
| Electrical | 120V, 1-phase |
| Dimensions (W x D x H) | 36-1/8" x 30-1/8" x 64-1/2" |
| Product weight | 1065 lb |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Gas connection: 3/4" inlet.
Electrical service: 120V, 1-phase, NEMA 5-15 plug.
Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 17" front service.
Install by a qualified technician per local codes and the Imperial installation manual.
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial PRV-3 spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
