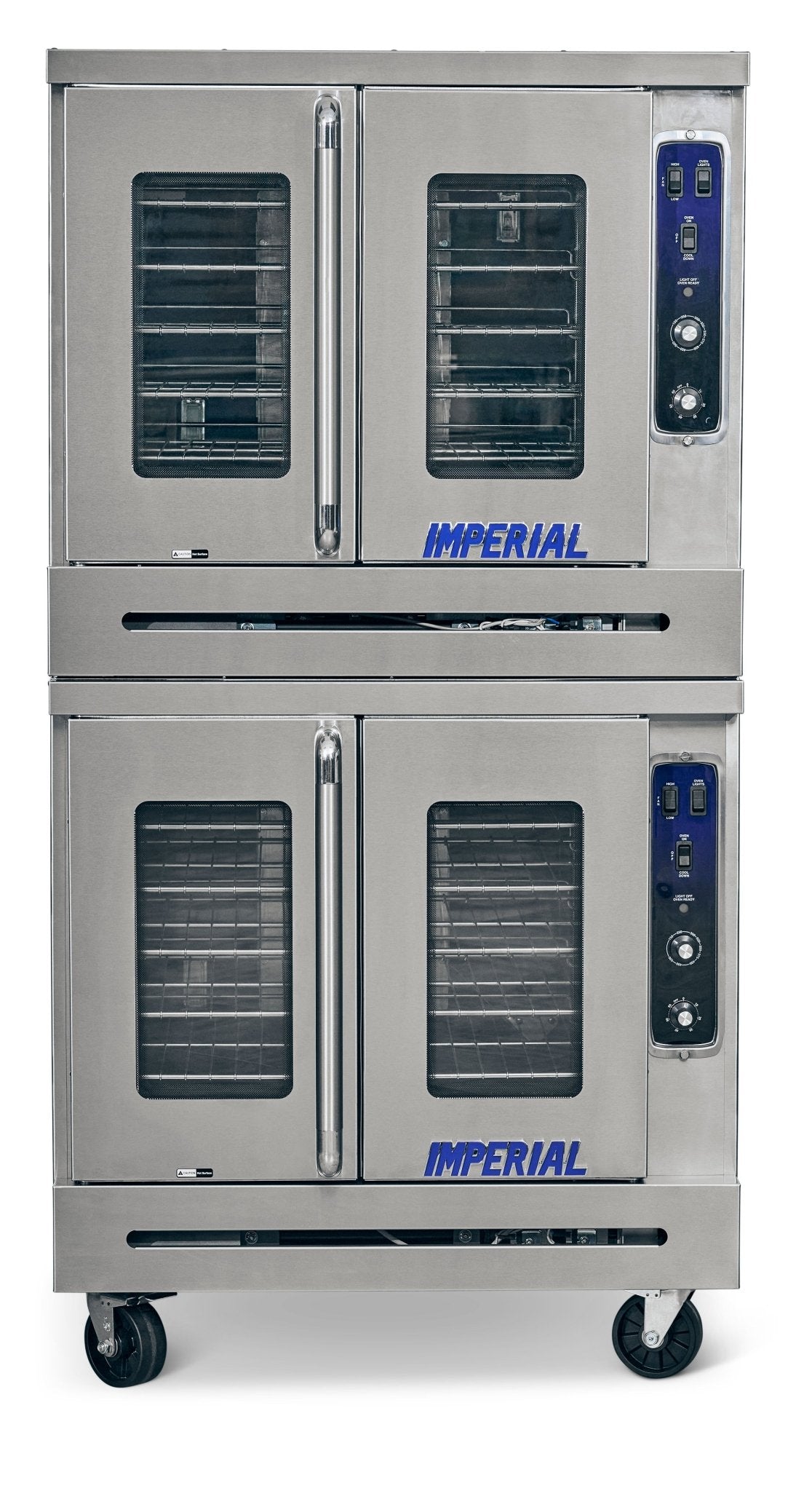

Imperial PCVDE-2 Electric Convection Oven, Double Deck PCVE-2, 22 kW
The Imperial PCVDE-2 is an electric convection oven. It is rated at 22 kW and is offered for 208V / 1-Phase, 208V / 3-Phase, 240V / 1-Phase, 240V / 3-Phase or 480V / 3-Phase service.
Fan-Driven Even Baking
A two-speed blower moves heated air evenly around the cavity for baking, roasting and reheating with shorter cook times.
Electric heat means no gas connection, and a porcelain interior helps browning and cleanup.
Why Operators Choose It
- Dual-open doors.
- One hand opens and closes both doors simultaneously-50/50 doors swing open to 130º.
- Large window.
- Two interior lights.
- Construction: Stainless steel exterior.
- Power: Rugged ½ HP 2 speed motor per oven.
- Easy cleaning: Porcelainized oven interior for easy cleaning and better browning.
Ideal For
Restaurants, bakeries, schools and institutions with electric service.
Specifications
| Model | PCVDE-2 |
| Type | Electric convection oven, double deck pcve-2 |
| Electrical | 208V, 1-phase (50 A); 208V, 3-phase (30 A); 240V, 1-phase (45 A); 240V, 3-phase (26 A); 480V, 3-phase (14 A) |
| Power | 22 kW |
| Dimensions (W x D x H) | 38" x 45-1/2" x 74" |
| Product weight | 1102 lb |
| Certifications | ENERGY STAR |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208V / 1-Phase | 50 | 22 |
| 208V / 3-Phase | 30 | 22 |
| 240V / 1-Phase | 45 | 22 |
| 240V / 3-Phase | 26 | 22 |
| 480V / 3-Phase | 14 | 22 |
Minimum clearances per Imperial: 6" sides, 8" back, 20" top.
Install by a qualified technician per local codes and the Imperial installation manual.
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial PCVDE-2 spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
