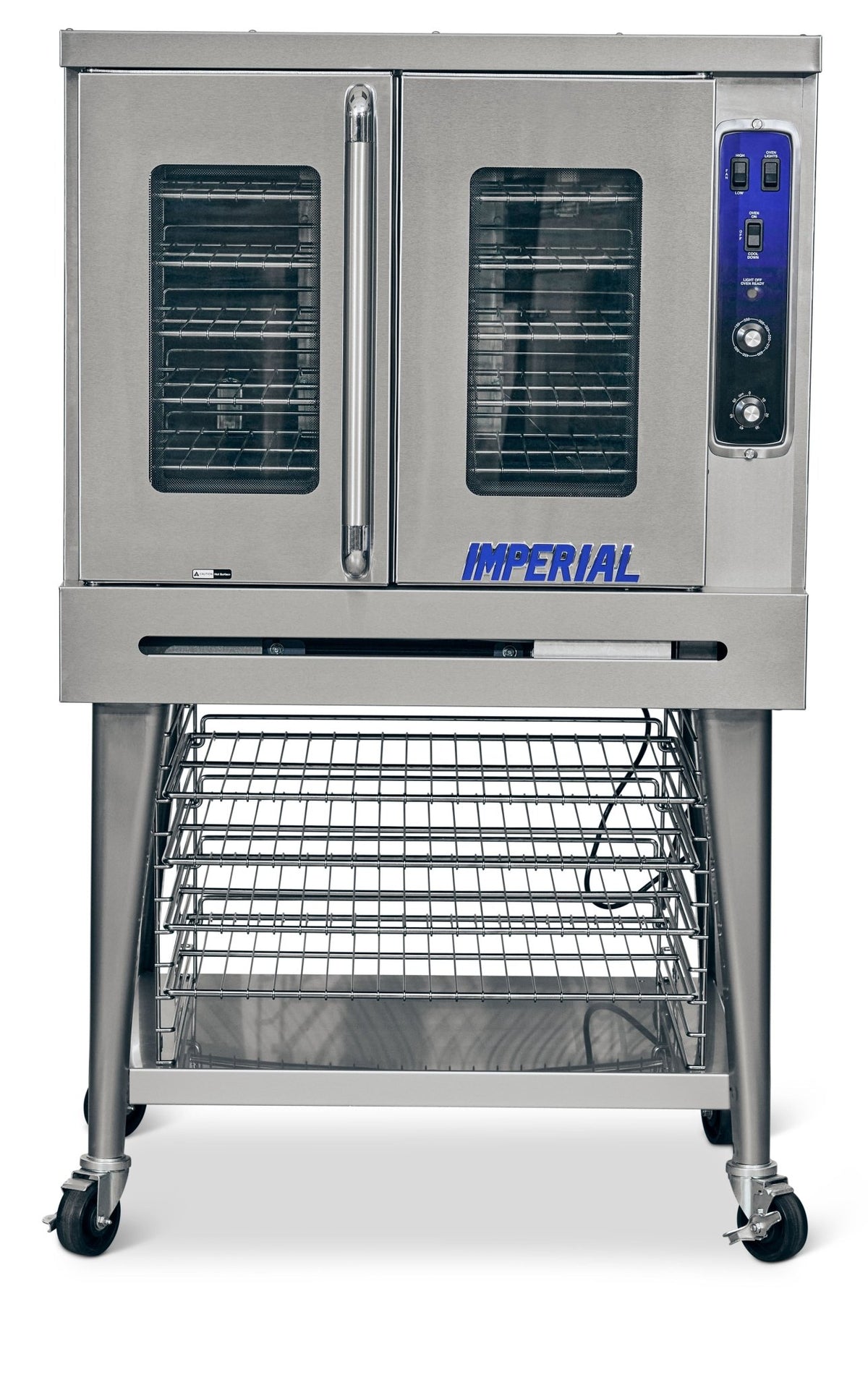

Imperial PCVDE-1 Electric Convection Oven, PCVE-1 Single Deck, 11 kW
The Imperial PCVDE-1 is an electric convection oven. It is rated at 11 kW and is offered for 208V / 1-Phase, 208V / 3-Phase, 240V / 1-Phase, 240V / 3-Phase or 480V / 3-Phase service.
Fan-Driven Even Baking
A two-speed blower moves heated air evenly around the cavity for baking, roasting and reheating with shorter cook times.
Electric heat means no gas connection, and a porcelain interior helps browning and cleanup.
Why Operators Choose It
- Construction: All stainless steel exterior.
- Temperature control: Highly sensitive Ametek thermostat control system-1/2 HP, 2 speed motor.
- Cool down feature.
- Power: Two low watt density elements for long life-7.5 KW output.
- Easy cleaning: Removable rack guide assembly.
- Five rack positions.
- Three oven racks.
Ideal For
Restaurants, bakeries, schools and institutions with electric service.
Specifications
| Model | PCVDE-1 |
| Type | Electric convection oven, pcve-1 single deck |
| Electrical | 208V, 1-phase (48 A); 208V, 3-phase (28 A); 240V, 1-phase (42 A); 240V, 3-phase (24 A); 480V, 3-phase (12 A) |
| Power | 11 kW |
| Dimensions (W x D x H) | 38" x 45-1/2" x 64" |
| Product weight | 547 lb |
| Certifications | ENERGY STAR |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208V / 1-Phase | 48 | 11 |
| 208V / 3-Phase | 28 | 11 |
| 240V / 1-Phase | 42 | 11 |
| 240V / 3-Phase | 24 | 11 |
| 480V / 3-Phase | 12 | 11 |
Minimum clearances per Imperial: 6" sides, 8" back, 20" top.
Install by a qualified technician per local codes and the Imperial installation manual.
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial PCVDE-1 spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
