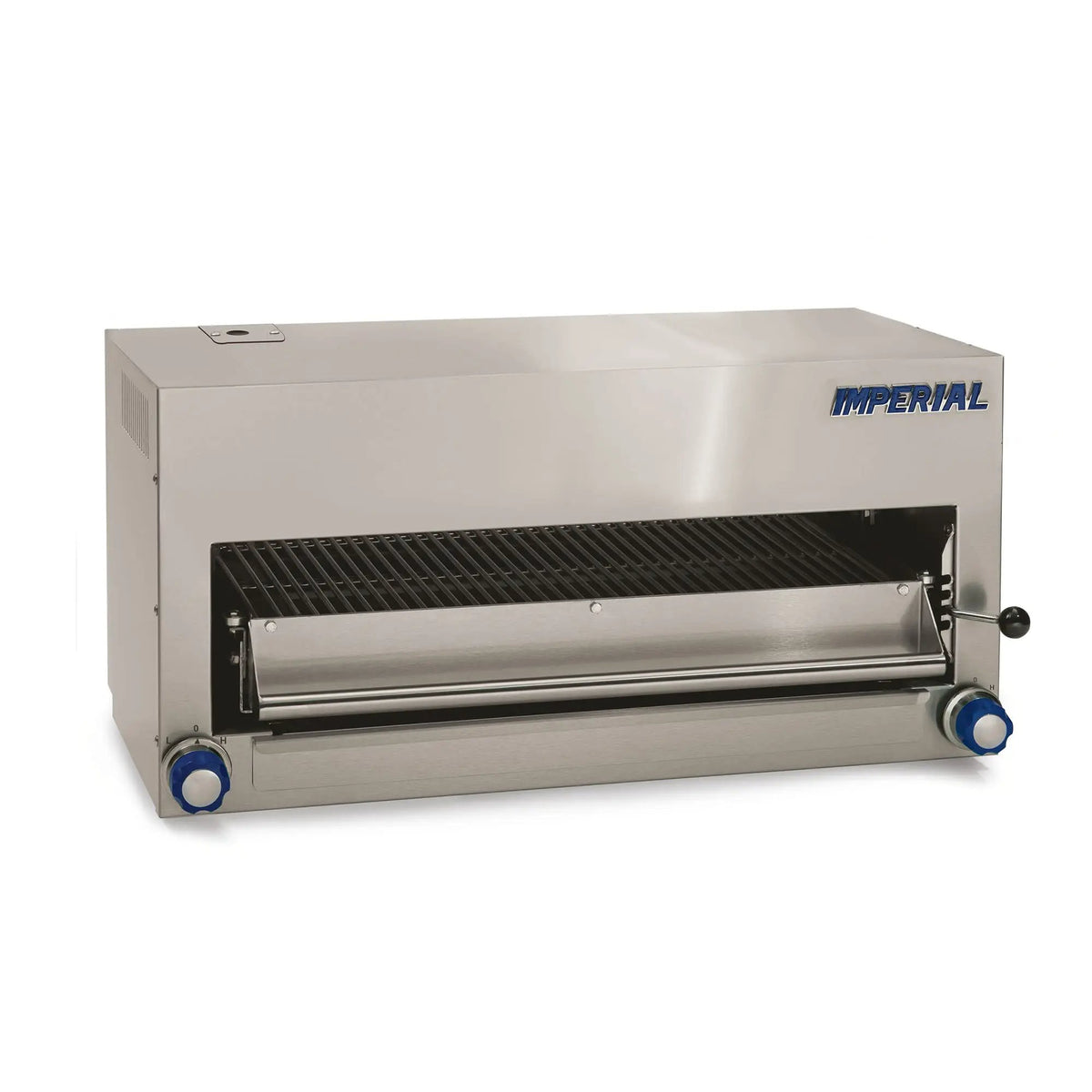

Imperial ISB-36-E Electric Salamander Broiler, 36" Wide, 6 kW
The Imperial ISB-36-E is a 36" electric salamander / cheesemelter. It is rated at 6 kW and is offered for 208V / 3-Phase or 240V / 3-Phase service.
Electric Overhead Broiling
Electric elements above the rack provide strong top-down heat for melting, browning and finishing.
No gas line is needed, so it suits electric kitchens and high-rise sites.
Why Operators Choose It
- Independent left and right heating zones maximize function and performance.
- Four positions with positive locking broiler carriage.
- Spring balanced cradle assembly rolls out 10" for easy loading and unloading.
- Construction: Stainless steel front, sides and top.
- Welded and polished stainless steel seams.
- Mounts over IR and IHR Imperial ranges with mounting accessory.
- Can be wall or counter mounted.
Ideal For
Restaurants and hotels finishing dishes at the pass.
Specifications
| Model | ISB-36-E |
| Type | Electric salamander broiler, 36" wide |
| Electrical | 208V, 3-phase (25 A); 240V, 3-phase (22 A) |
| Power | 6 kW |
| Dimensions (W x D x H) | 36" x 17-3/4" x 17-1/4" |
| Product weight | 188 lb |
| Certifications | cETLus, ETL |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208V / 3-Phase | 25 | 6 |
| 240V / 3-Phase | 22 | 6 |
Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 27" front service.
Install by a qualified technician per local codes and the Imperial installation manual.
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial ISB-36-E spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
