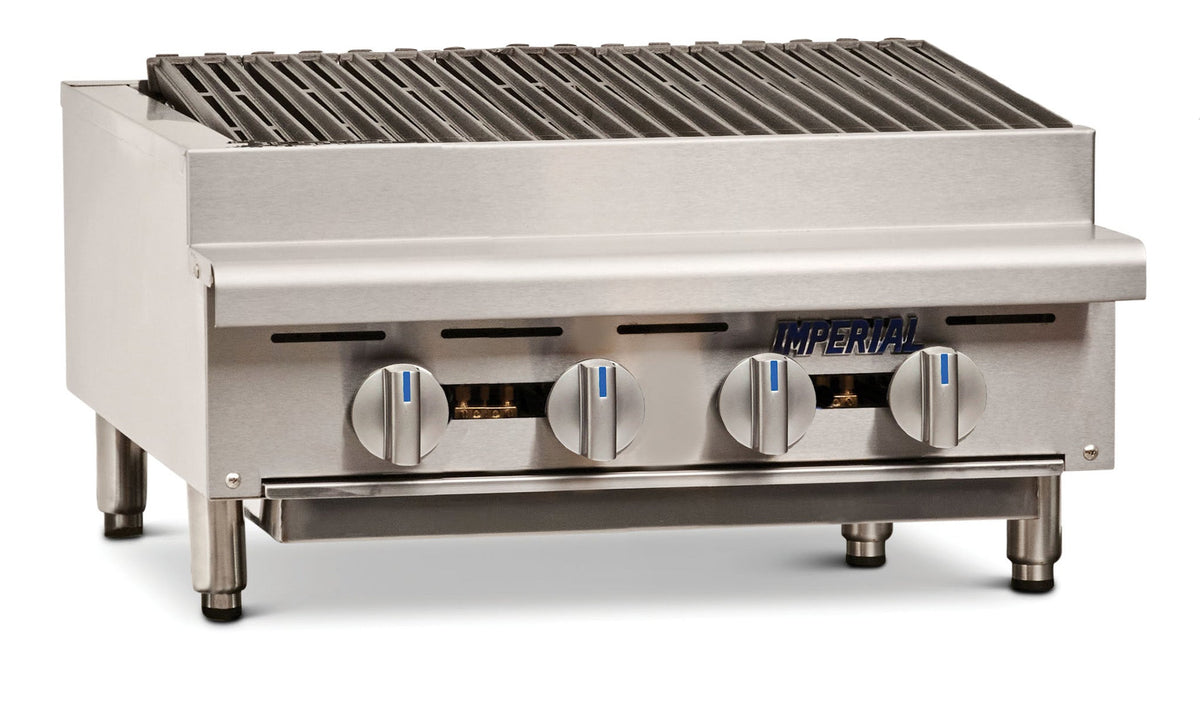

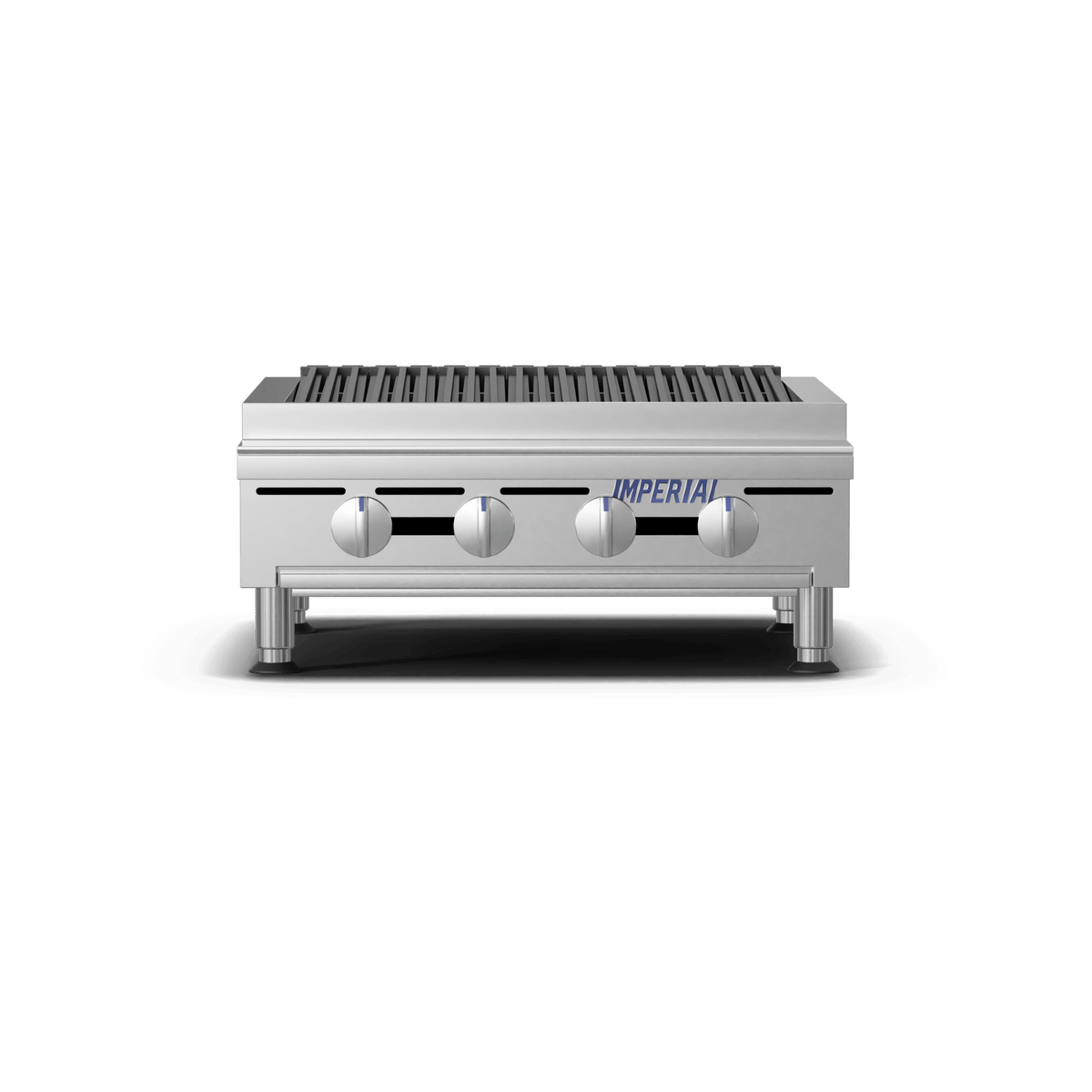

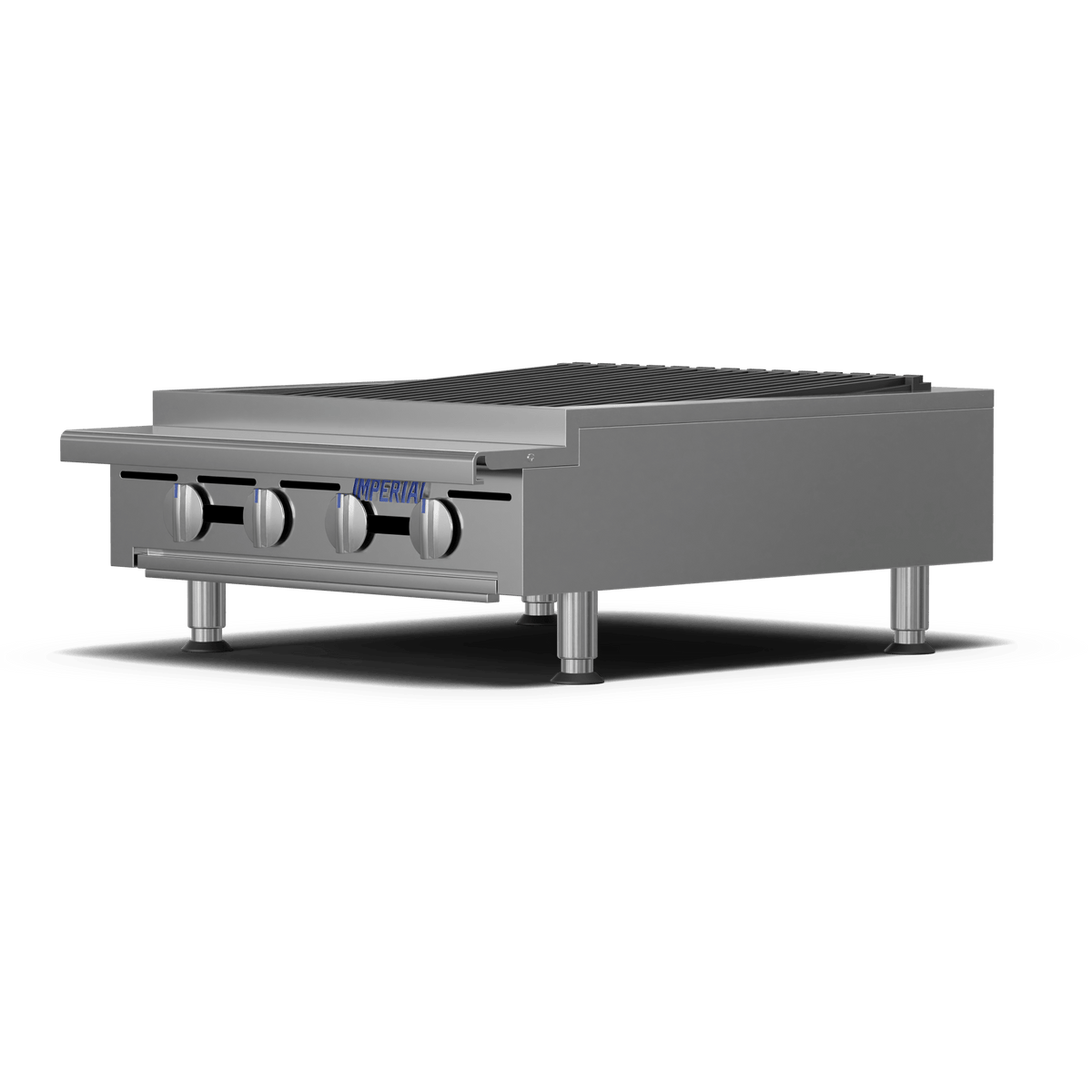

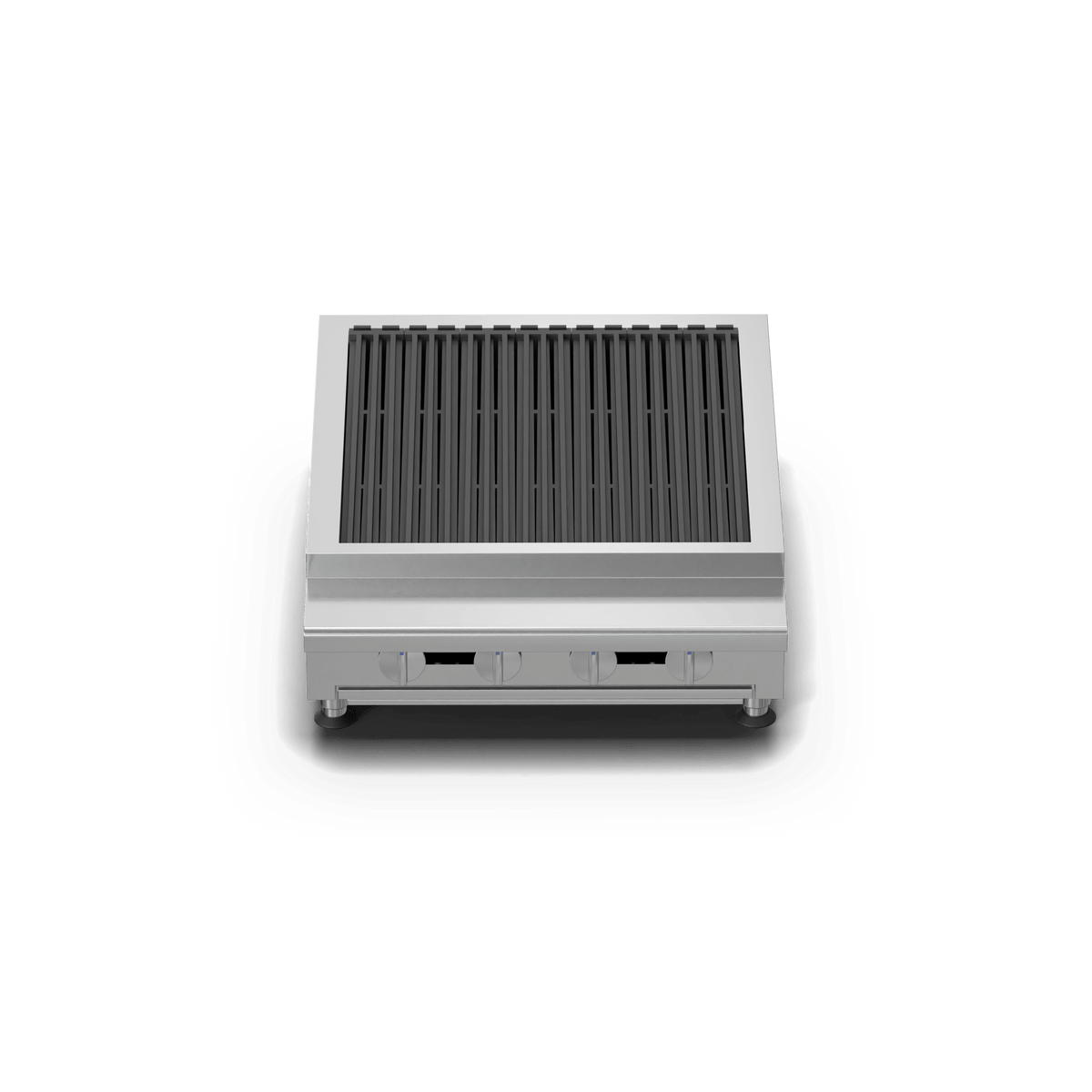

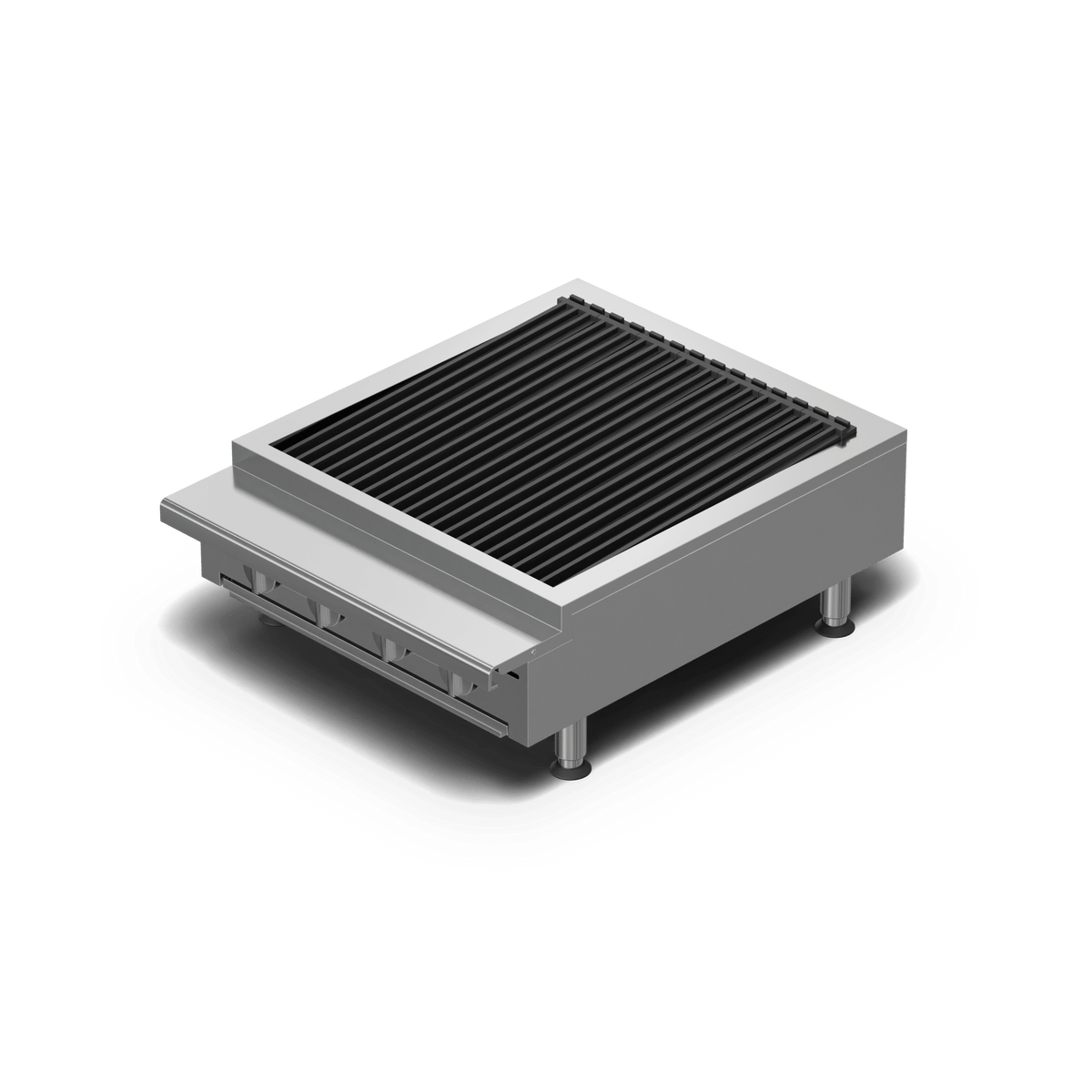

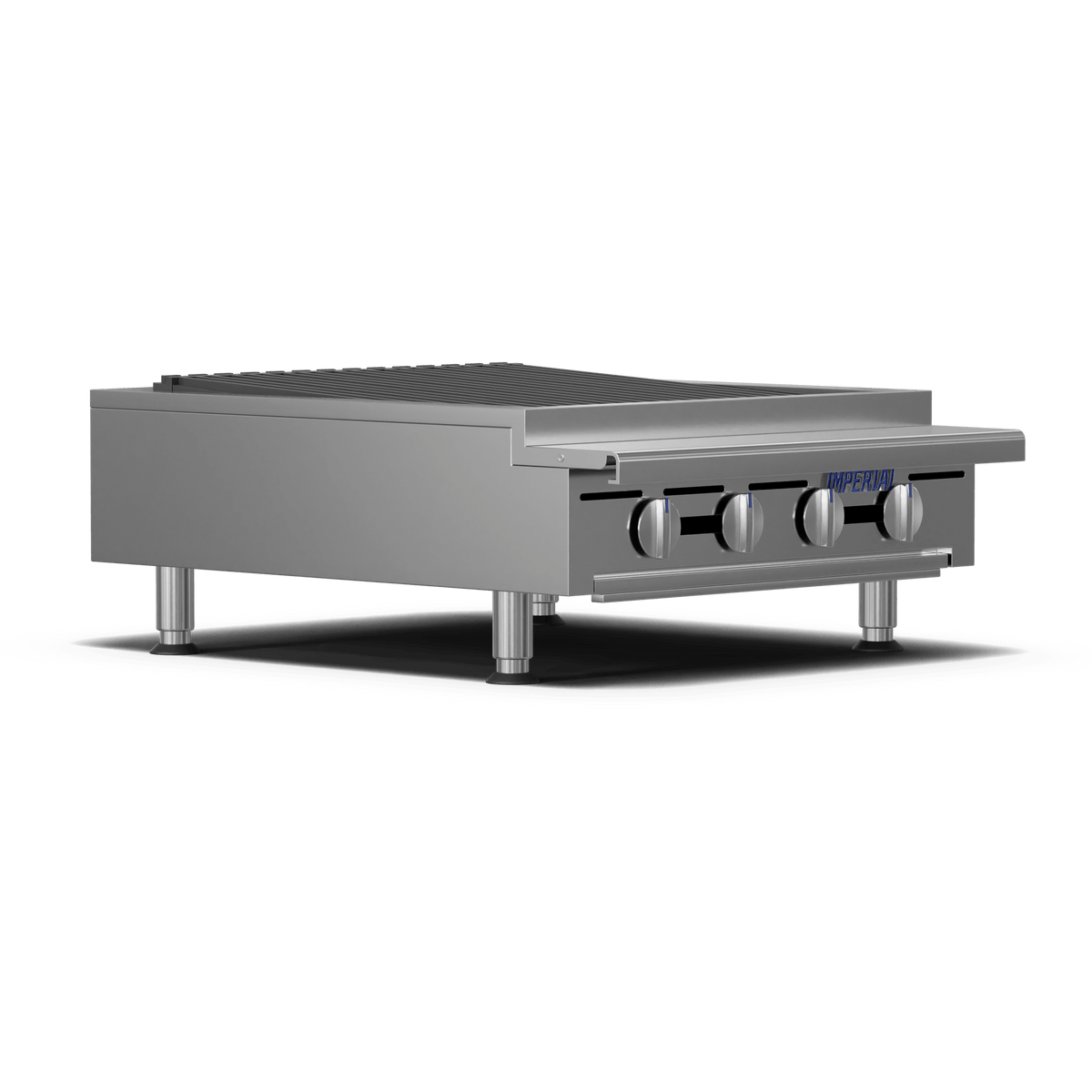

Imperial IRB-24 Radiant Broiler, 24" Wide With Slanted Cooking Surface And 3 Bar Grates, 60,000 BTU

The Imperial IRB-24 is a 24" gas charbroiler with slanted cooking surface and 3 bar grates. It is rated at 60,000 BTU total input and runs on natural gas or liquid propane.

Char-Grilled Flavor and Heat Zones

Individually controlled burners on close centers let cooks set hot and moderate zones across the grate, so steaks, chicken and vegetables can grill side by side.

Drippings hit the radiants and flash into smoke for classic char-broiled flavor, while a full-width drip pan and removable grease can keep cleanup manageable.

Why Operators Choose It

• Burners: Individually controlled 15,000 BTU/hr. (4 KW) stainless steel burners are located every 6".
• Temperature control: Removable, reinforced cast iron radiants prevent clogging of burners and provide maximum heat retention and intense surface temperatures.
• Construction: Optional stainless steel radiants provide quick heat-up while minimizing flare-ups.
• Stainless steel front and sides for cleanability and a professional look.
• Welded and polished stainless steel seams.
• Insulated throughout cooktop to conserve energy.
• Range Match profile when placed on a refrigerated base or equipment stand.

Ideal For

Steakhouses, restaurants, bars and hotels grilling steaks, burgers, chicken, seafood and vegetables.

Specifications

Installation & Utility Requirements

Gas connection: 3/4" inlet.

Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 27" front service.

Install by a qualified technician per local codes and the Imperial installation manual.

Warranty

1 Year Parts and Labor limited warranty from Imperial.

Download the Imperial IRB-24 spec sheet (PDF)

Specifications per Imperial data; subject to change by the manufacturer.
