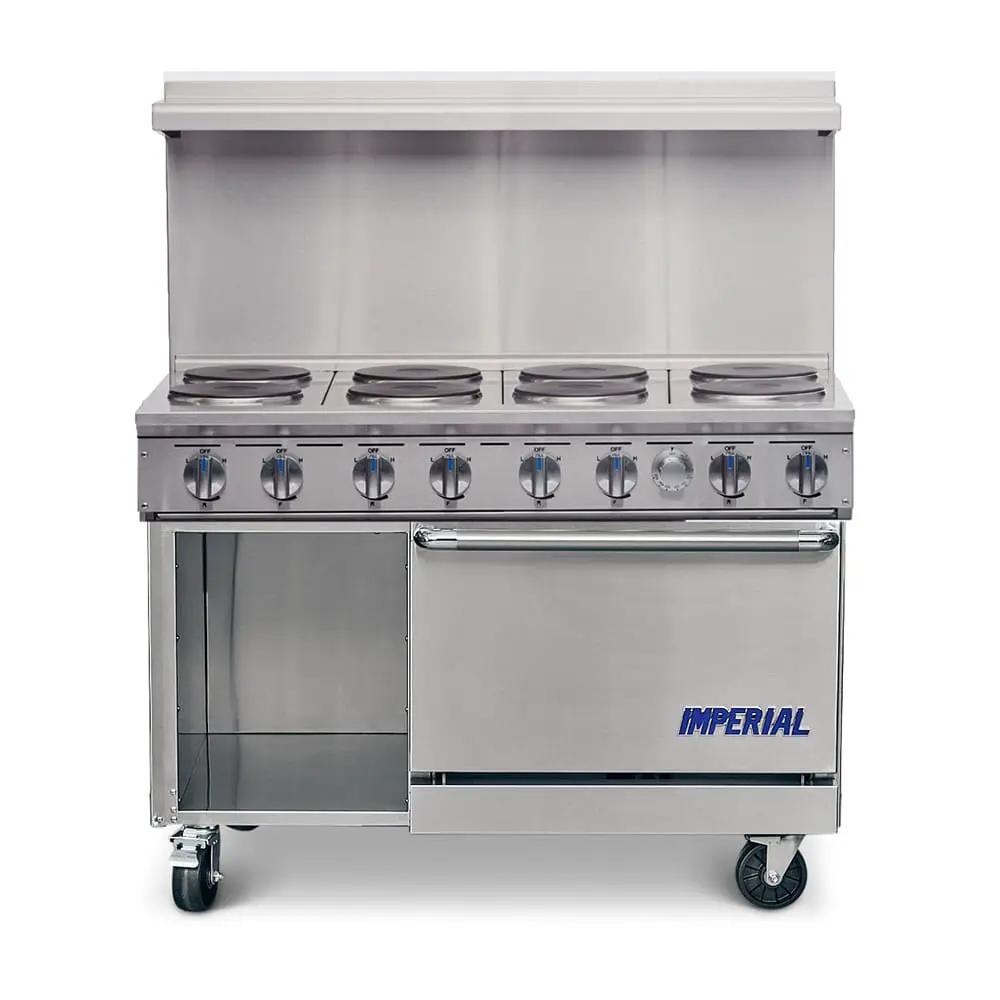

Imperial IR-8-E-XB Electric Pro Series Range, 48" Wide Range With (8) Elements And (1) Standard Oven And Open Cabinet, 26.1 kW
The Imperial IR-8-E-XB is a 48" electric restaurant range from the Pro Series line with (8) elements and (1) standard oven and open cabinet. It is rated at 26.1 kW and is offered for 208V / 1-Phase, 208V / 3-Phase, 240V / 1-Phase, 240V / 3-Phase or 480V / 3-Phase service.
Pro Series Electric Cooking
Sealed electric elements give a flat, easy-to-clean cooktop with precise infinite controls and no open flame.
Electric heat suits kitchens without gas service, high-rises and institutions.
Why Operators Choose It
- Easy cleaning: Top design helps prevent spills from entering unit and makes clean-up easier.
- Cooking surface: 2.6 KW round plates provide a solid flat surface for faster even heating.
- Temperature control: Independent, infinite heat controls for precise temperature flexibility.
- Safety: Oven controls protected from heat in an insulated side compartment.
- Stainless steel front, sides, kick plate, landing ledge, back splash and shelf from heat in an insulated side compartment.
Ideal For
Restaurants, schools, hospitals and high-rise kitchens with electric service.
Specifications
| Model | IR-8-E-XB |
| Type | Electric Pro Series range, 48" wide range with (8) elements and (1) standard oven and open cabinet |
| Electrical | 208V, 1-phase (126 A); 208V, 3-phase (89 A); 240V, 1-phase (110 A); 240V, 3-phase (77 A); 480V, 3-phase (39 A) |
| Power | 26.1 kW |
| Dimensions (W x D x H) | 48" x 30-1/2" x 56-1/2" |
| Product weight | 581 lb |
| Certifications | CE, ETL, cETLus |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208V / 1-Phase | 126 | 26.1 |
| 208V / 3-Phase | 89 | 26.1 |
| 240V / 1-Phase | 110 | 26.1 |
| 240V / 3-Phase | 77 | 26.1 |
| 480V / 3-Phase | 39 | 26.1 |
Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 26" front service.
Install by a qualified technician per local codes and the Imperial installation manual.
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial IR-8-E-XB spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
