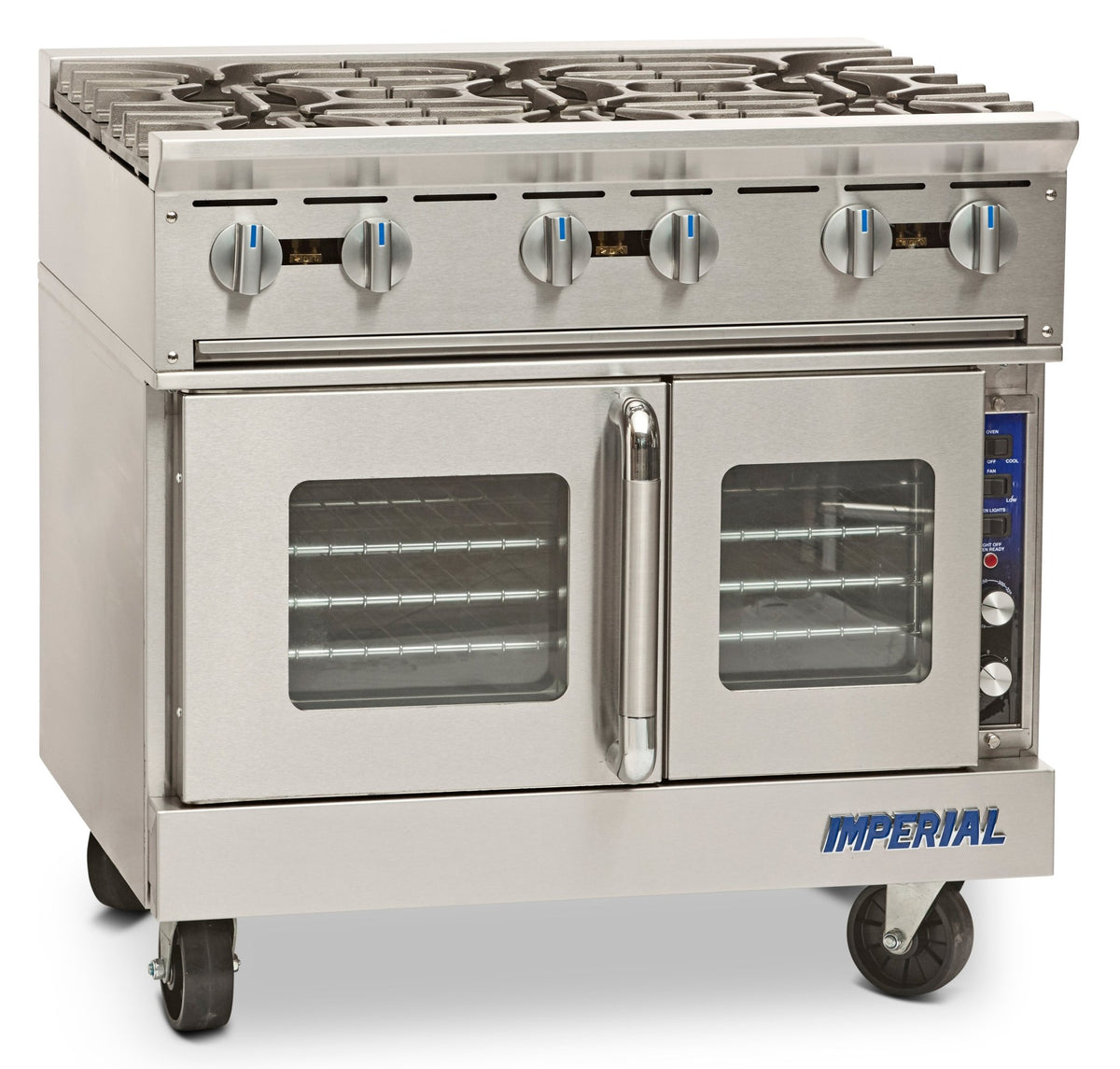

Imperial IR-6-SU-P Pro Series Range, 36" Wide With (6) Open Burners Step Up With Provection Oven, 244,000 BTU
The Imperial IR-6-SU-P is a 36" gas restaurant range from the Pro Series line with (6) open burners step up with provection oven. It is rated at 244,000 BTU total input and runs on natural gas or liquid propane.
Pro Series Range Performance
PyroCentric cast iron burners put out high heat with a low-simmer setting, and they lift off without tools for cleaning.
Porcelain oven interiors and a heavy door hinge are built for continuous restaurant use.
Why Operators Choose It
- Cooking surface: Stainless steel front, sides, backguard, shelf, landing ledge and kick plate.
- Construction: Welded and polished stainless steel seams.
- Large 3.5" stainless steel landing ledge.
- Control knobs are durable cast aluminum.
- Burners: Full width, removable crumb tray under open burners for easy cleaning-6" heavy duty legs with adjustable feet.
- Burners are anti-clogging and lift-off and separate for easy cleaning. No gaskets or screws.
- Cast iron PyroCentric burners are standard on all IR Series Ranges.
Ideal For
Restaurants, hotels, schools and institutions that need a heavy-duty range at the heart of the line.
Specifications
| Model | IR-6-SU-P |
| Type | Pro Series range, 36" wide with (6) open burners step up with provection oven |
| Gas input | 244,000 BTU/hr |
| Gas type | Natural gas or liquid propane (select option) |
| Electrical | 120V, 1-phase |
| Dimensions (W x D x H) | 36" x 30-1/2" x 56-1/2" |
| Product weight | 640 lb |
| Certifications | CE, NSF, UKCA, cCSAus |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Gas connection: 3/4" inlet.
Electrical service: 120V, 1-phase, NEMA 5-15 plug.
Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 26" front service.
Install by a qualified technician per local codes and the Imperial installation manual.
Factory Options (Additional Cost)
- Reinforcement channels for mounting cheesemelter and salamander
- 6" and 11" (152 and 279 mm) stainless steel stubback available
- 10" (254 mm) stainless steel wok ring
- Saute burner head, interchangeable
- Wok burner head, interchangeable
- 220V motor and transformer for convection oven
- Extra oven racks
- Thermostatic griddle control
- Grooved griddle plate
- Chrome griddle plate
- Griddle safety valve
- Gas shut off valve 3/4" (19 mm)
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial IR-6-SU-P spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
