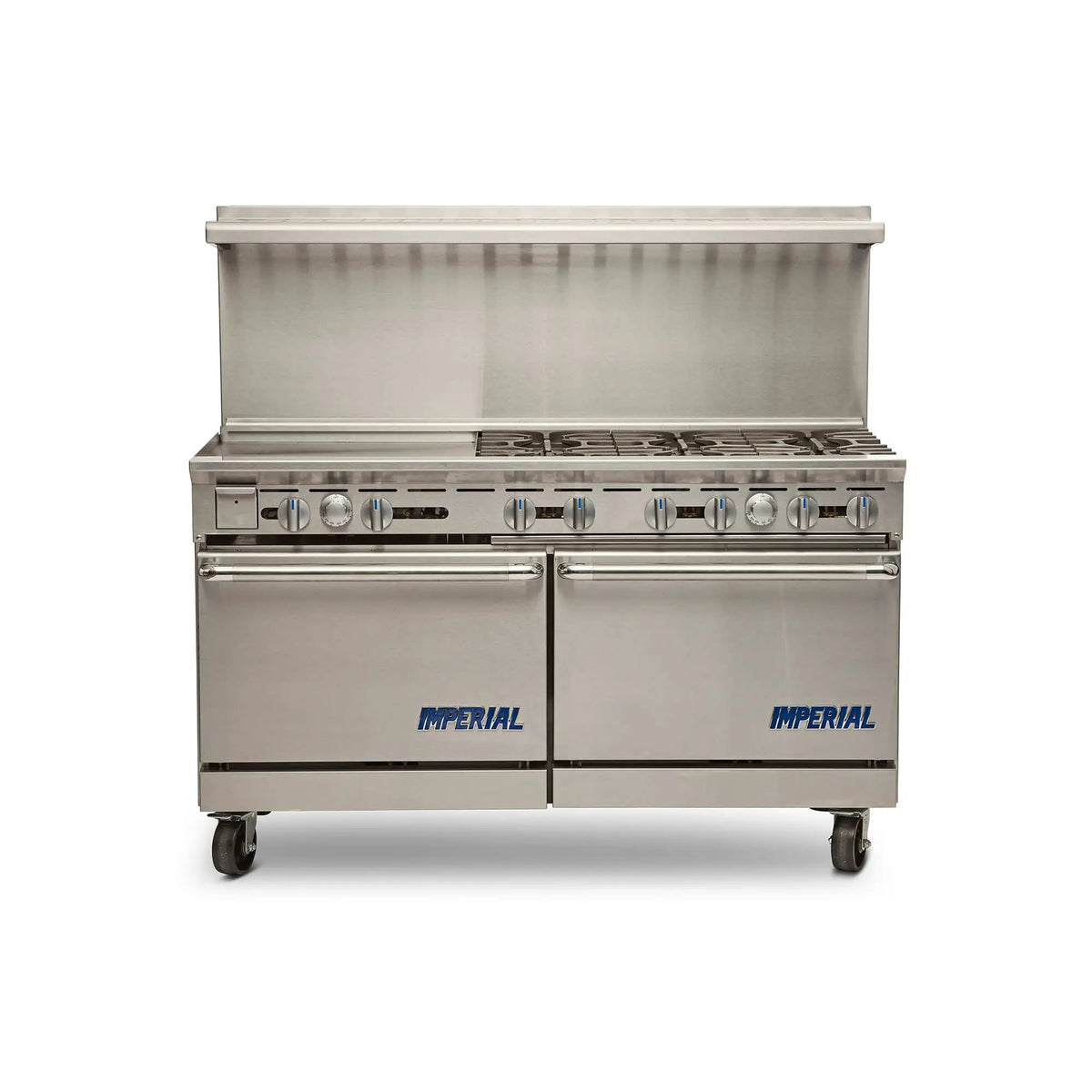

Imperial IR-6-G24T-E Electric Pro Series Range, 60" Wide With (6) Open Burners, (1) 24" Griddle Plate And (2) Standard Ovens, 28.6-32.2 kW
The Imperial IR-6-G24T-E is a 60" electric restaurant range with griddle from the Pro Series line with (6) open burners, (1) 24" griddle plate and (2) standard ovens. It is rated at 28.6-32.2 kW and is offered for 208V / 1-Phase, 208V / 3-Phase, 240V / 1-Phase, 240V / 3-Phase or 480V / 3-Phase service.
Pro Series Electric Range with Griddle
Sealed electric elements and a thermostatic griddle section give burner and flat-top cooking on one electric range.
Electric heat suits kitchens without gas service, high-rises and institutions.
Why Operators Choose It
- Provides a solid flat surface for fast, even heating.
- Cooking surface: Plates are 9" (229) diameter for maximum pan contact.
- Easy cleaning: The top design helps prevent spills from entering unit, making clean-up easier.
- Controls: Infinite heat controls for maximum cooking flexibility.
- 2.6 KW round plate elements with easy-to-clean flat surface.
- Stability: 6" heavy duty legs with adjustable feet.
- Stainless steel front, sides, backguard, shelf, landing ledge and kick plate.
Ideal For
Restaurants, schools, hospitals and high-rise kitchens with electric service.
Specifications
| Model | IR-6-G24T-E |
| Type | Electric Pro Series range, 60" wide with (6) open burners, (1) 24" griddle plate and (2) standard ovens |
| Electrical | 208V, 1-phase; 208V, 3-phase (102 A); 240V, 1-phase; 240V, 3-phase (89 A); 480V, 3-phase (45 A) |
| Power | 28.6 kW / 32.2 kW |
| Dimensions (W x D x H) | 60" x 30-1/2" x 56-1/2" |
| Product weight | 997 lb |
| Certifications | cETLus, CE, UKCA, ETL |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208V / 1-Phase | - | 28.6 |
| 208V / 3-Phase | 102 | 32.2 |
| 240V / 1-Phase | - | 28.6 |
| 240V / 3-Phase | 89 | 32.2 |
| 480V / 3-Phase | 45 | 32.2 |
Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 26" front service.
Install by a qualified technician per local codes and the Imperial installation manual.
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial IR-6-G24T-E spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
