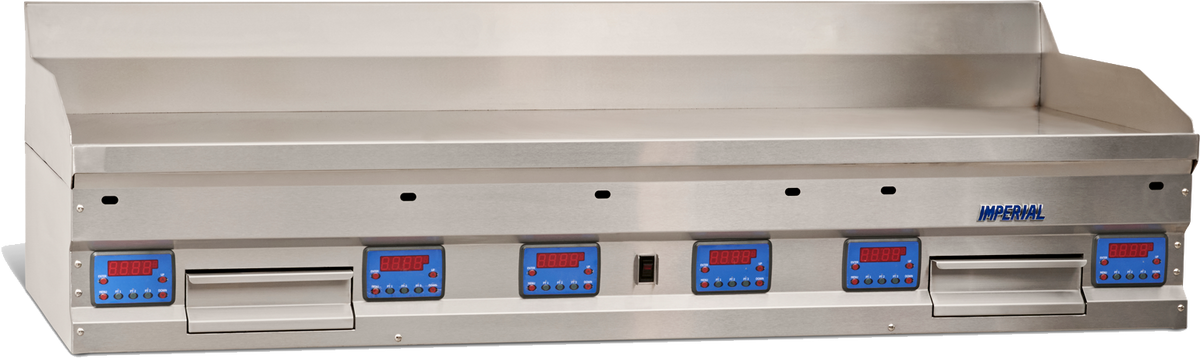

Imperial IHEG-60 High Efficiency Griddle, 60" Wide, 150,000 BTU

The Imperial IHEG-60 is a 60" gas countertop griddle. It is rated at 150,000 BTU total input and runs on natural gas or liquid propane.

Heavy Steel Plate, Even Heat

Burners on 12" centers with aeration baffles between them spread heat across the full plate, and the thick polished steel holds temperature when cold product goes on.

Stainless front, sides and splash guard with a one-piece rolled ledge make the unit easy to wipe down at the end of a shift.

Why Operators Choose It

• Heating elements every 12".
• Temperature control: Individually controlled temperature zones.
• Cooking surface: Multiple imbedded probe sensing on griddle plate.
• Digital griddle plate temperature display.
• Controls: Renau controller.
• Unit on/off switch.
• Capacity: A full 2.5 gallon capacity grease drawer removes easily.

Ideal For

Restaurants, diners, hotels and institutions cooking burgers, eggs, pancakes, steaks and sandwiches.

Specifications

Installation & Utility Requirements

Gas connection: 3/4" inlet.

Electrical service: 120V, 1-phase, NEMA 5-15 plug.

Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 27" front service.

Install by a qualified technician per local codes and the Imperial installation manual.

Warranty

1 Year Parts and Labor limited warranty from Imperial.

Download the Imperial IHEG-60 spec sheet (PDF)

Specifications per Imperial data; subject to change by the manufacturer.
