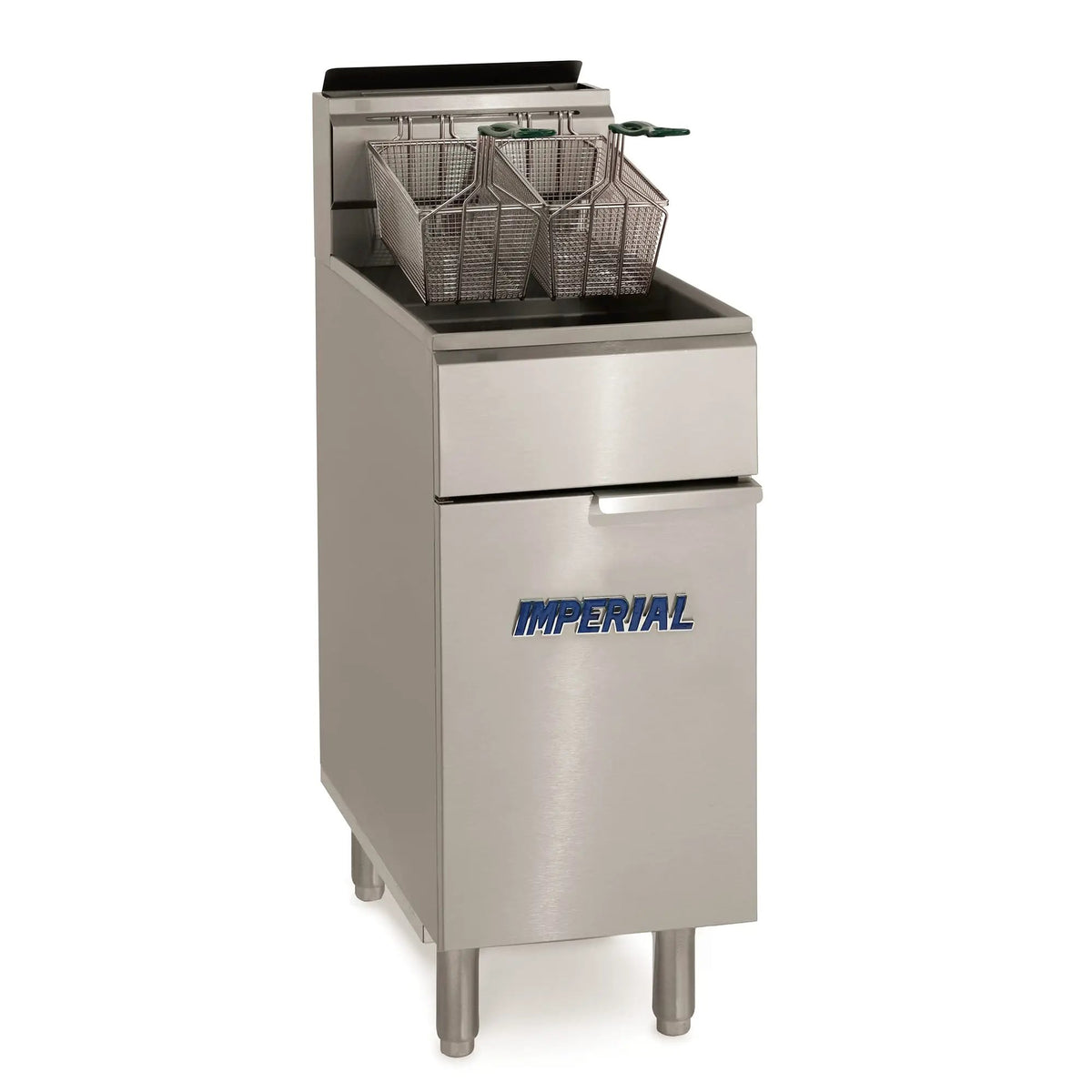

Imperial IFS-40 Fryer, 40 lb Tube Fryer, 105,000 BTU

The Imperial IFS-40 is a gas floor fryer with a 40 lb oil capacity. It is rated at 105,000 BTU total input and runs on natural gas or liquid propane.

Tube-Fired Frying Power

Gas burners fire through tubes inside the fry pot, putting heat directly into the oil for fast recovery when frozen product drops in.

Stainless steel fry pot, front, door and sides with welded, polished seams stand up to daily cleaning, and a full heat shield protects the controls.

Why Operators Choose It

• Construction: Welded and polished stainless steel seams.
• Stainless steel front, door, sides, basket hanger and frypot.
• Safety: Full heat shield protects control panel.
• Full bottom chassis provide structural support.
• 6" heavy duty stainless steel legs or optional casters assures secure support.

Ideal For

Restaurants, bars, quick-service and institutional kitchens frying fries, chicken, fish and appetizers.

Specifications

Installation & Utility Requirements

Gas connection: 3/4" inlet.

Units on casters must be connected with a flexible gas hose and restraining device that meet local code.

Minimum clearances per Imperial: 6" sides, 8" back, 20" top, 15" front service.

Install by a qualified technician per local codes and the Imperial installation manual.

Warranty

1 Year Parts and Labor limited warranty from Imperial.

Download the Imperial IFS-40 spec sheet (PDF)

Specifications per Imperial data; subject to change by the manufacturer.
