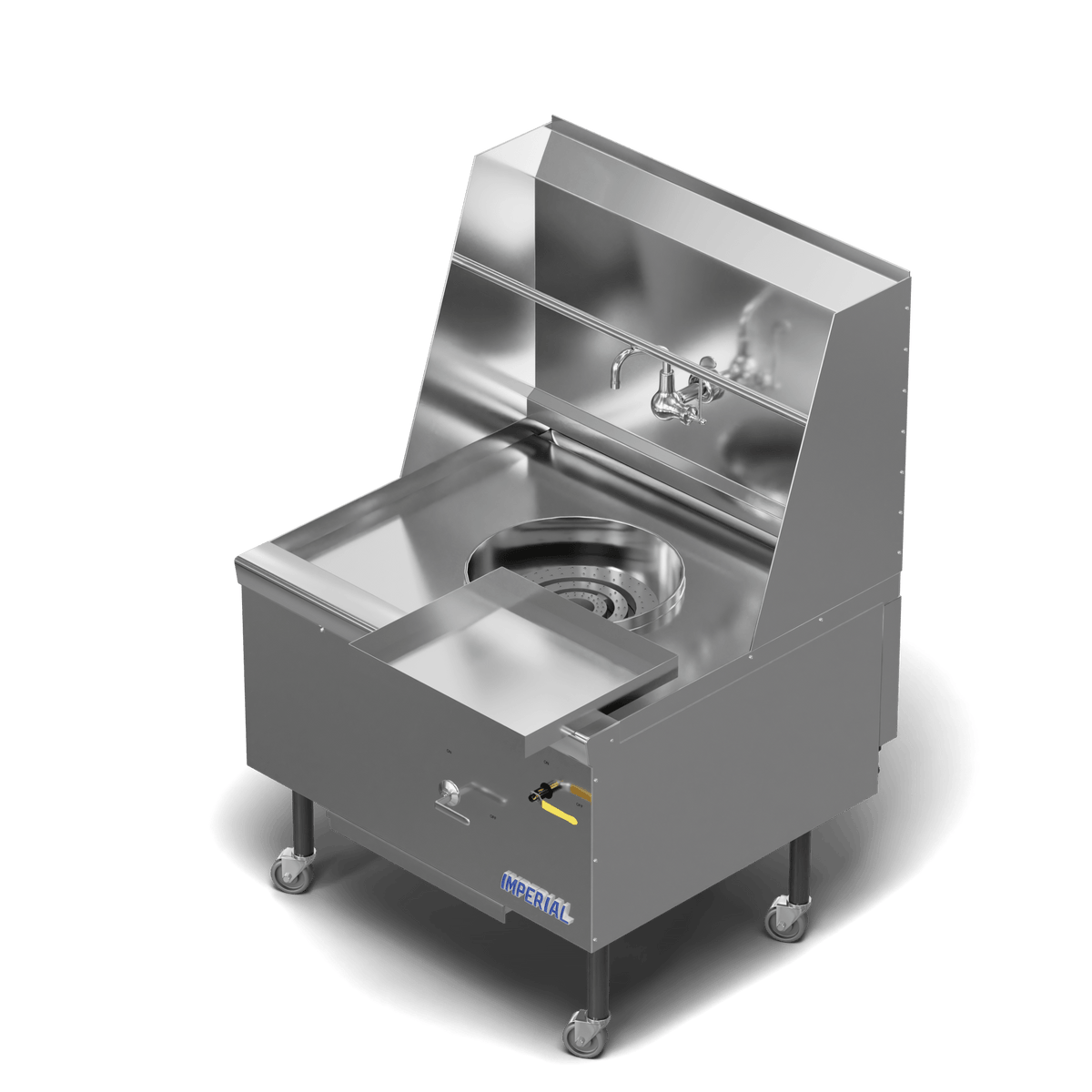

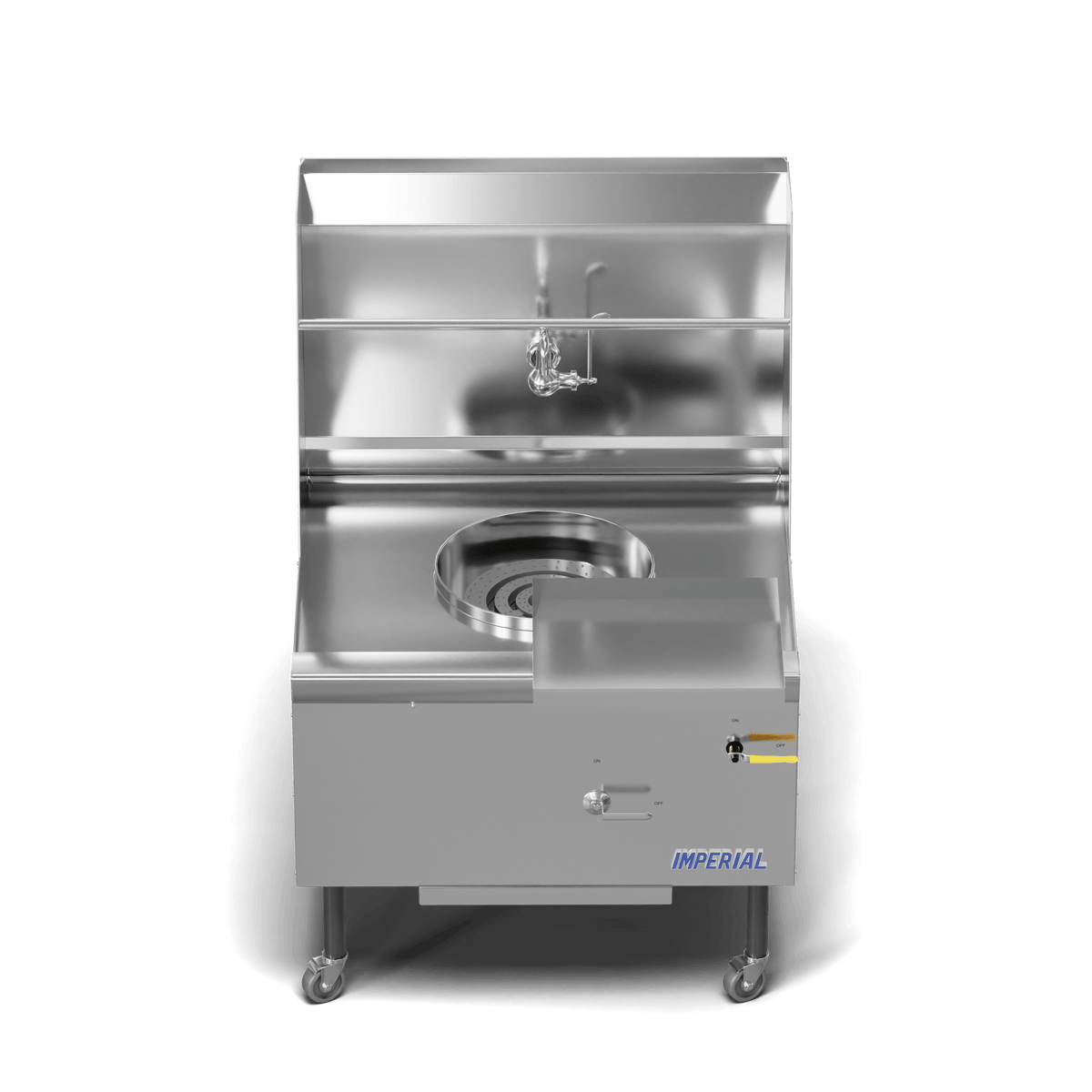

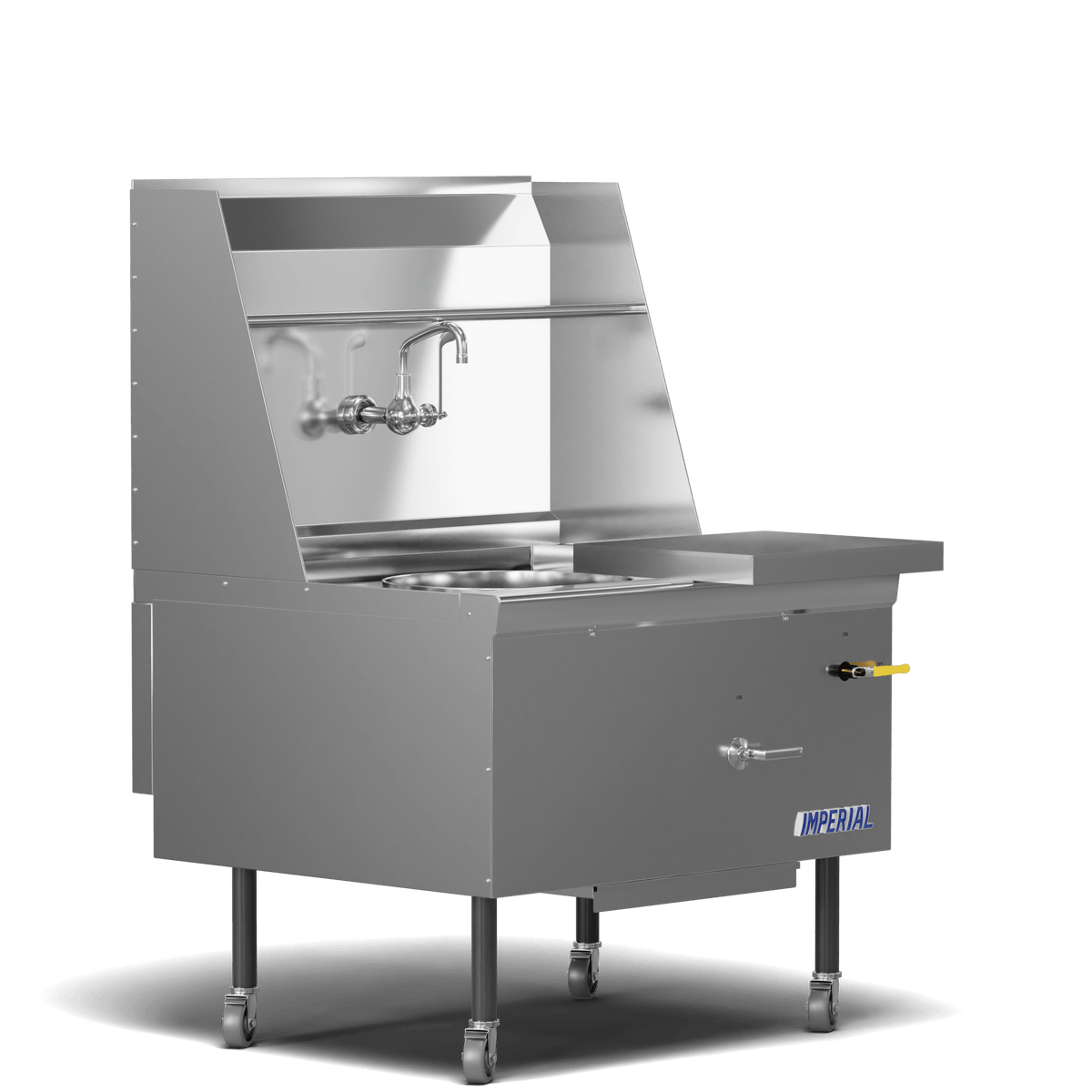

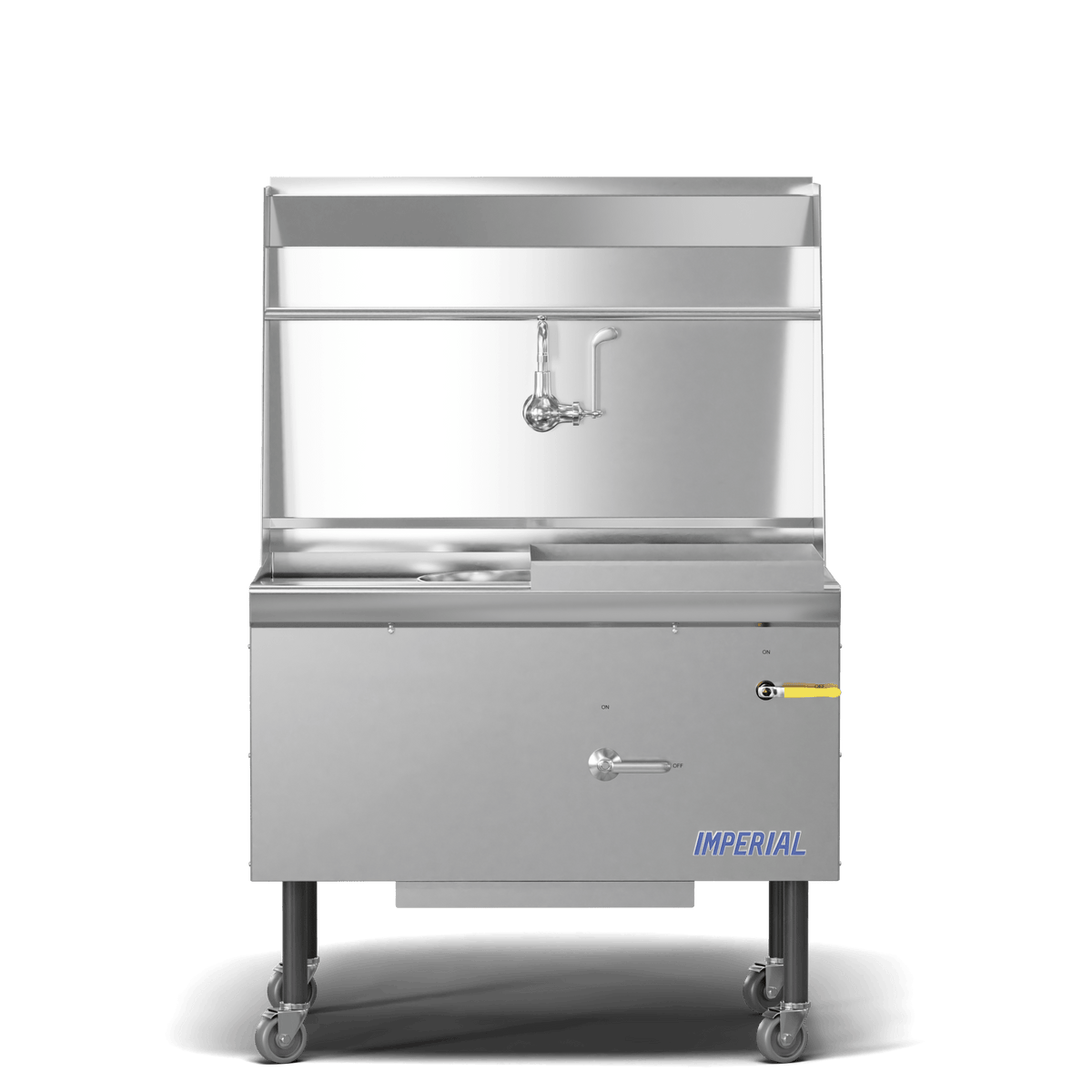

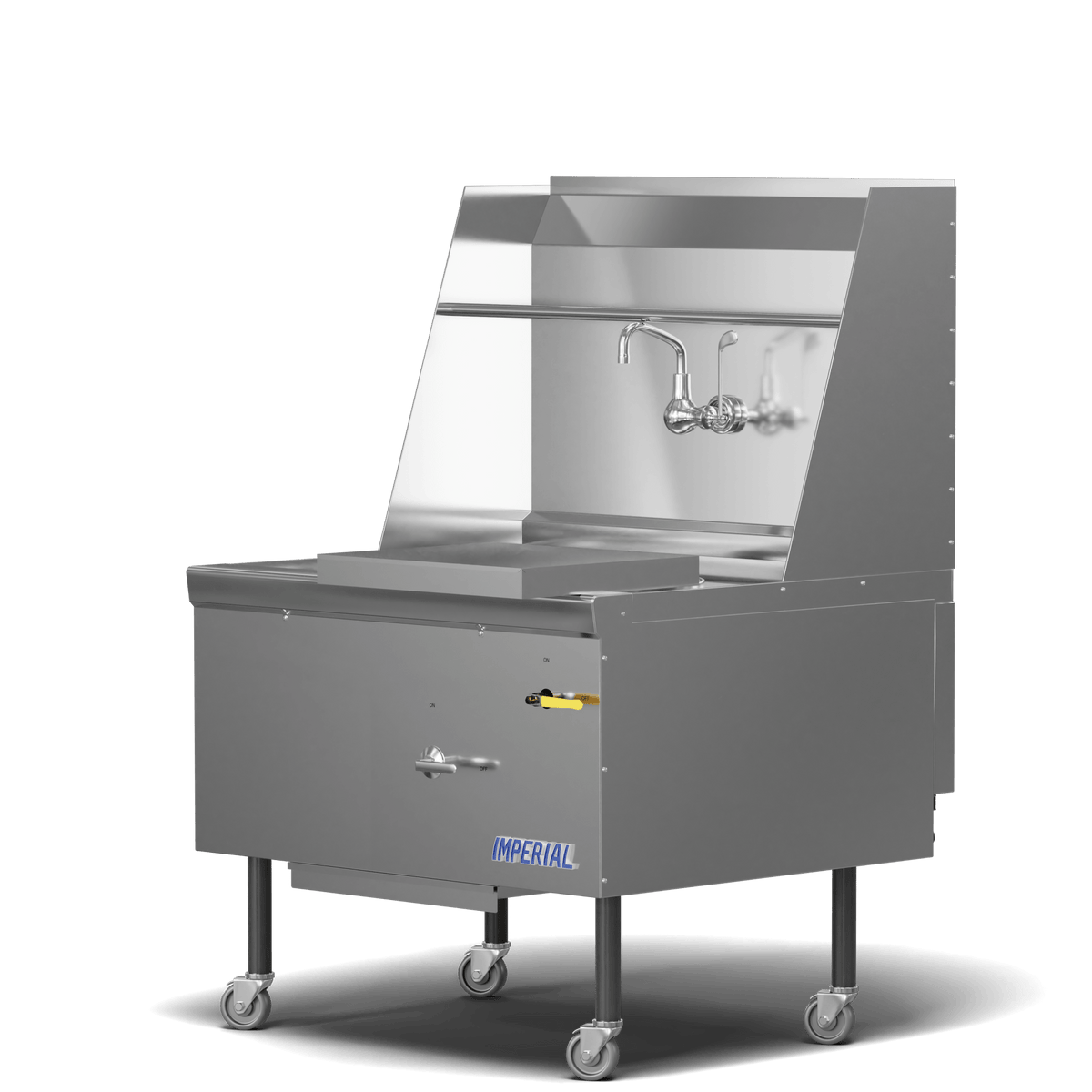

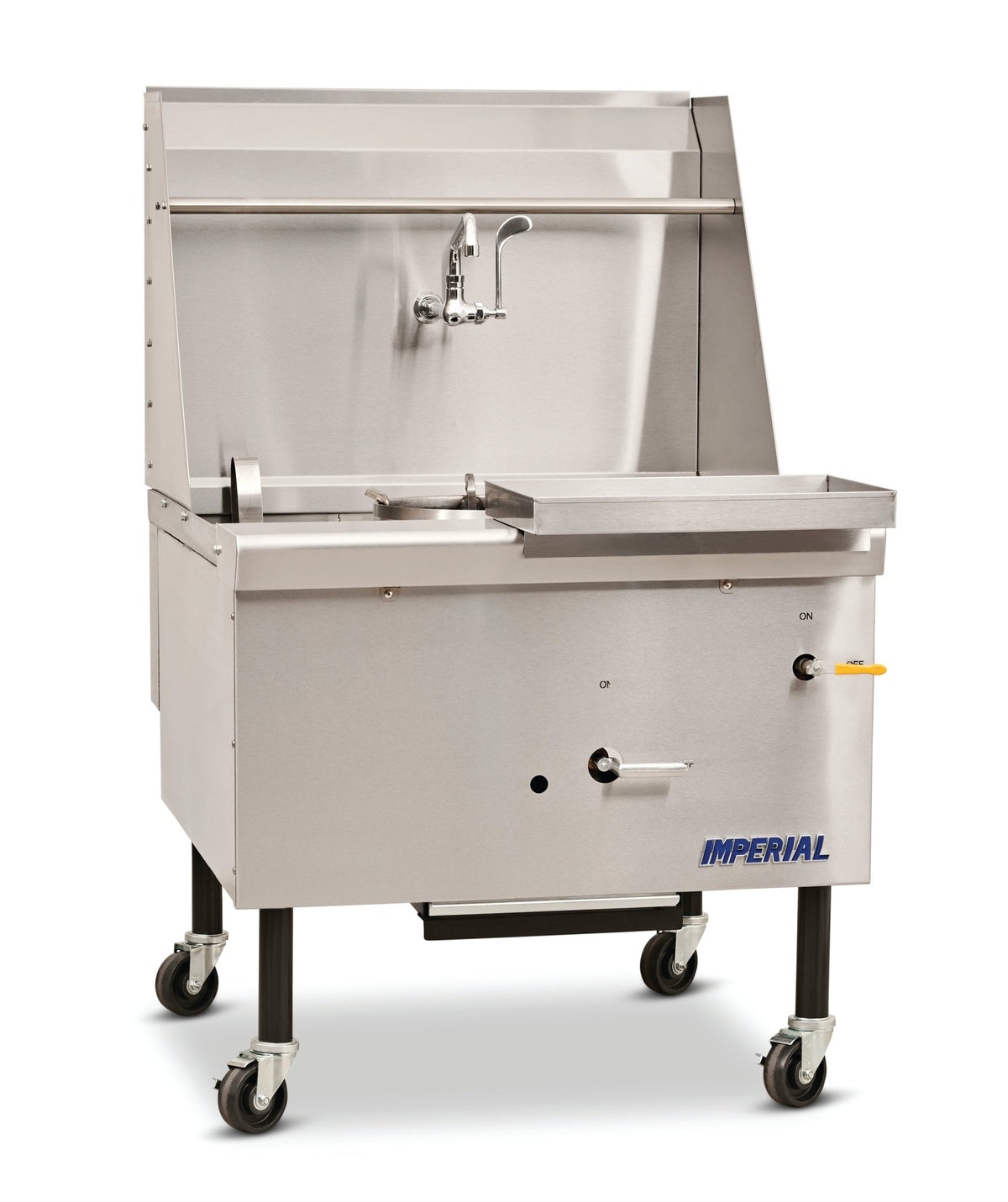

Imperial ICRA-1 Specialty Equipment, Chinese Range, 1 Hole Wok Range, 125,000 BTU

The Imperial ICRA-1 is a gas wok (Chinese) range. It is rated at 125,000 BTU total input and runs on natural gas or liquid propane.

High-Heat Wok Cooking

Jet burners under each wok opening deliver the very high heat that stir-fry and wok hei require.

A water-cooled top and faucet keep the cooking surface manageable and make rinsing woks fast.

Why Operators Choose It

• Construction: Stainless steel front, sides, top, landing ledge, high backsplash and pipe rack.
• Temperature control: Water cooled top and built in drain system help control stove top temperature.
• Controls: Choice of automatic or manually controlled Chinese swing faucet.
• Burners: Manually controlled Chinese swing faucet is located between holes to avoid intense burner heat.
• Standard models available with up to eight burners. Four burner types are available, see Optional Accessories below for burner types.
• Knee level “L" shaped handle on jet burners conveniently adjusts gas keeping hands free for cooking.
• Easy cleaning: Options like stacking steam pans, removable steam tanks and soup pot holders may be used to customize the Chinese Gas Range for specific cooking needs.

Ideal For

Chinese and Asian restaurants and any kitchen running high-heat wok stations.

Specifications

Installation & Utility Requirements

Gas connection: 1" inlet.

Water: 1/2" cold water line.

A floor drain or drain connection is required.

Install by a qualified technician per local codes and the Imperial installation manual.

Warranty

1 Year Parts and Labor limited warranty from Imperial.

Download the Imperial ICRA-1 spec sheet (PDF)

Specifications per Imperial data; subject to change by the manufacturer.
