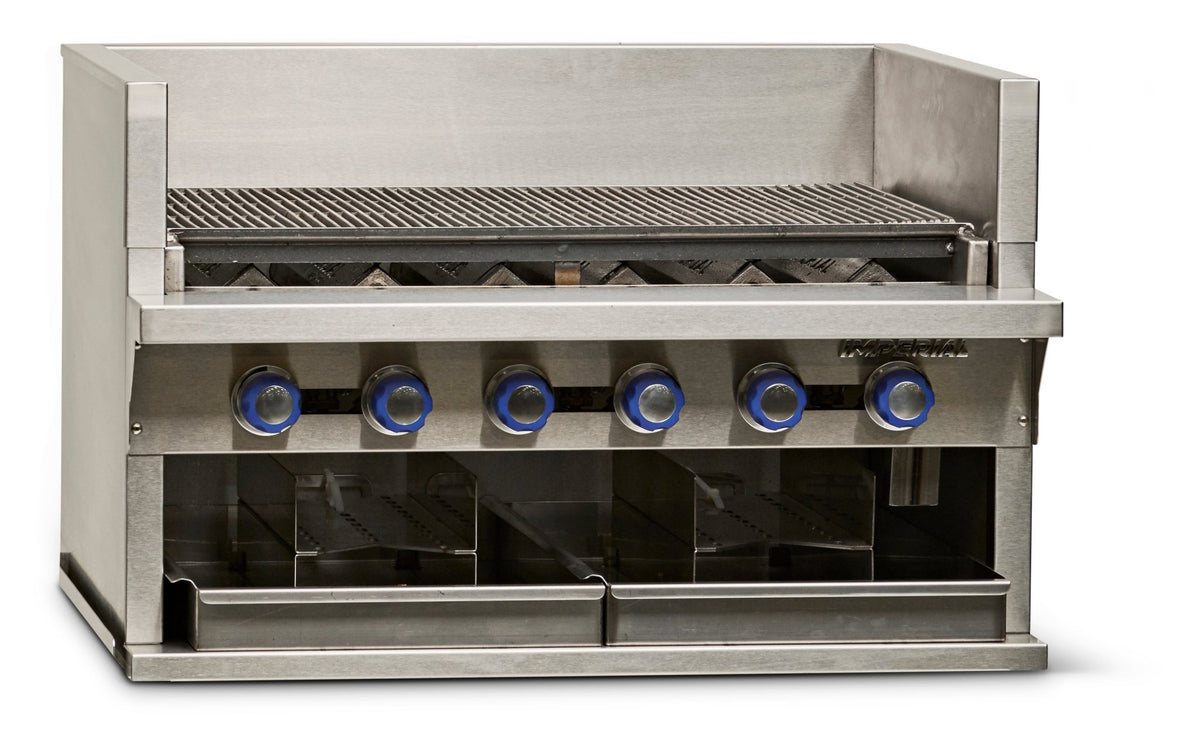

Imperial IABA-36 Radiant Smoke Broiler, 36" Wide With 9 Bar Grates And High Side Splash Guard, 120,000 BTU

The Imperial IABA-36 is a 36" gas charbroiler with 9 bar grates and high side splash guard. It is rated at 120,000 BTU total input and runs on natural gas or liquid propane.

Char-Grilled Flavor and Heat Zones

Individually controlled burners on close centers let cooks set hot and moderate zones across the grate, so steaks, chicken and vegetables can grill side by side.

Drippings hit the radiants and flash into smoke for classic char-broiled flavor, while a full-width drip pan and removable grease can keep cleanup manageable.

Why Operators Choose It

• Burners: Individually controlled 20,000 BTU/hr. (6 KW) stainless steel burners located every 5" with individual controls.
• Removable, reinforced cast iron radiants prevent clogging of burners and provide even broiling.
• Construction: Heavy duty cast iron top grates provide attractive char-broiler markings.
• Easy cleaning: Top grates are in sections to remove easily and safely for cleaning without the need for special tools.
• Stainless steel front, sides and landing ledge with welded and polished seams for cleanability and a professional look.
• Use logs or wood chips to infuse a smoky flavor.
• Slide out stainless steel log holders and ash pans provide easy accessibility.

Ideal For

Steakhouses, restaurants, bars and hotels grilling steaks, burgers, chicken, seafood and vegetables.

Specifications

Installation & Utility Requirements

Gas connection: 3/4" inlet.

Minimum clearances per Imperial: 6" sides, 8" back, 20" top.

Install by a qualified technician per local codes and the Imperial installation manual.

Warranty

1 Year Parts and Labor limited warranty from Imperial.

Download the Imperial IABA-36 spec sheet (PDF)

Specifications per Imperial data; subject to change by the manufacturer.
