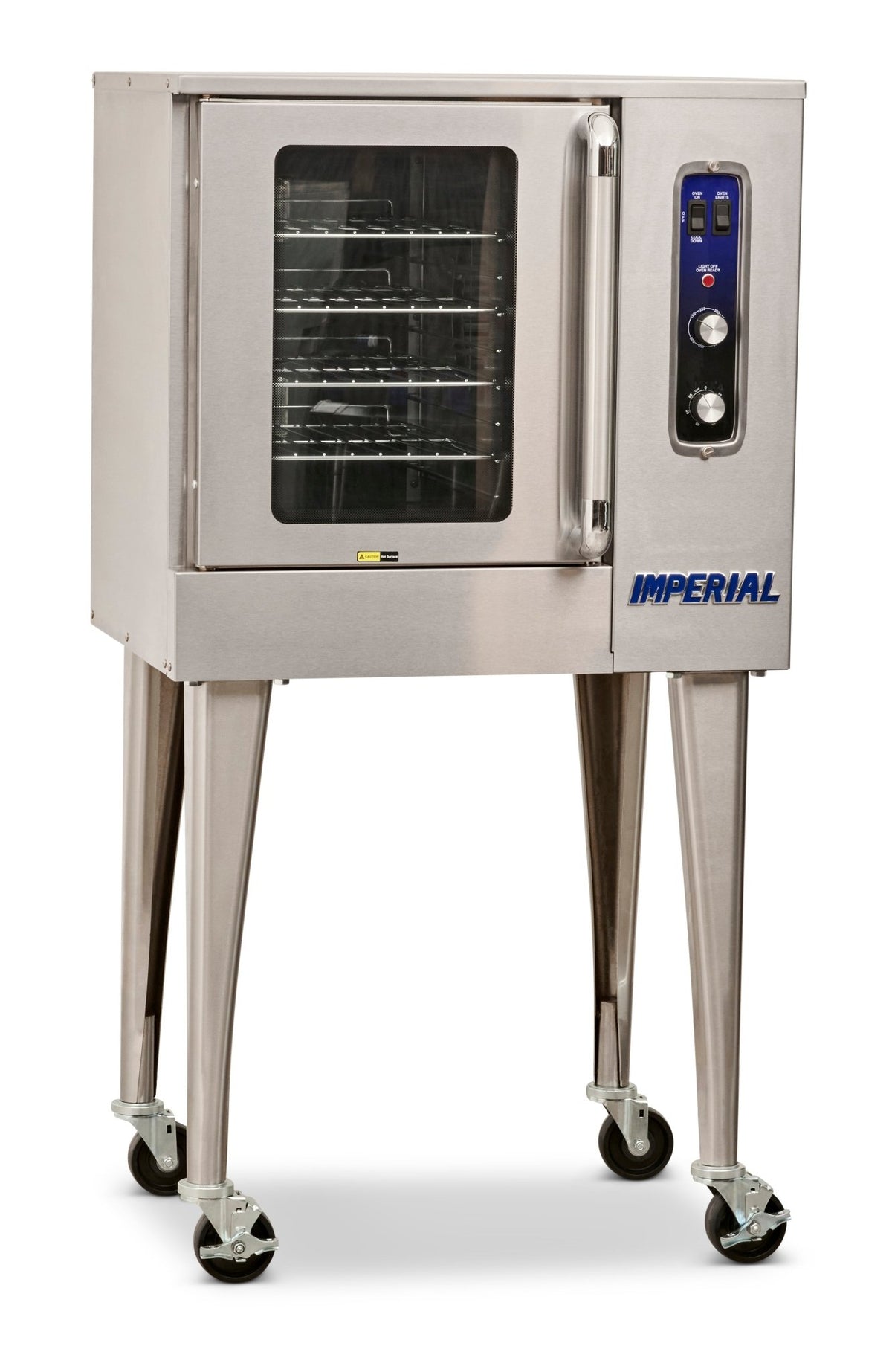

Imperial HSICVE-1 Electric Half Size Convection Oven With (4) Oven Racks And Stainless Steel Built, 5-7.5 kW
The Imperial HSICVE-1 is an electric convection oven with (4) oven racks and stainless steel built. It is rated at 5-7.5 kW and is offered for 208V / 1-Phase, 208V / 3-Phase, 240V / 1-Phase, 240V / 3-Phase or 480V / 3-Phase service.
Fan-Driven Even Baking
A two-speed blower moves heated air evenly around the cavity for baking, roasting and reheating with shorter cook times.
Electric heat means no gas connection, and a porcelain interior helps browning and cleanup.
Why Operators Choose It
- Baffle ensures optimal heat distribution throughout the oven.
- Power: 1/2 hp fan motor for high production cooking.
- Easy cleaning: Porcelainized oven interior for easy cleaning and provides better browning.
- Coved oven cavity corners clean easily and quickly.
- Interior oven light and large window for viewing product at a glance.
- Easily removable rack guides provide open access for cleaning.
- Construction: Stainless steel sides, top and legs are standard.
Ideal For
Restaurants, bakeries, schools and institutions with electric service.
Specifications
| Model | HSICVE-1 |
| Type | Electric half size convection oven with (4) oven racks and stainless steel built |
| Electrical | 208V, 1-phase (27 A); 208V, 3-phase (17 A); 240V, 1-phase (24 A); 240V, 3-phase (15 A); 480V, 3-phase (8 A) |
| Power | 5 kW / 5.5 kW / 7.5 kW |
| Dimensions (W x D x H) | 30" x 24" x 28" |
| Product weight | 233 lb |
| Certifications | ENERGY STAR |
| Country of origin | United States |
| Warranty | 1 Year Parts and Labor |
Installation & Utility Requirements
Electrical service by option (field wired per local code unless noted):
| Electrical | Amps | kW |
|---|---|---|
| 208V / 1-Phase | 27 | 5 |
| 208V / 3-Phase | 17 | 5 |
| 240V / 1-Phase | 24 | 5 |
| 240V / 3-Phase | 15 | 5.5 |
| 480V / 3-Phase | 8 | 5 |
Minimum clearances per Imperial: 6" sides, 8" back, 20" top.
Install by a qualified technician per local codes and the Imperial installation manual.
Warranty
1 Year Parts and Labor limited warranty from Imperial.
Download the Imperial HSICVE-1 spec sheet (PDF)
Specifications per Imperial data; subject to change by the manufacturer.
