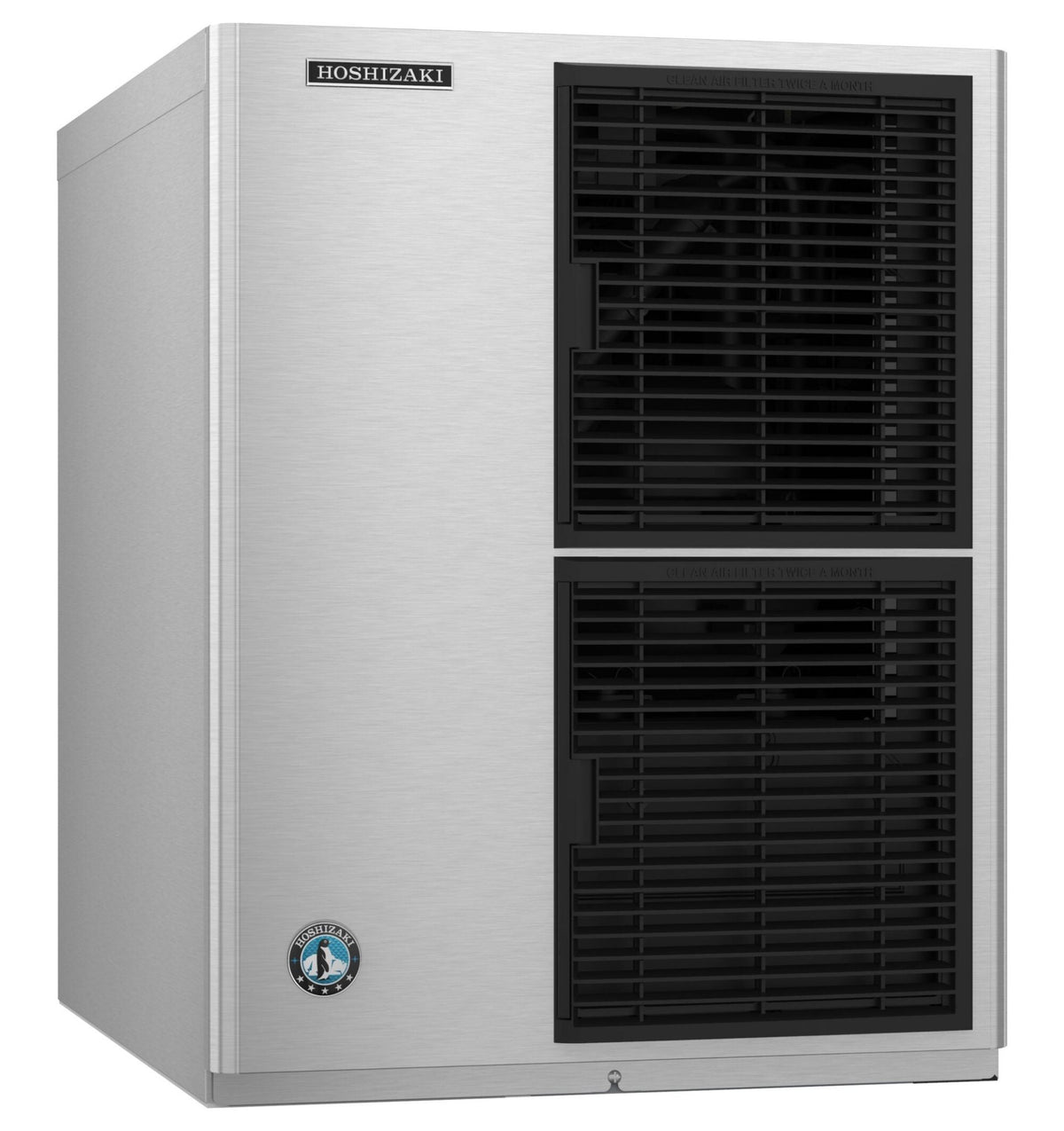

Hoshizaki KM-522MAK Crescent Cube Modular Ice Machine Head, Air-Cooled, 548 lbs/Day
Regular price
$4,805.00
Sale price
$4,805.00
Regular price
$9,610.00
Save 50%
Shipping calculated at checkout.
The Hoshizaki KM-522MAK is an air-cooled slim-line modular ice machine head that produces up to 548 lbs of crescent cube ice per day, a strong fit for bars, restaurants and hotels. Place it on a compatible Hoshizaki bin or dispenser (sold separately).
Key Features
- Produces up to 548 lbs of crescent cube ice per 24 hours
- Stainless steel double-sided evaporator for hard, clear crescent cubes
- CycleSaver™ design for energy and water efficiency
- EverCheck™ alert system flags issues before they become repairs
- Factory-installed ultrasonic bin control
- CleanAssist simple, one-hour cleaning process
- Self-diagnostic programming adjusts to changing conditions
- Snap-fit parts for easy cleaning
- Removable air filters
- Mount two units side-by-side for 2x the ice production
- Durable stainless steel exterior
- Environmentally friendly R290 hydrocarbon refrigerant
- ENERGY STAR® qualified
Specifications
| Model | KM-522MAK |
| Ice type | Crescent Cube |
| Ice production | Up to 548 lbs per 24 hours |
| Storage capacity | Bin sold separately |
| Condenser | Air-Cooled |
| Dimensions | 22" W x 27-3/8" D x 28" H |
| Electrical | 115v/60/1, 10.8 A (20 A max fuse), hardwired |
| Refrigerant | R290 |
| Heat rejection | 8,400 BTU/hr |
| Energy use | 5.15 kWh per 100 lbs @ 90/70 |
| Potable water use | 17 gal per 100 lbs @ 90/70 |
| Water inlet / drain | 1/2″ FPT inlet, 3/4″ FPT drain |
| Operating range | Ambient 45 – 100°F; water 45 – 90°F; 10 – 113 psig |
| Shipping weight | 175 lbs |
| Warranty | Three Years: Parts & Labor warranty on entire machine; Five Years: Parts warranty on Compressor, air-cooled condenser coil |
| Certifications | NSF, UL, ENERGY STAR |
Specifications per HOSHIZAKI America data; subject to change by the manufacturer.
