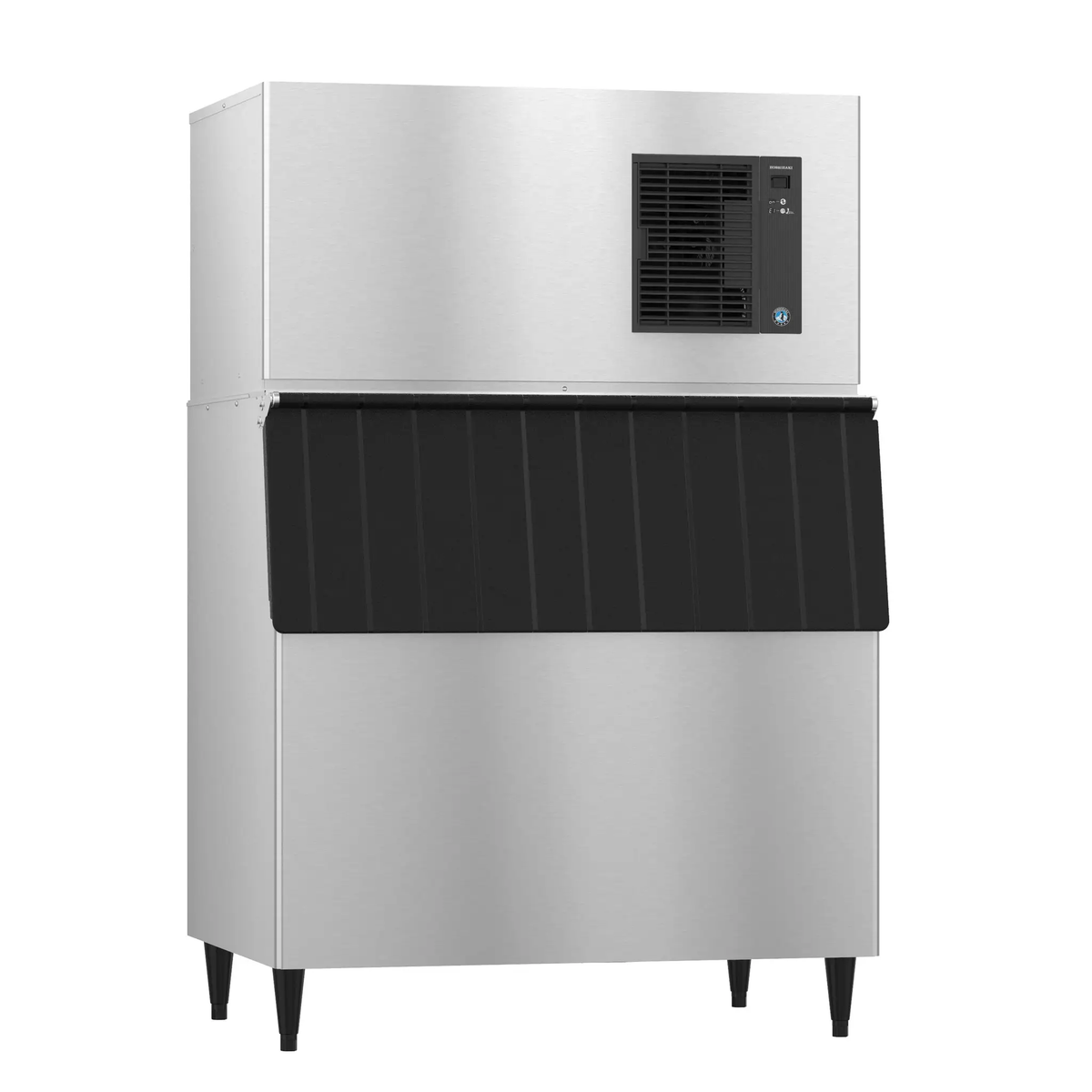

Hoshizaki IM-500SAB Square Cube Stackable Ice Machine Head, Air-Cooled, 489 lbs/Day
Regular price
$6,205.00
Sale price
$6,205.00
Regular price
$12,410.00
Save 50%
Shipping calculated at checkout.
The Hoshizaki IM-500SAB is an air-cooled stackable ice machine head that produces up to 489 lbs of square cube ice per day, a strong fit for bars and beverage service. Place it on a compatible Hoshizaki bin or dispenser (sold separately).
Key Features
- Produces up to 489 lbs of square cube ice per 24 hours
- Individual square cubes that melt slowly with minimal dilution
- EverCheck™ alert system flags issues before they become repairs
- Stackable: stack 3 units for 3x the ice production
- Durable stainless steel exterior
- R-404A refrigerant
Specifications
| Model | IM-500SAB |
| Ice type | Square Cube |
| Ice production | Up to 489 lbs per 24 hours |
| Storage capacity | Bin sold separately |
| Condenser | Air-Cooled |
| Dimensions | 44" W x 27-5/8" D x 21-3/4" H |
| Electrical | 115v/60/1, 11.5 A (20 A max fuse), hardwired |
| Refrigerant | R-404A |
| Heat rejection | 4,500 BTU/hr |
| Energy use | 5.8 kWh per 100 lbs @ 90/70 |
| Potable water use | 23 gal per 100 lbs @ 90/70 |
| Water inlet / drain | 1/2″ FPT inlet, 3/4″ FPT drain |
| Operating range | Ambient 45 – 100°F; water 45 – 90°F; 10 – 113 psig |
| Compatible bins / dispensers | B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650 (sold separately) |
| Shipping weight | 230 lbs |
| Warranty | Three Years: Parts & Labor warranty on entire machine. Five Years: Parts warranty on air-cooled condenser coil. |
| Certifications | NSF, cETLus, UL |
Specifications per HOSHIZAKI America data; subject to change by the manufacturer.
